RP2

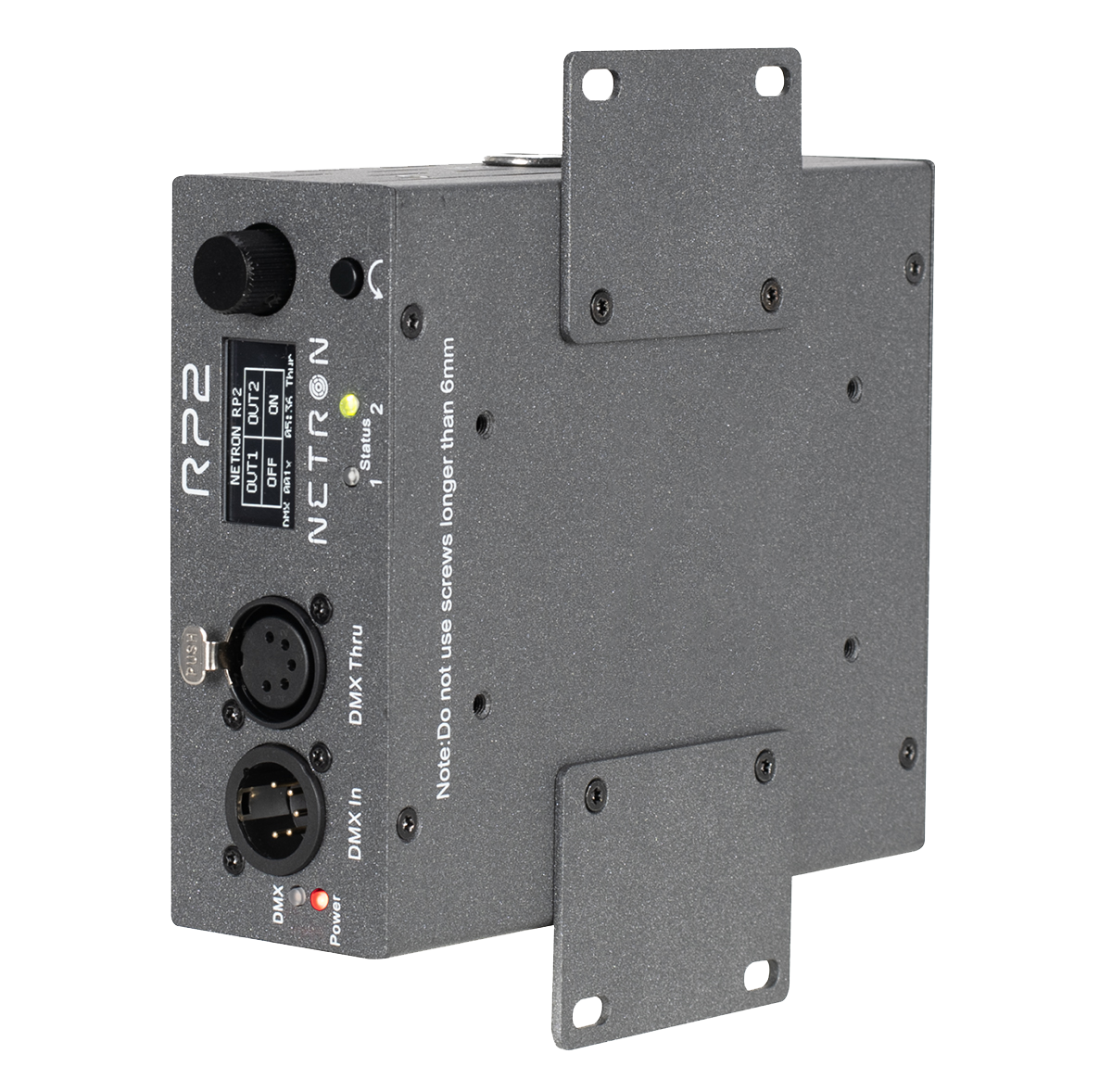

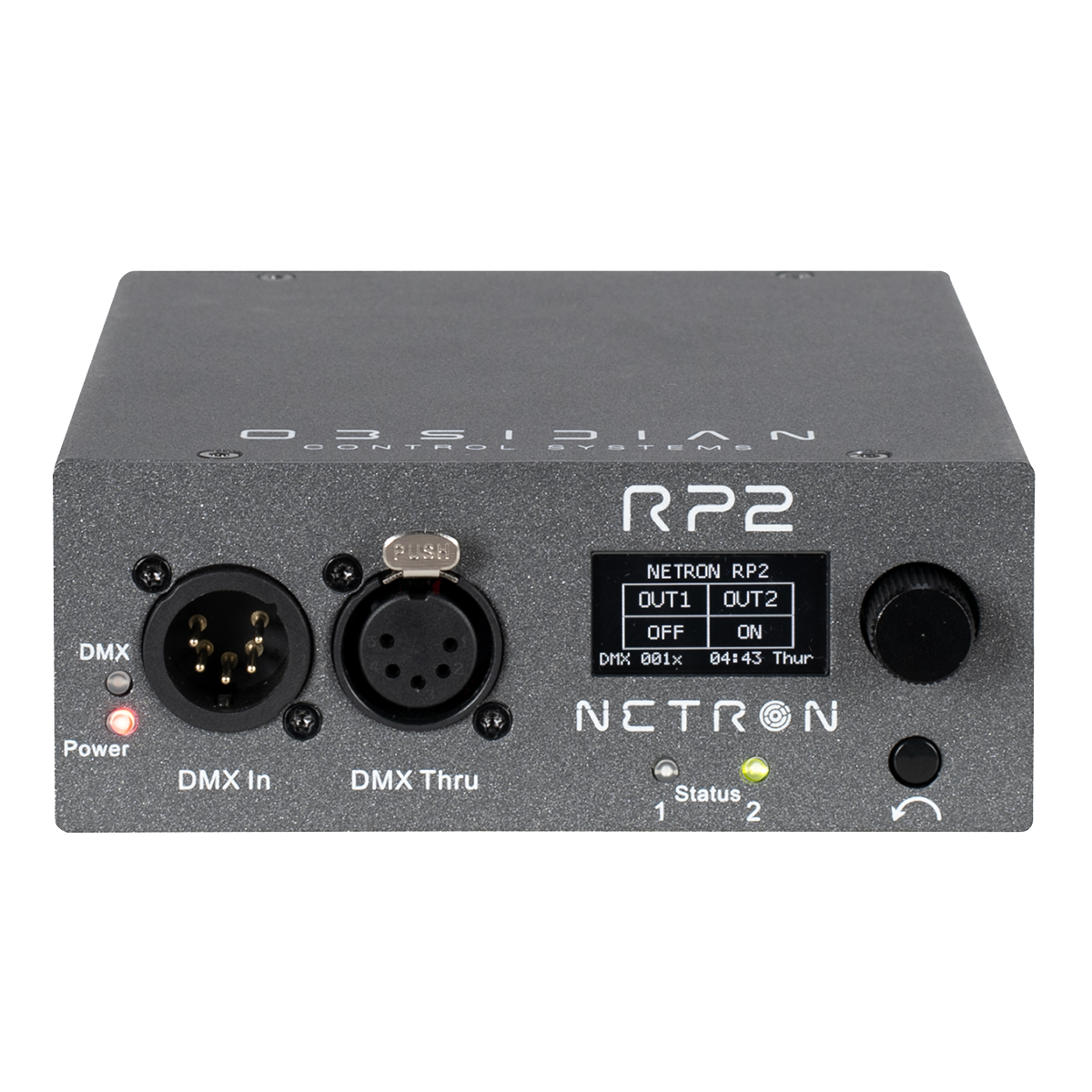

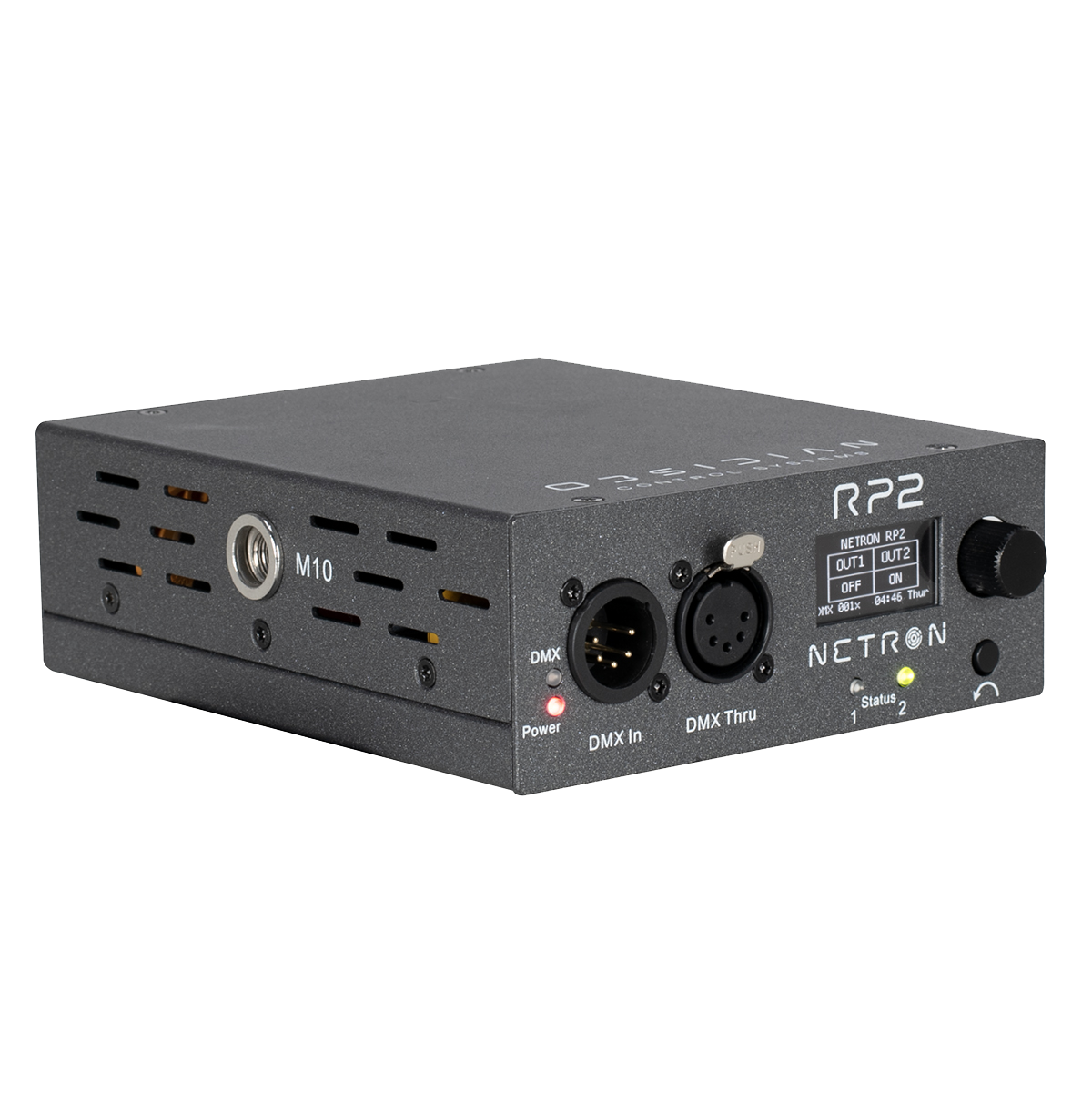

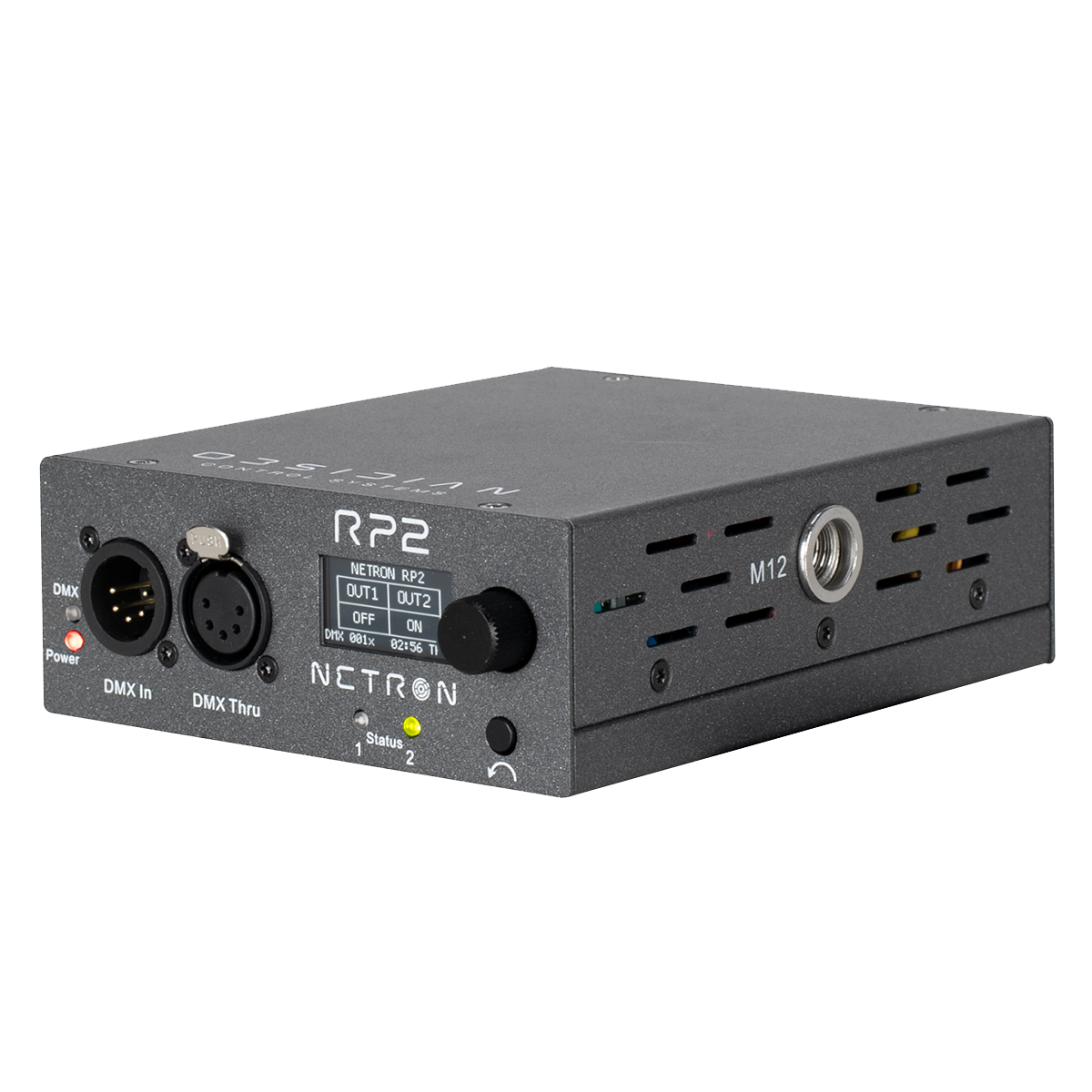

The device is configurable via the integrated OLED display and encoder with real time status and power consumption feedback.

RP2 features optional smart power sequencing and DMX traffic detection to allow complete automation of fixture power based on DMX status. Simply turn the console on or off, and the system will follow along.

An internal clock allows standalone use of the RP2 or automating the power outputs to specific days and times. For example, a system could be turned off every day at midnight to prevent excessive power on time of devices.

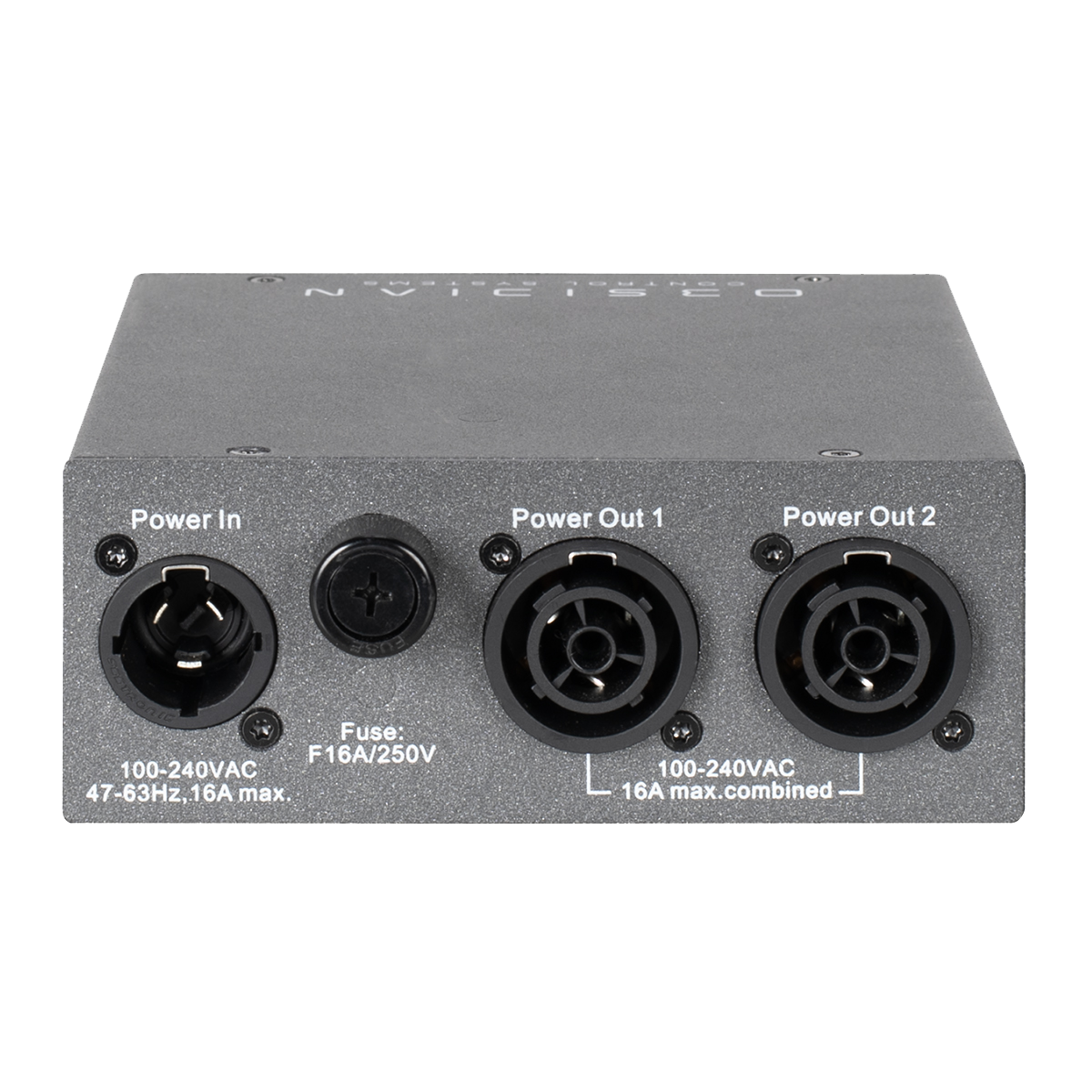

Two independent power outputs are controlled by high current dual pole relays, ensuring complete removal of power from the circuit.

Current sensing per output allows to monitor power consumption on the display, and the RP2 keeps track of peak power consumption of the ports. The power information can be accessed on the display or remotely monitored over the RDM protocol. Additionally, actual, highest and lowest voltage received are available for diagnostics.
