RDM 6XL

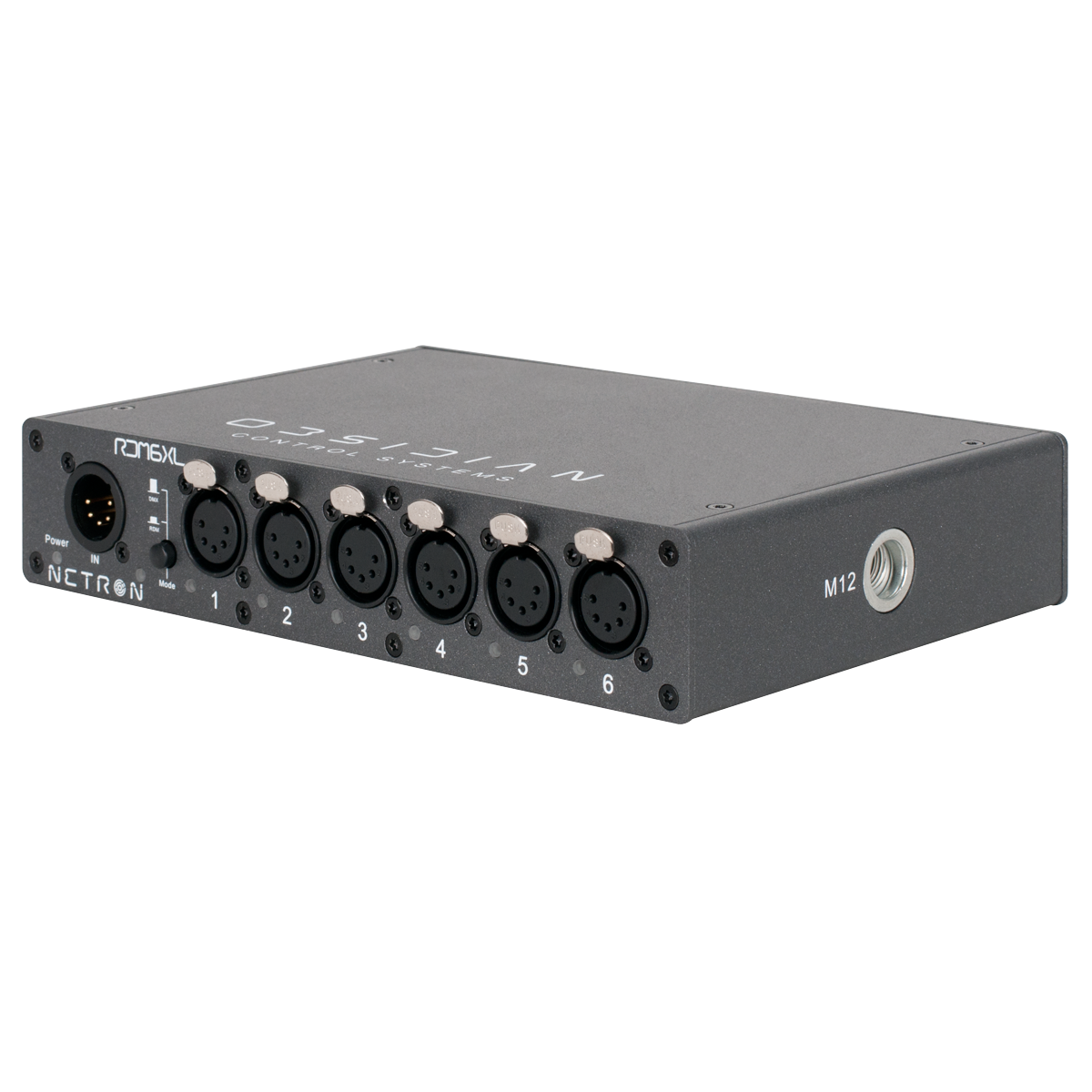

The Netron RDM 6XL is a rugged and compact DMX/RDM Splitter. Designed for live production and installations,it features six opto-isolated 5pin XLR outputs and flexible mounting options to cover any situation.
RDM 6XL
Sale price$0.00
RDM 6XL
The Netron RDM 6XL is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated 5pin XLR outputs and flexible mounting options to cover any situation.
Key Features
Specifications
Mounting
- Standalone

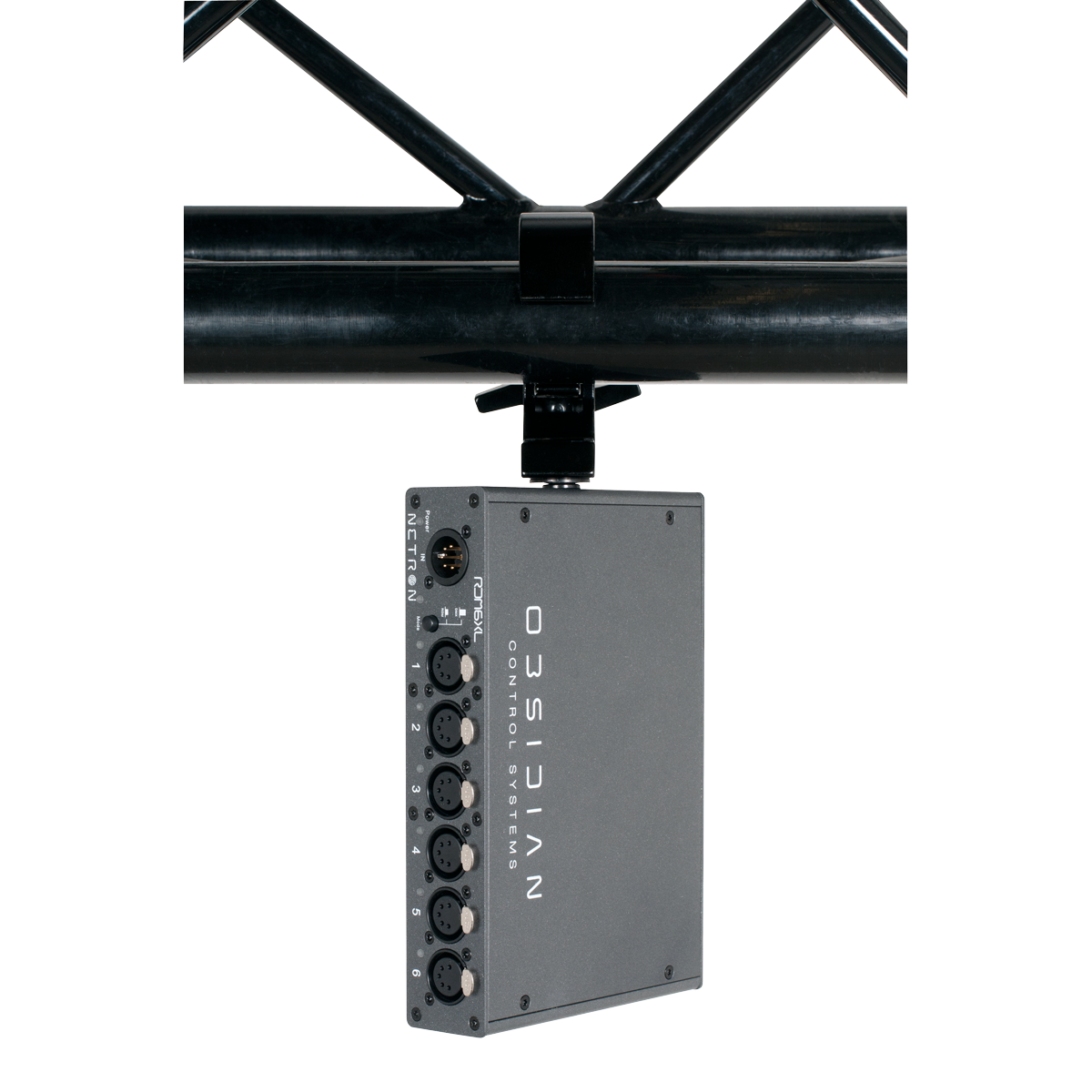

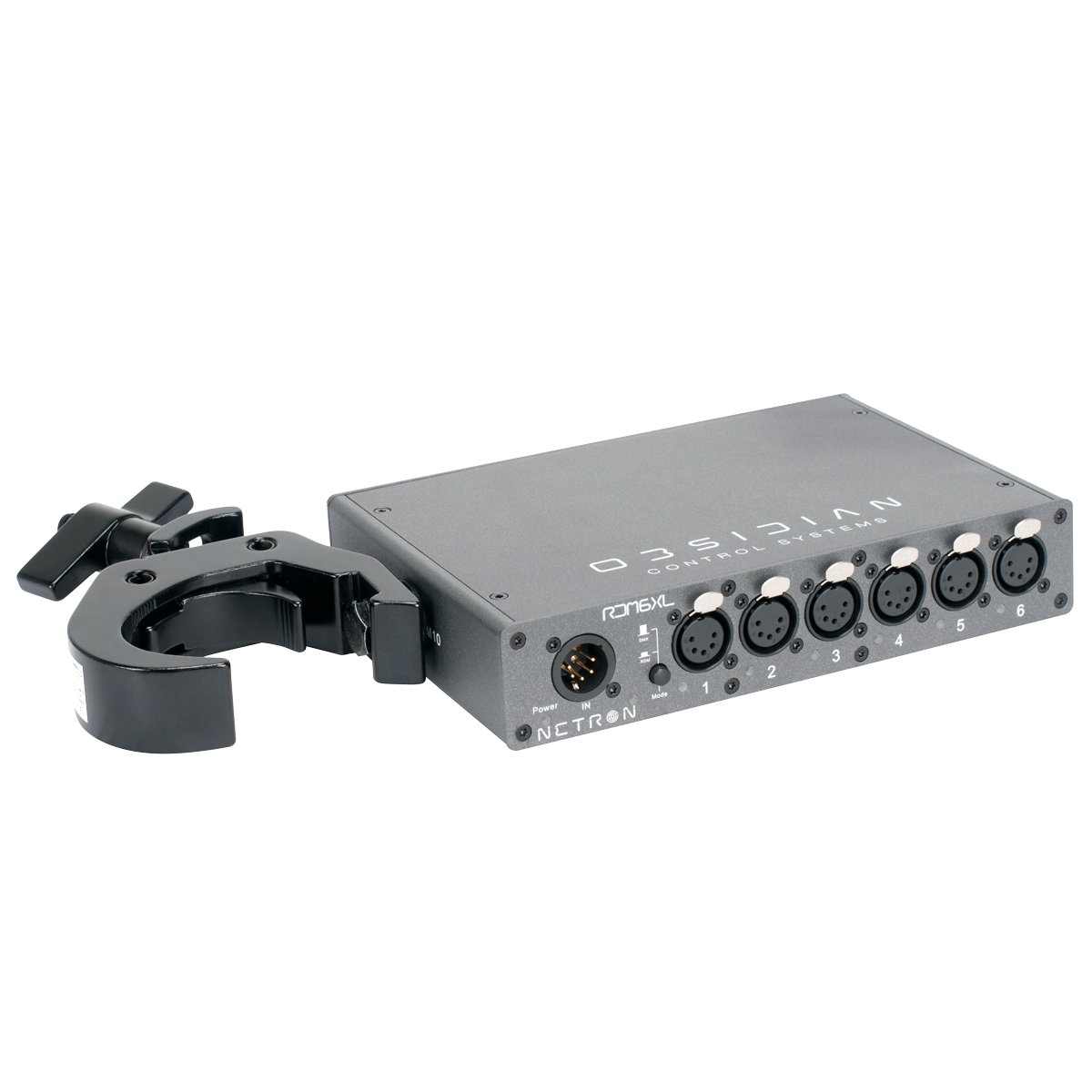

- Truss-mount (M10 or M12 mounting hole)

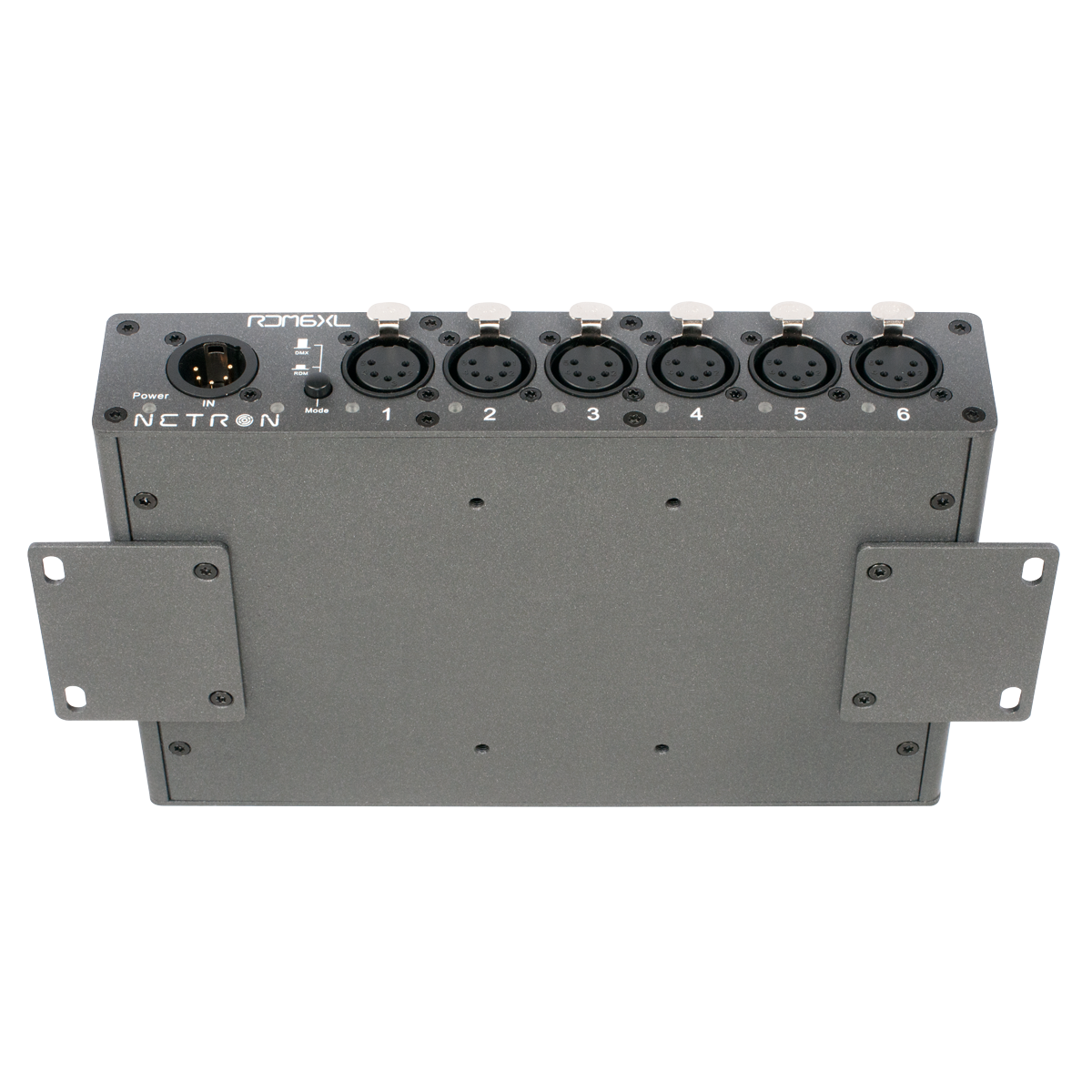

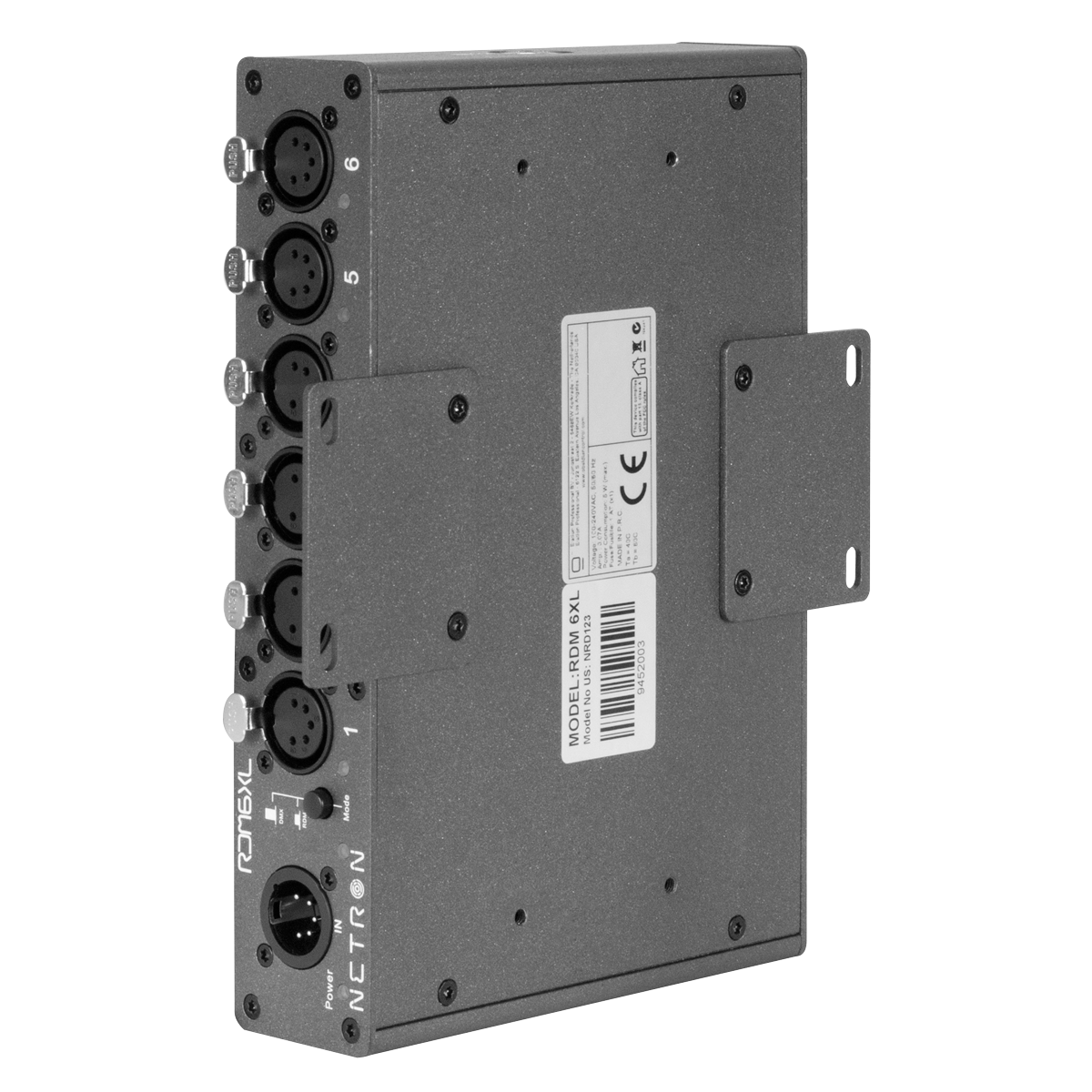

- Wall-mount horizontal or vertical (included)

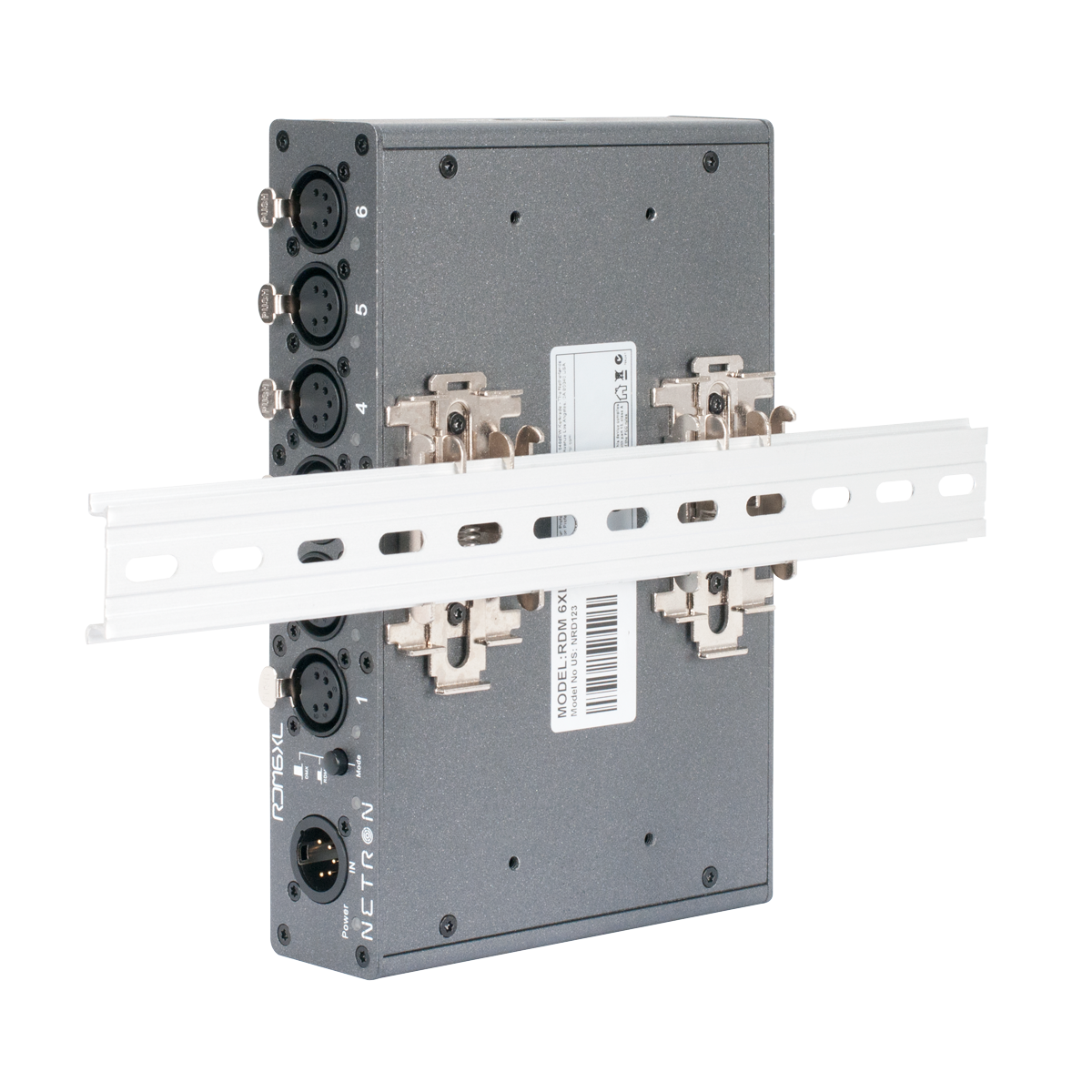

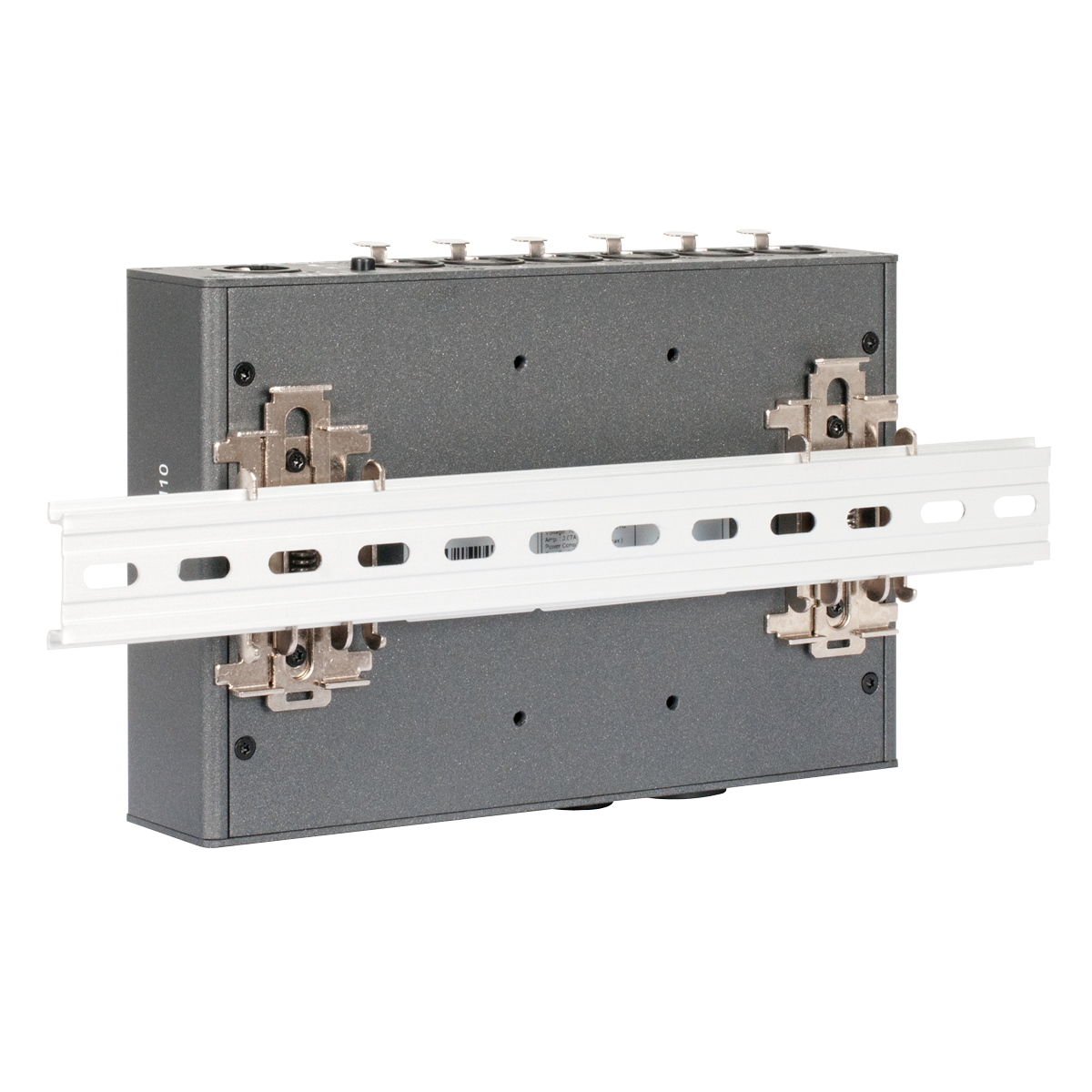

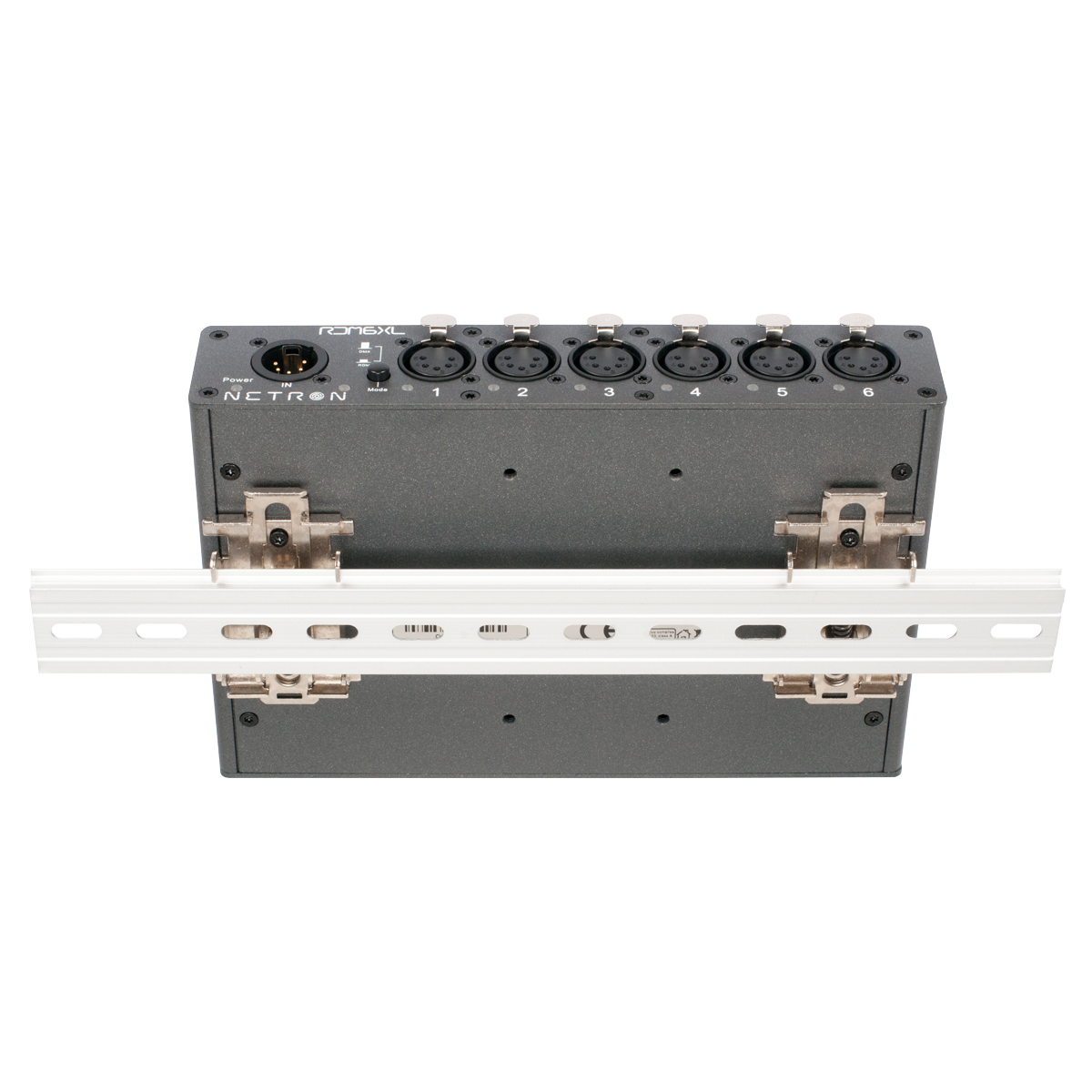

- DIN Rail horizontal or vertical (included)

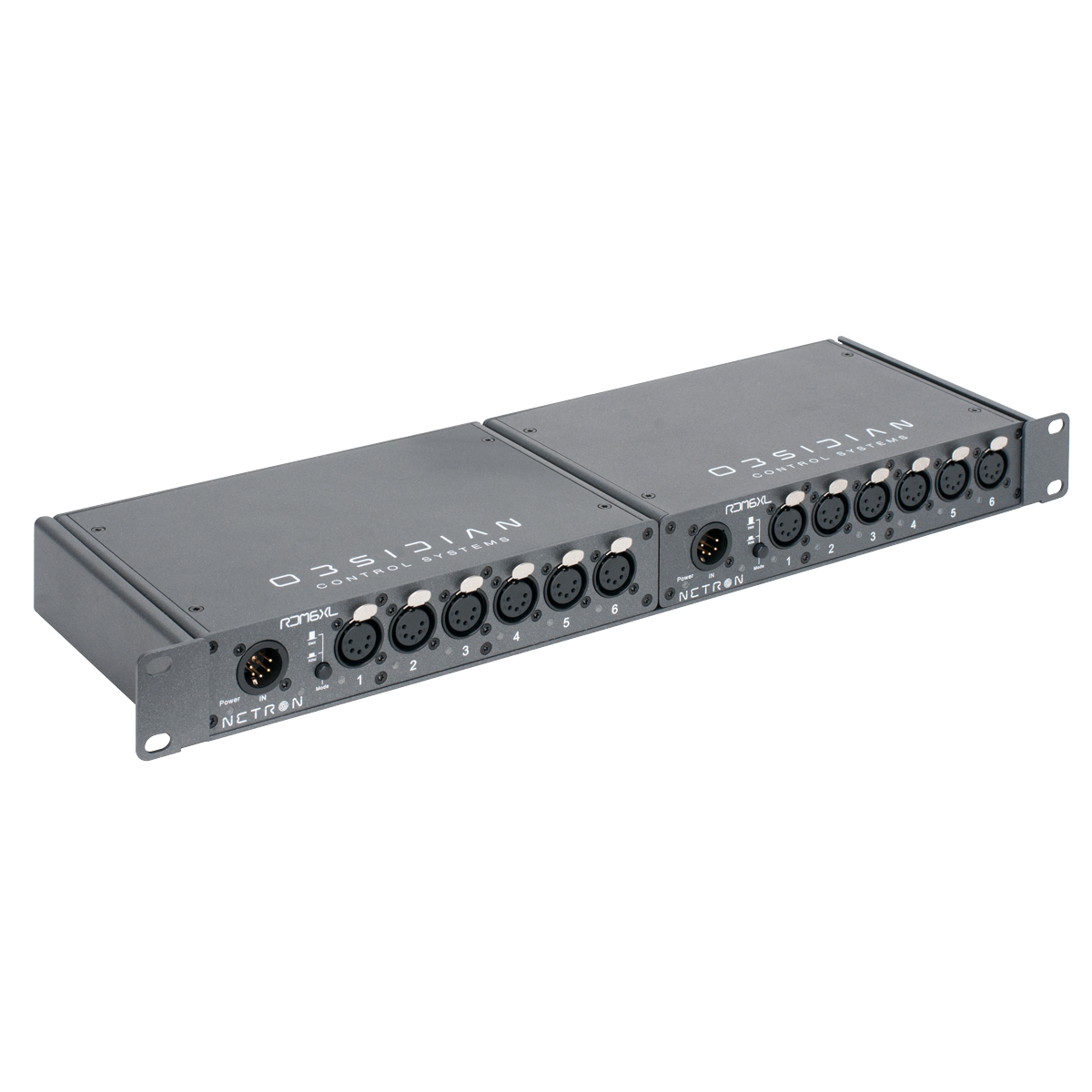

- Rack-mount option (requires NET Shelf)

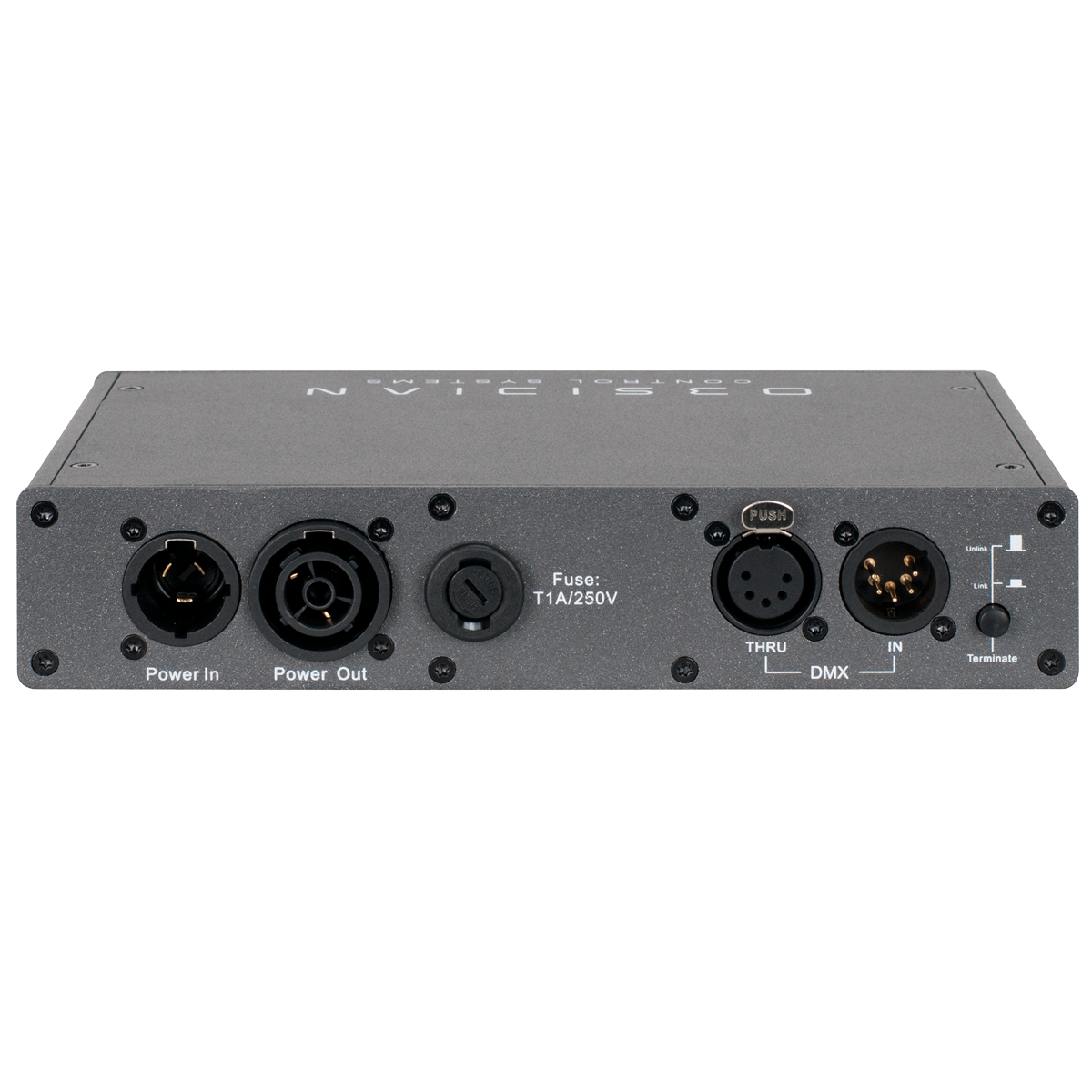

Connections
- 5pin DMX Input
- (6) 5pin Opto-Isolated DMX Outputs
- RDM Enable
- 5pin DMX Input (parallel with front)
- 5pin DMX Through
- Terminate
- Locking Power In/Thru
Specifications
- Length: 215 mm (8.5 in.)
- Width: 139 mm (5.5 in.)
- Height: 42 mm (1.65 in.)
- Weight: 1 kg (2.2 lbs)
- 100-240 V nominal, 50/60 Hz, 10W
- cETLus / CE / IP20
Ordering
- 1.5m Locking power cable (EU or US version)
- (2) Wallmount plates
- (2) DIN-Rail clamps
- US #: NRD123
- EU #: 1330000061
- Standalone
- Truss-mount (M10 or M12 mounting hole)
- Wall-mount horizontal or vertical (included)
- DIN Rail horizontal or vertical (included)
- Rack-mount option (requires NET Shelf)
- 5pin DMX Input
- (6) 5pin Opto-Isolated DMX Outputs
- RDM Enable
- 5pin DMX Input (parallel with front)
- 5pin DMX Through
- Terminate
- Locking Power In/Thru
- Length: 215 mm (8.5 in.)
- Width: 139 mm (5.5 in.)
- Height: 42 mm (1.65 in.)
- Weight: 1 kg (2.2 lbs)
- 100-240 V nominal, 50/60 Hz, 10W
- cETLus / CE / IP20
- 1.5m Locking power cable (EU or US version)
- (2) Wallmount plates
- (2) DIN-Rail clamps
- US #: NRD123
- EU #: 1330000061
Downloads
| Filename | Document type | File type |
|---|---|---|
| RDM6XL Installation Guide | Installation Guide | |
| RDM6XL Specification Sheet | Specification Sheet | |
| RDM6XL 3D Drawing | CAD Drawing | DWG |
