RDM 645
The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.
Key Features
(6) Locking RJ45 Ethernet DMX outputs DMX and RDM compliant Optically isolated ports Power / DMX Through connectors Powder-coated aluminum ½ rack housing
Specifications

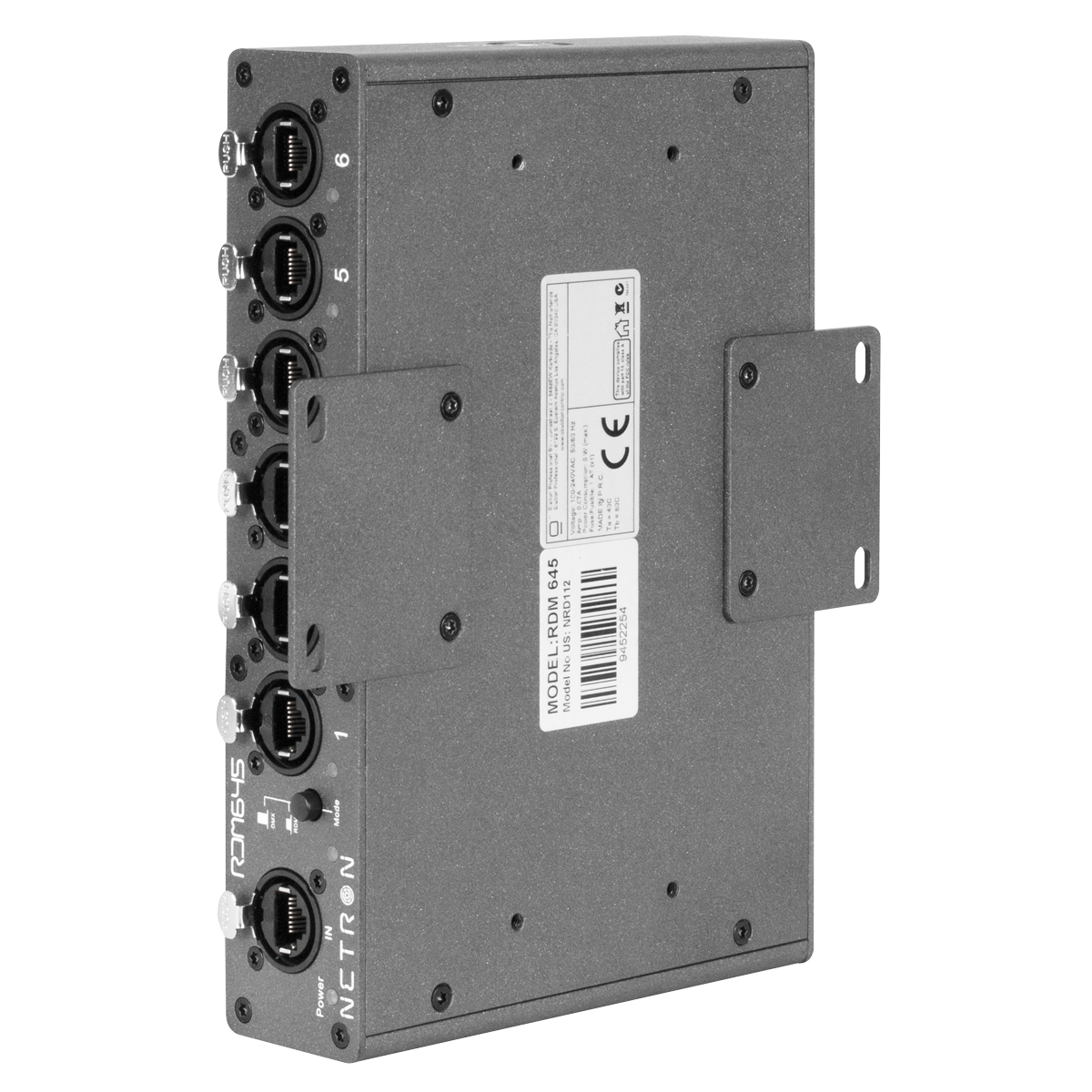

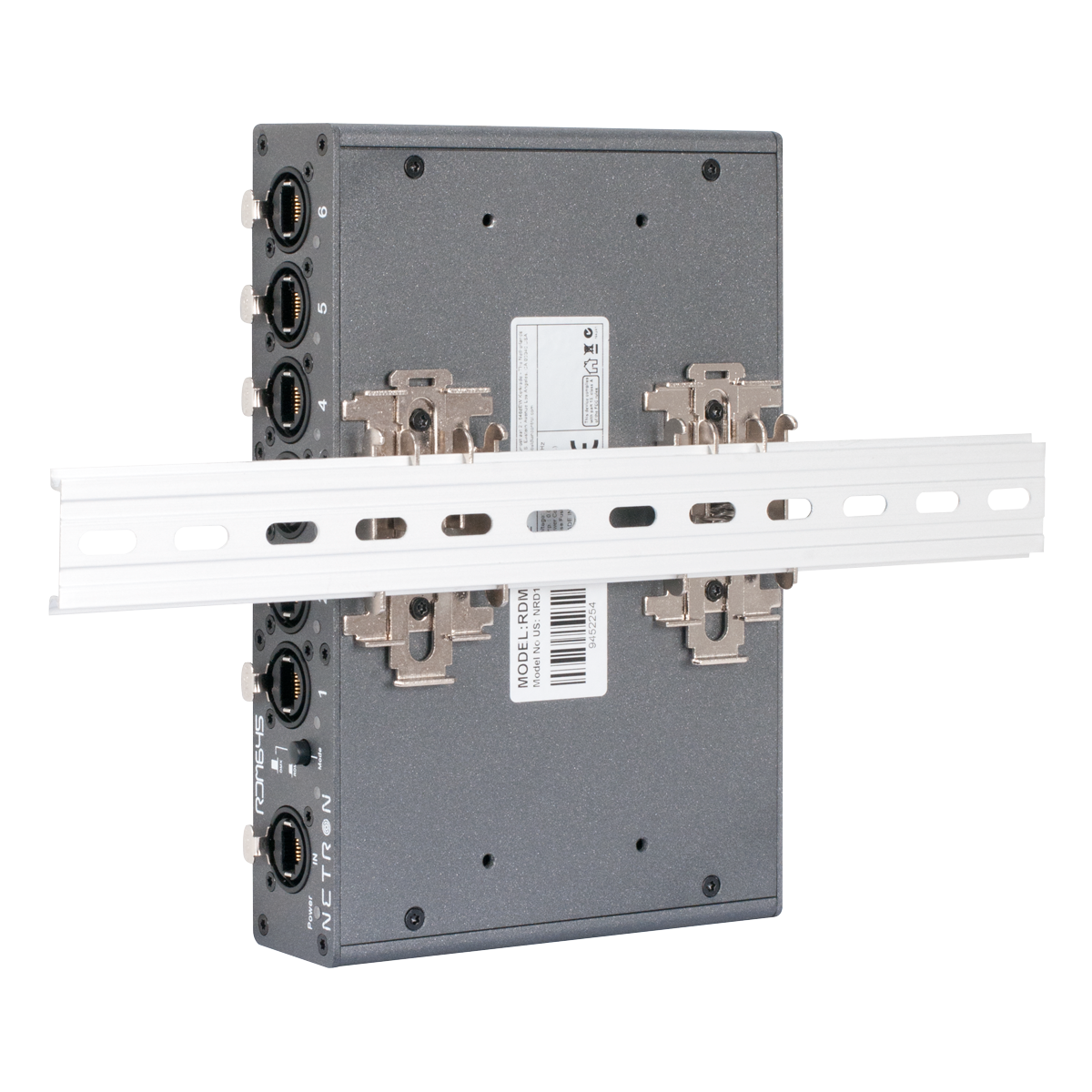

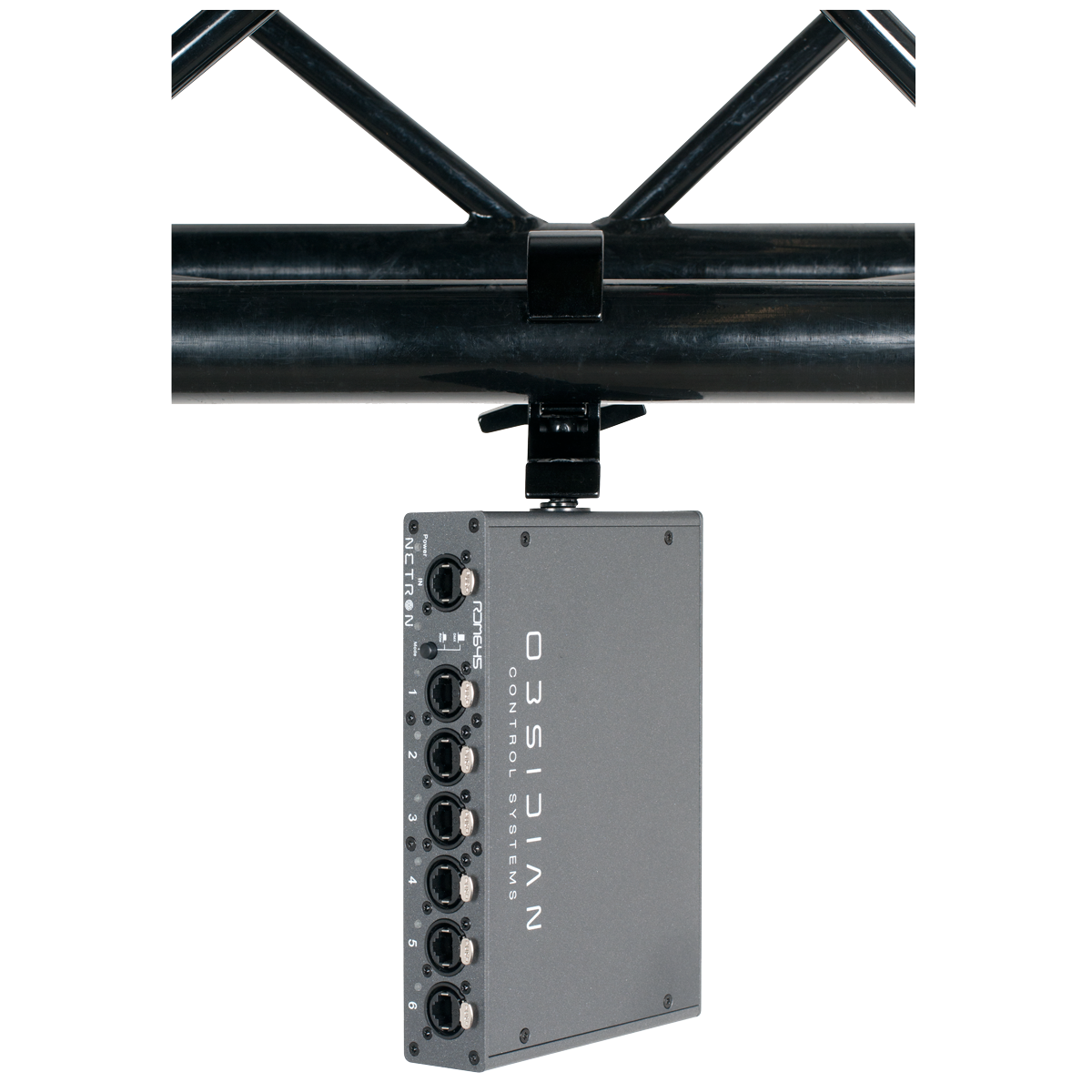

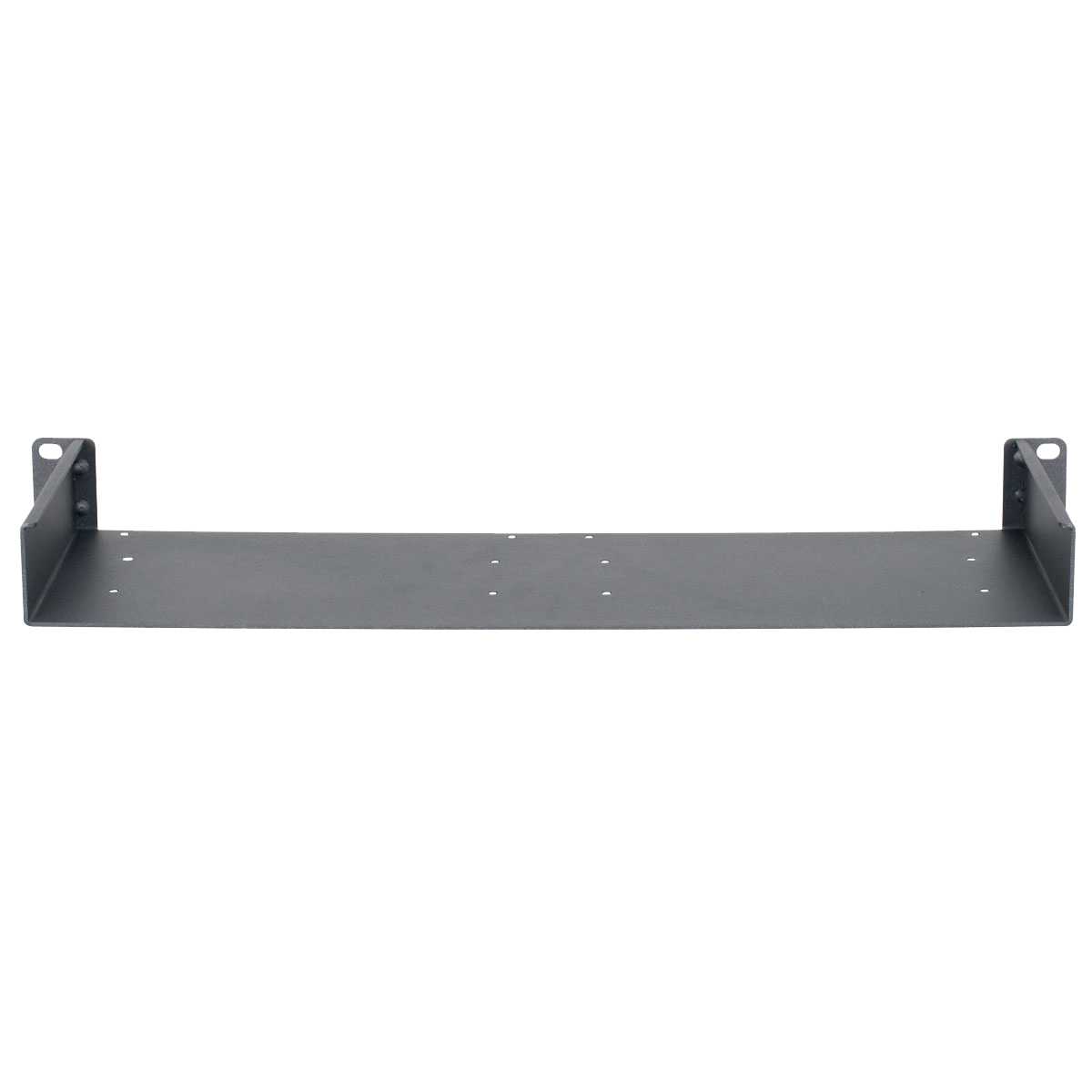

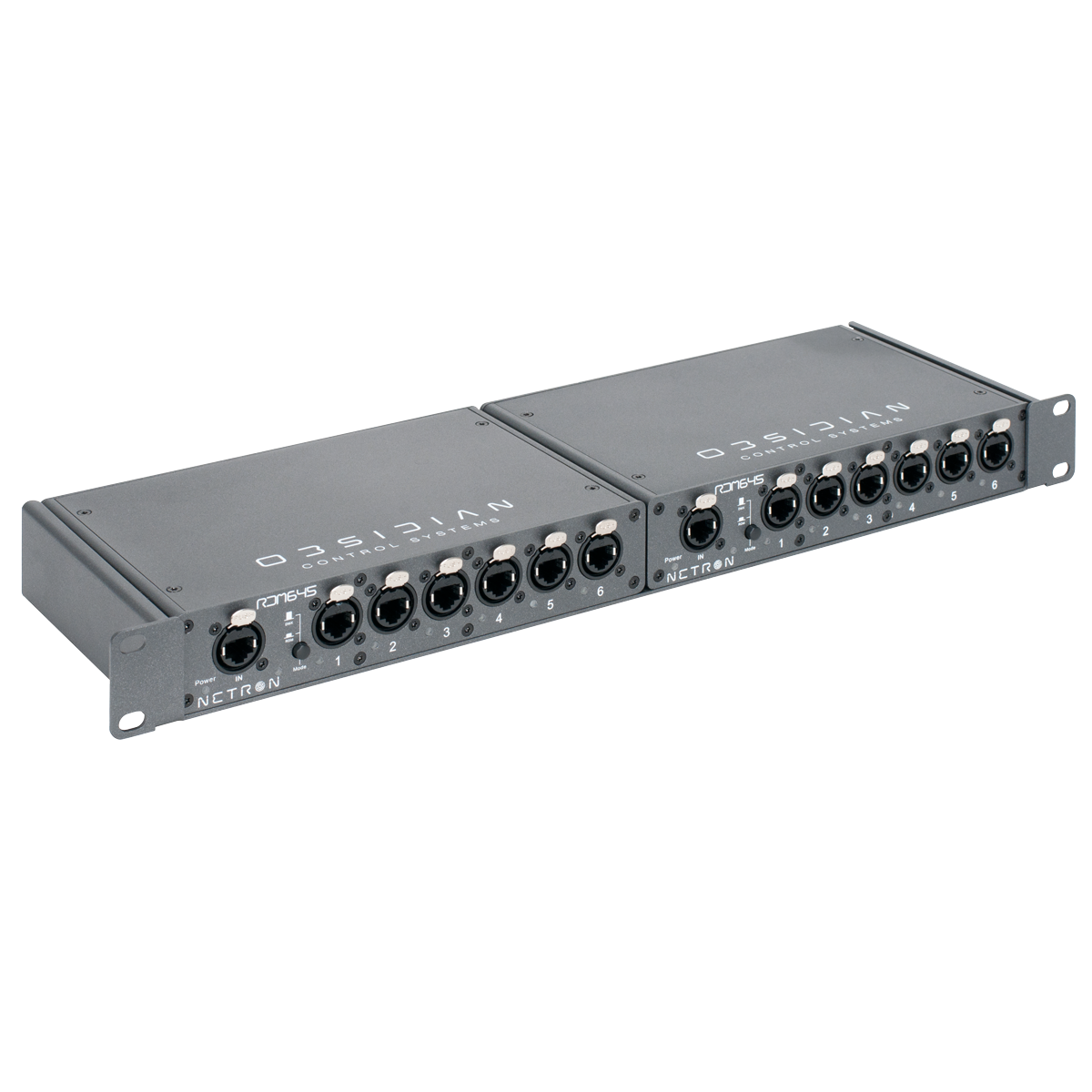

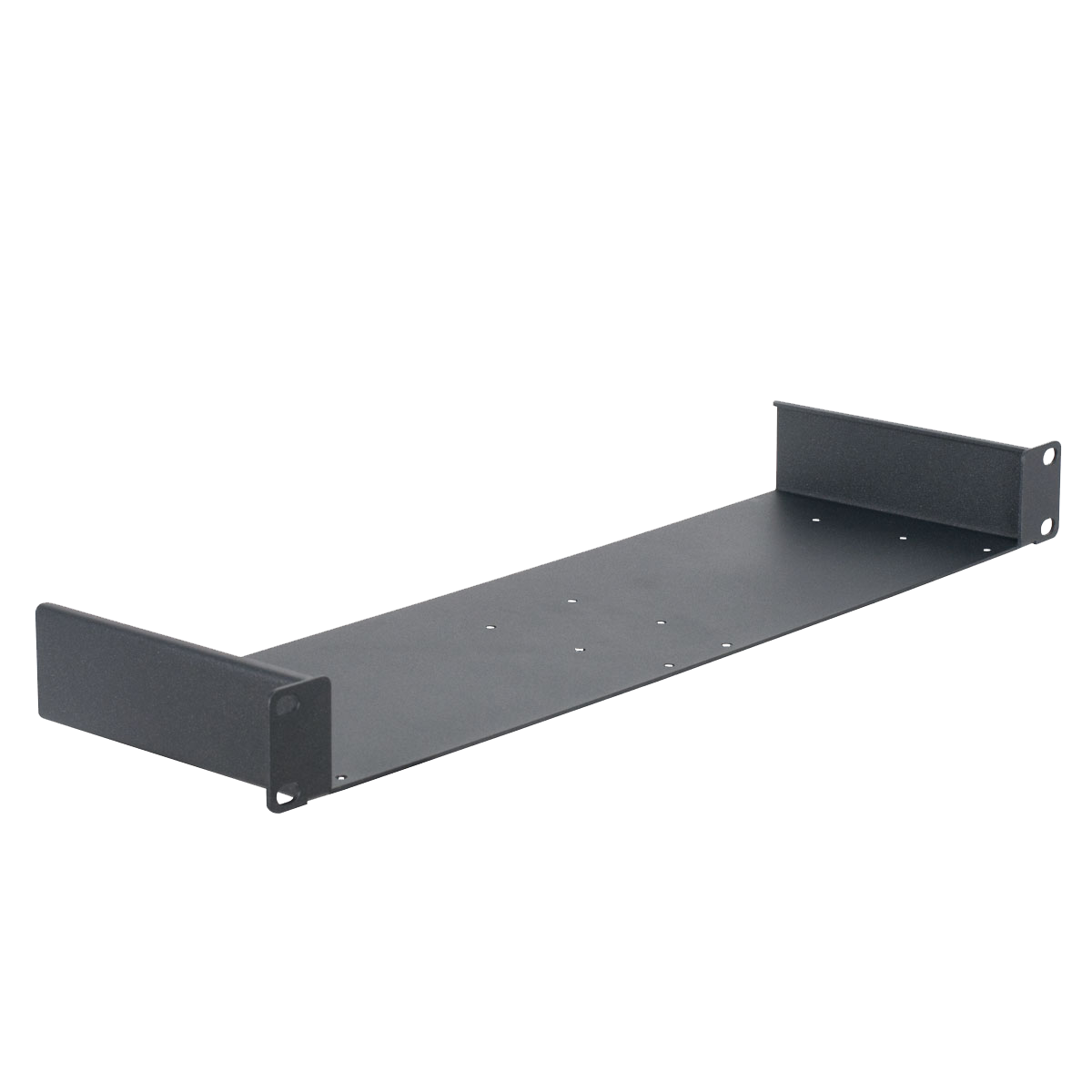

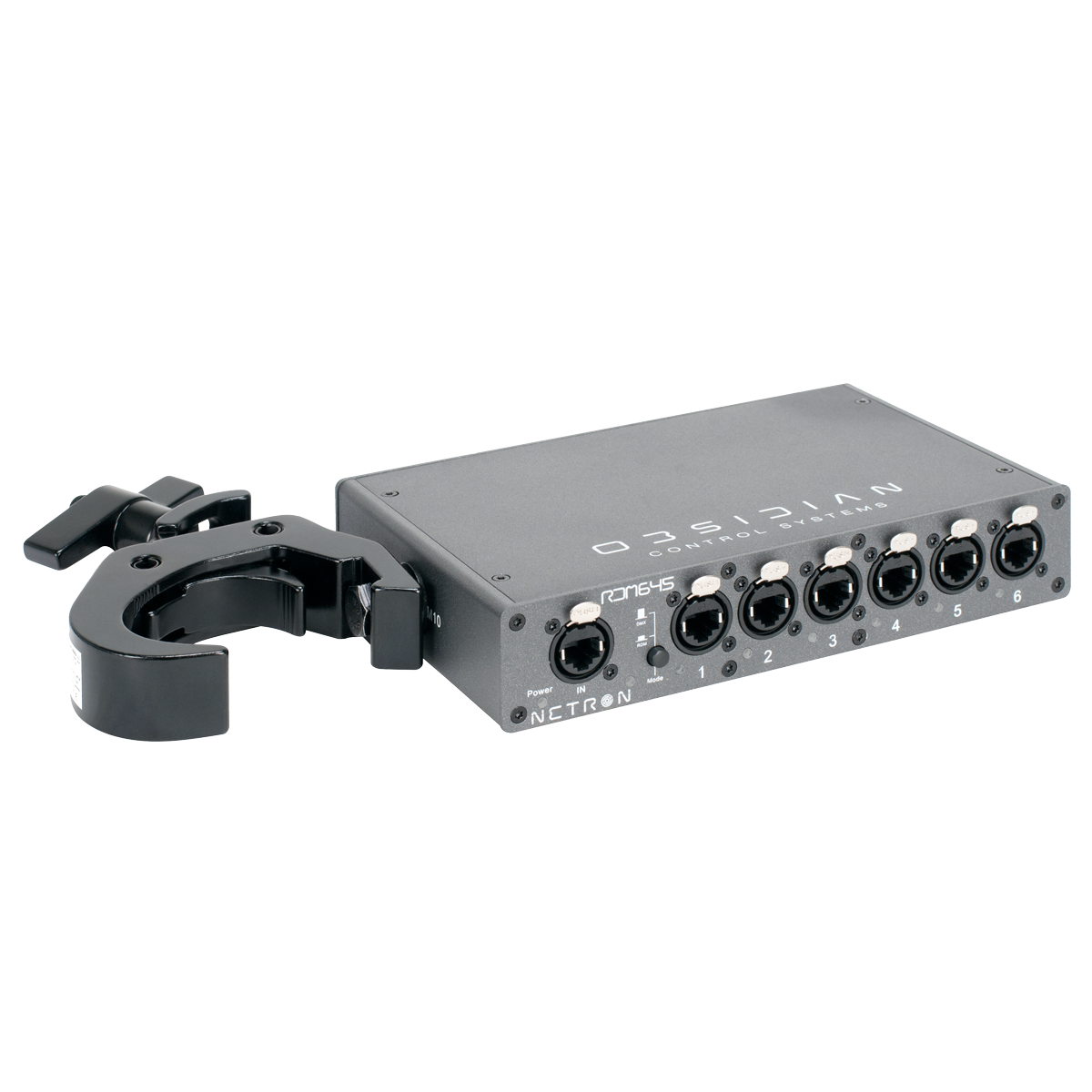

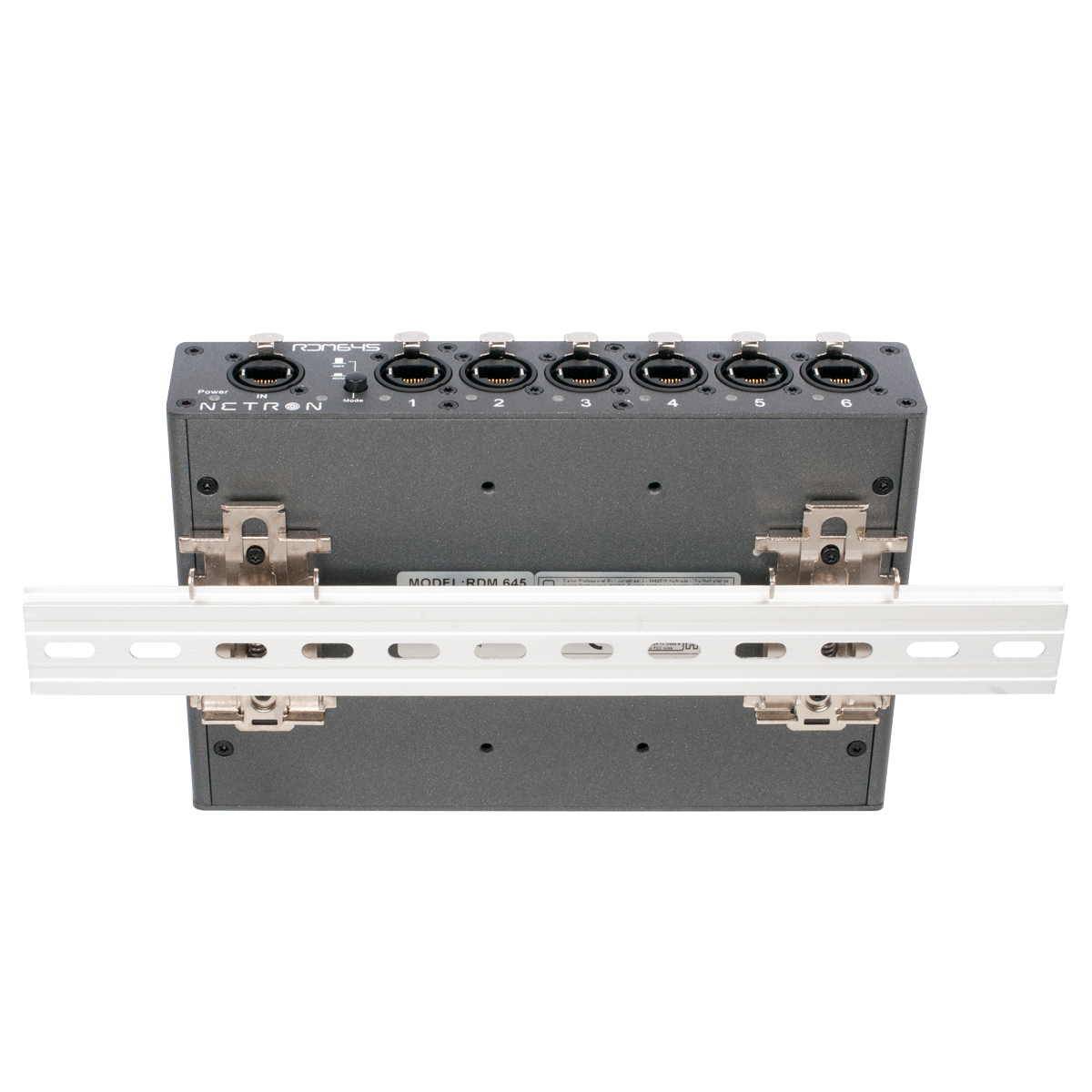

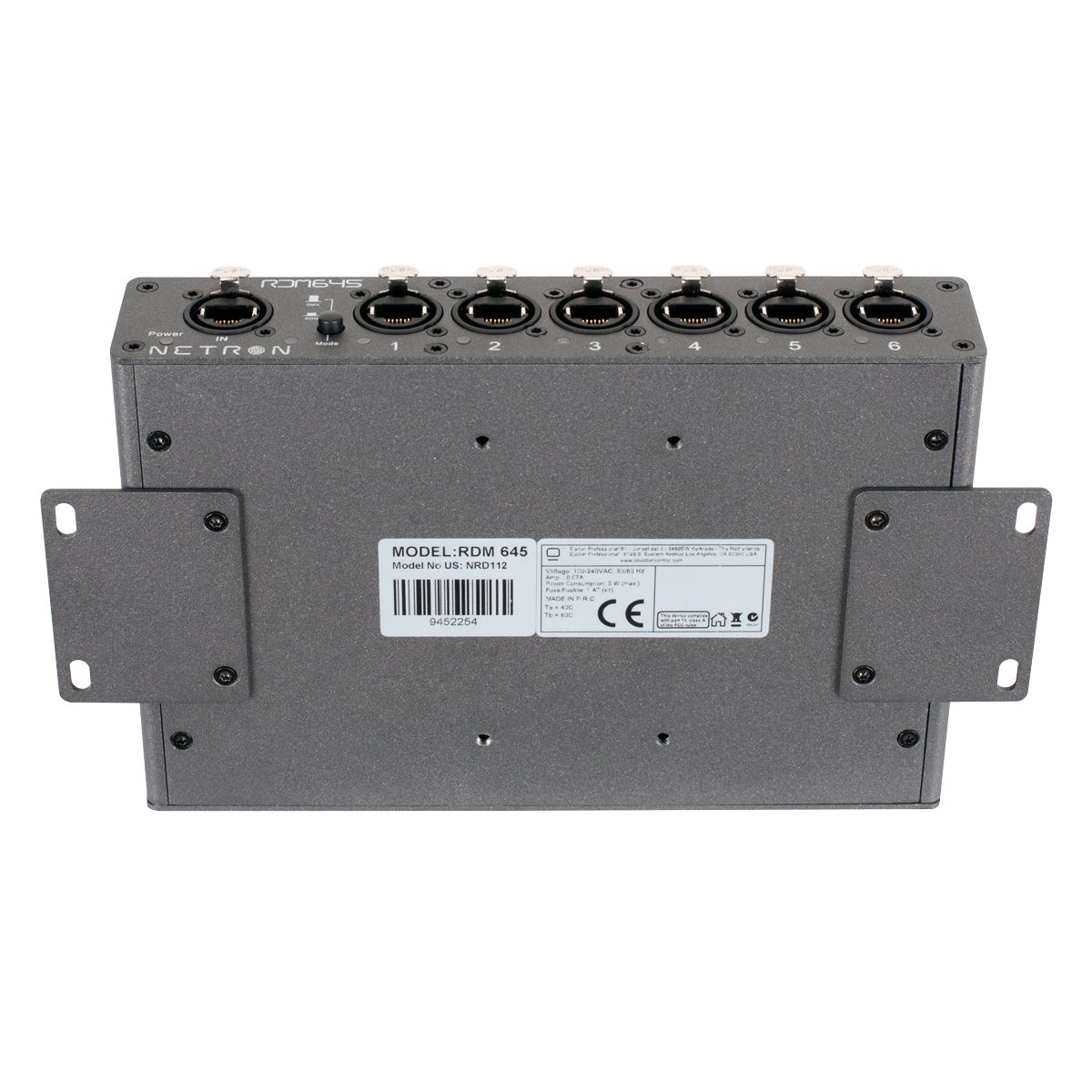

Standalone Truss-mount (M10 or M12 mounting hole) Wall-mount horizontal or vertical (included) DIN Rail horizontal or vertical (included) Rack-mount option (requires NET Shelf)

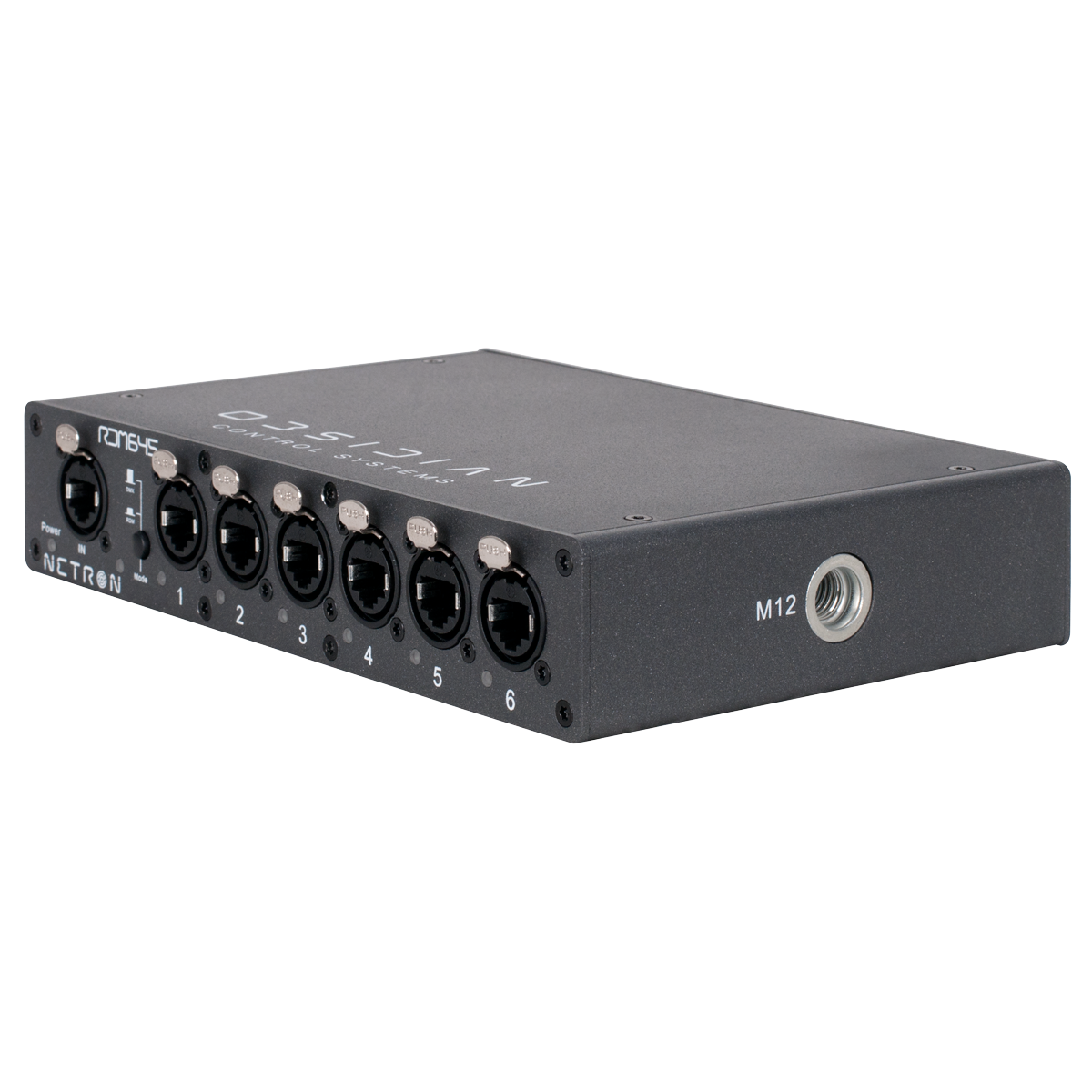

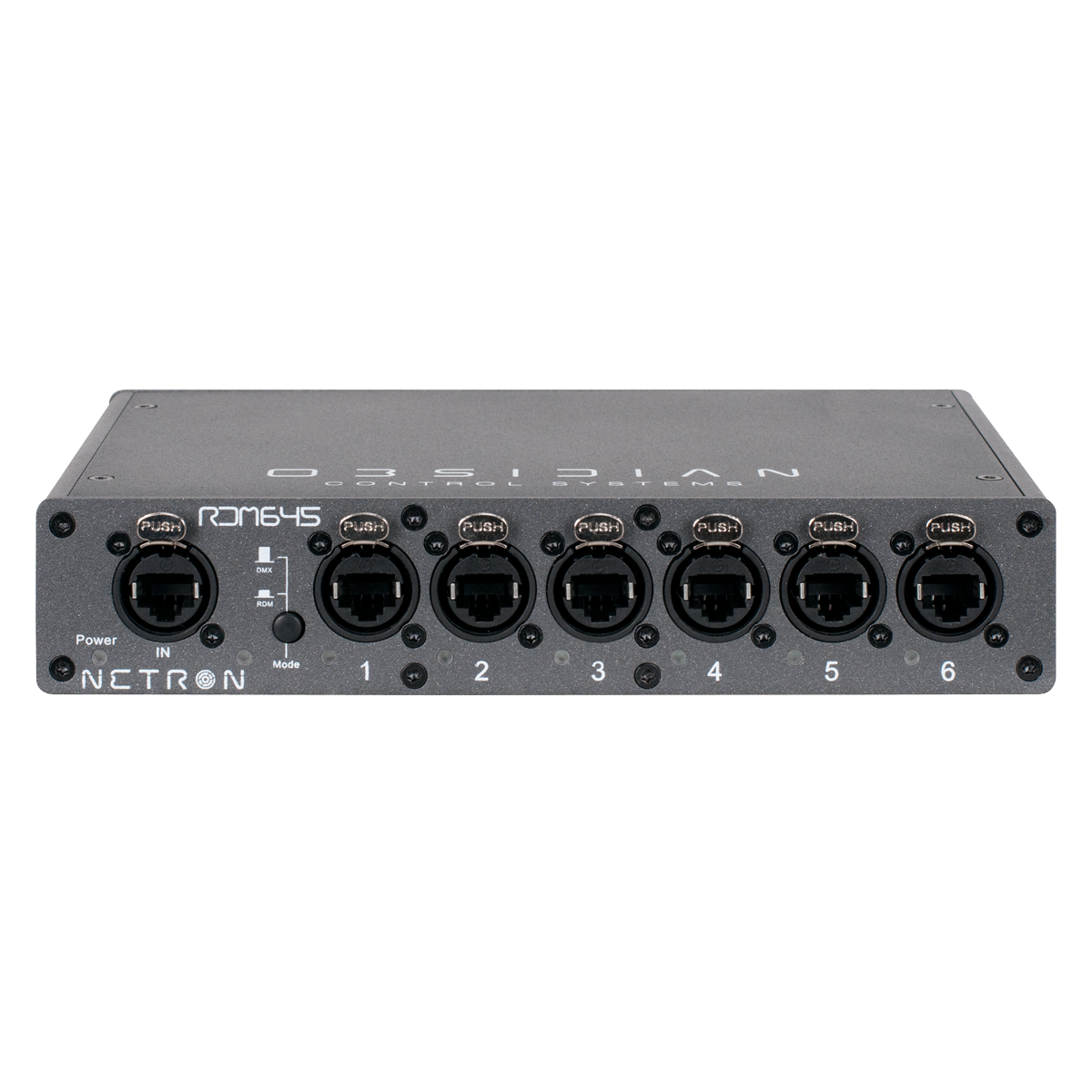

Front
Locking RJ45 Ethernet DMX Input (6) Locking RJ45 Ethernet Opto-Isolated DMX Outputs RDM Enable

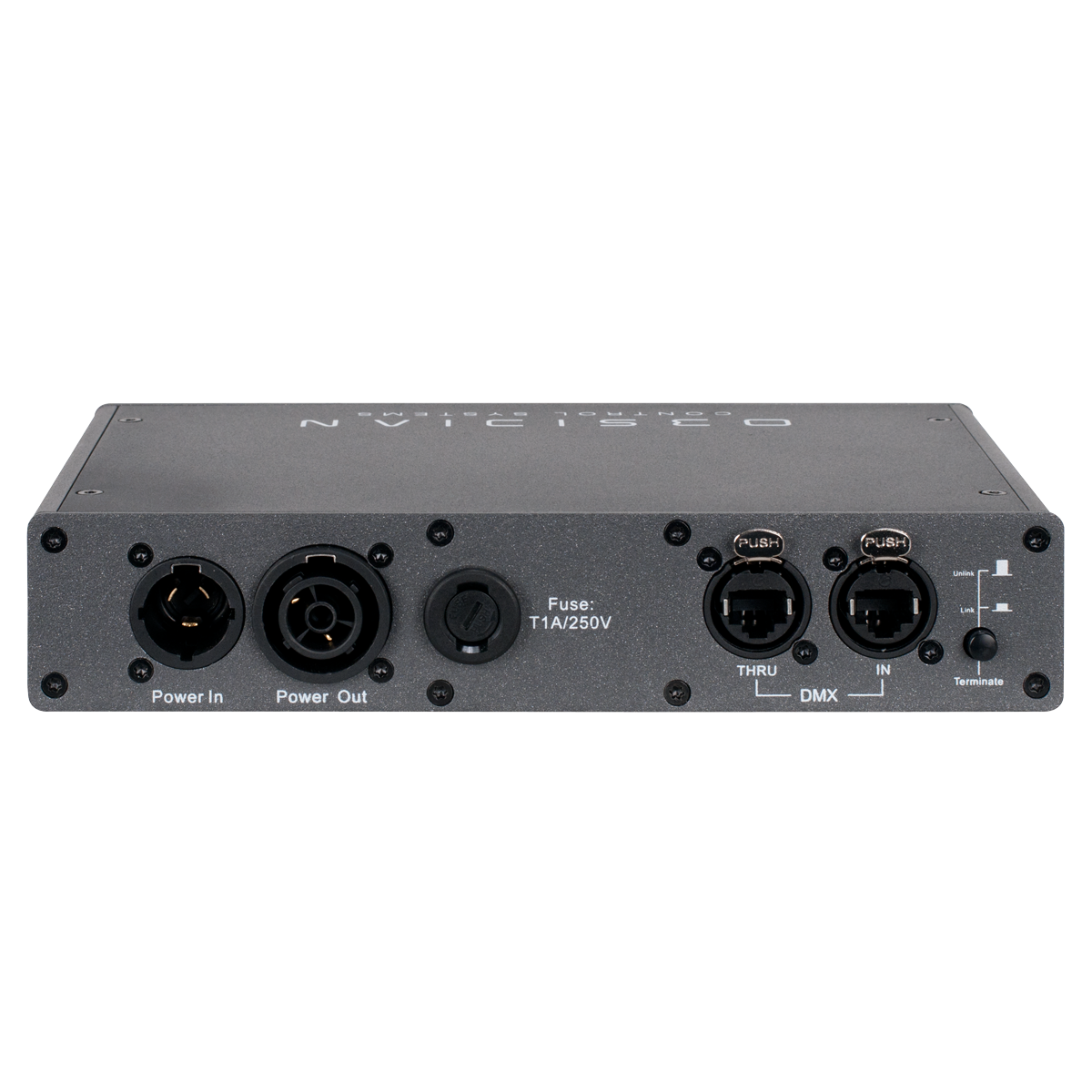

Back
Locking RJ45 Ethernet DMX Input (parallel with front) Locking RJ45 Ethernet DMX Through Terminate Locking Power In/Thru
Physical
Length: 215 mm (8.5 in.) Width: 139 mm (5.5 in.) Height: 42 mm (1.65 in.) Weight: 1 kg (2.2 lbs) Electrical
100-240 V nominal, 50/60 Hz, 10W Approvals / Ratings
Included Items
1.5m Locking power cable (EU or US version) (2) Wallmount plates (2) DIN-Rail clamps SKU
US #: NRD112 EU #: 1330000062
Resources
RDM 645 INSTALLATION GUIDE
RDM645 RDM6XL - Installation Guide 2022-06-27.pdf
netron-rdm645-specification-sheet.pdf
NETRON Catalog Vol.1 2021.pdf
