Key Features
- Rugged IP65 chassis
- Gigabit Network Switch optimized for data intensive entertainment applications
- Artnet and sACN support
- X-Net, HogNet, MA-Net and various other protocols
- Factory and user presets for plug and play setups
- POE+ support
- POE power switch

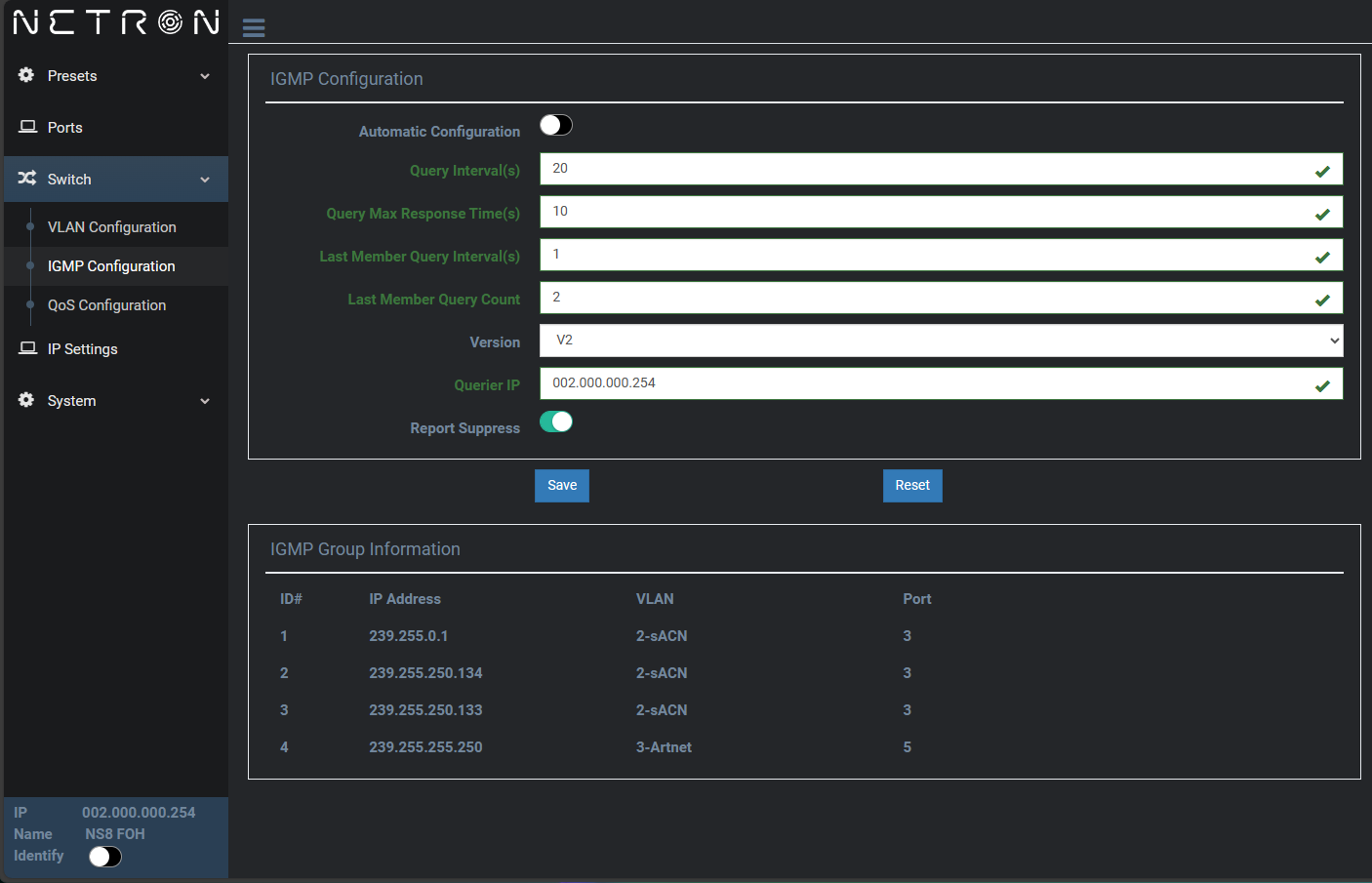

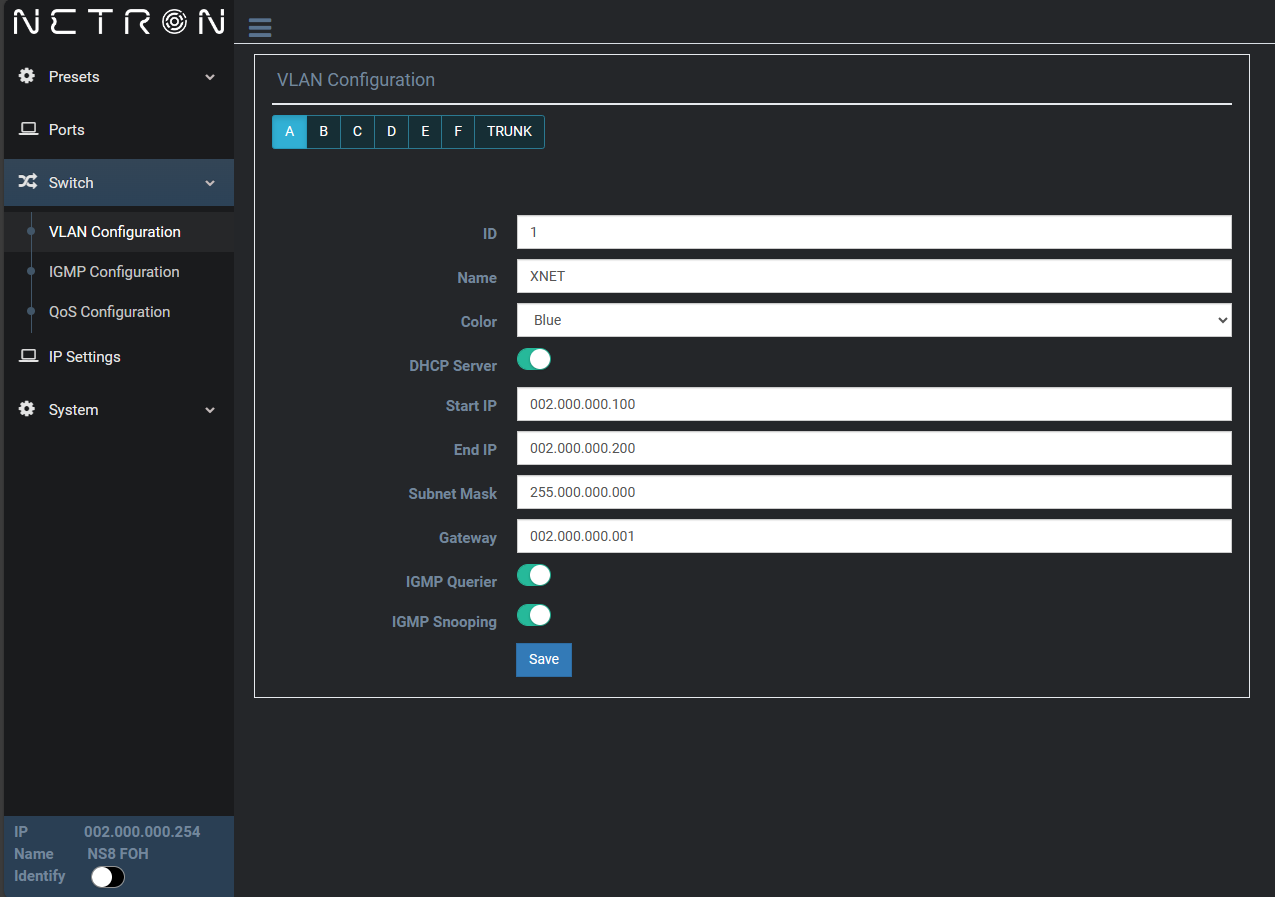

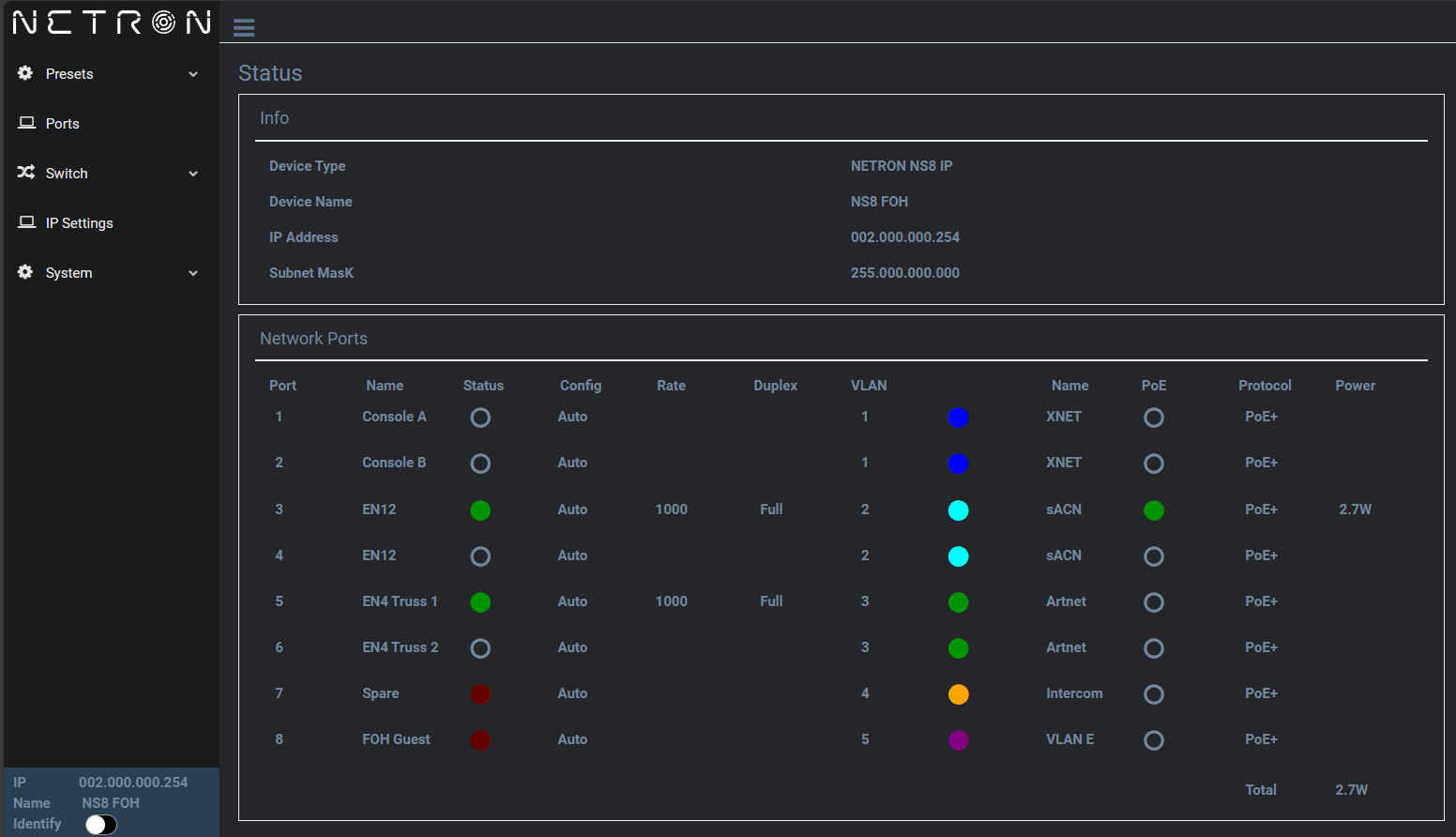

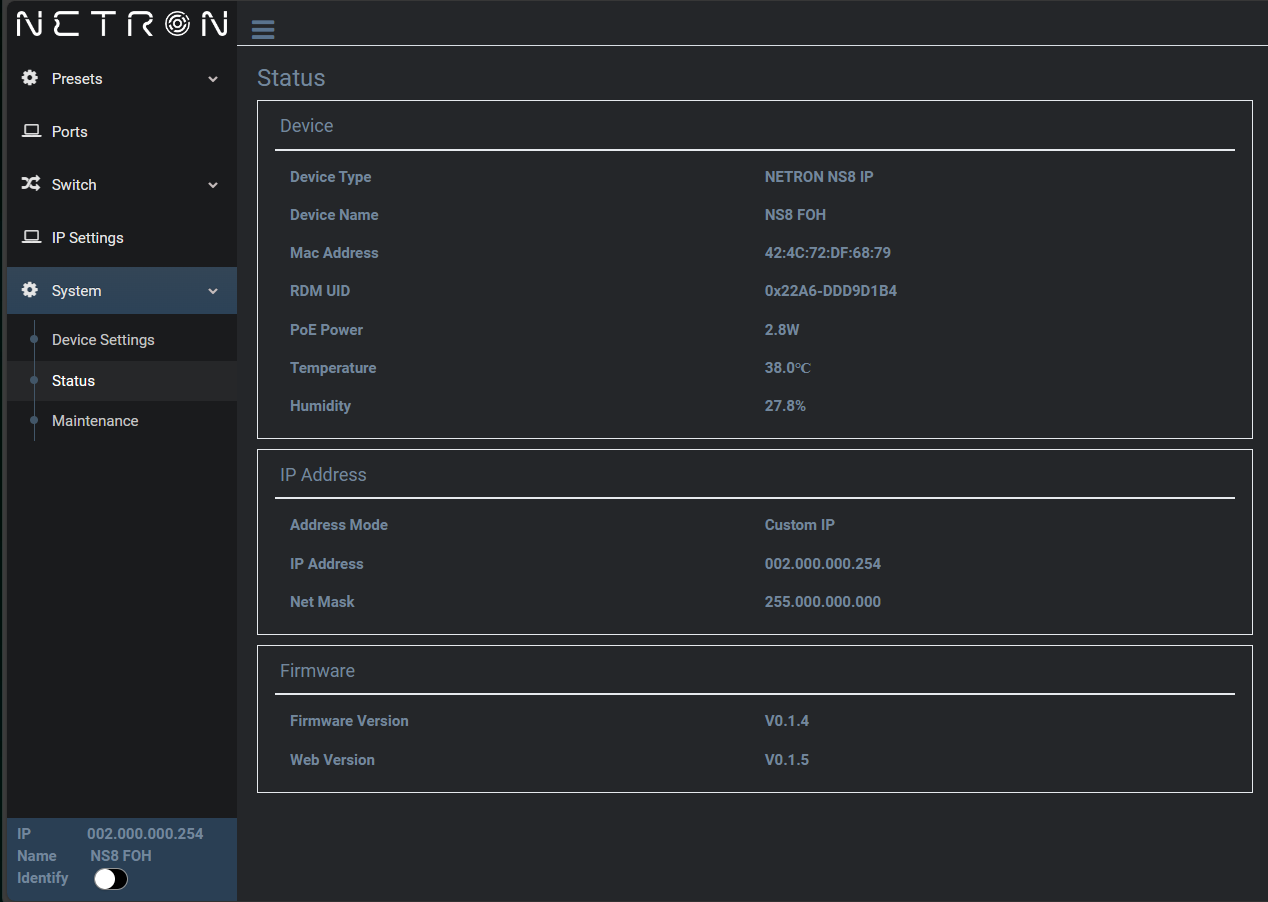

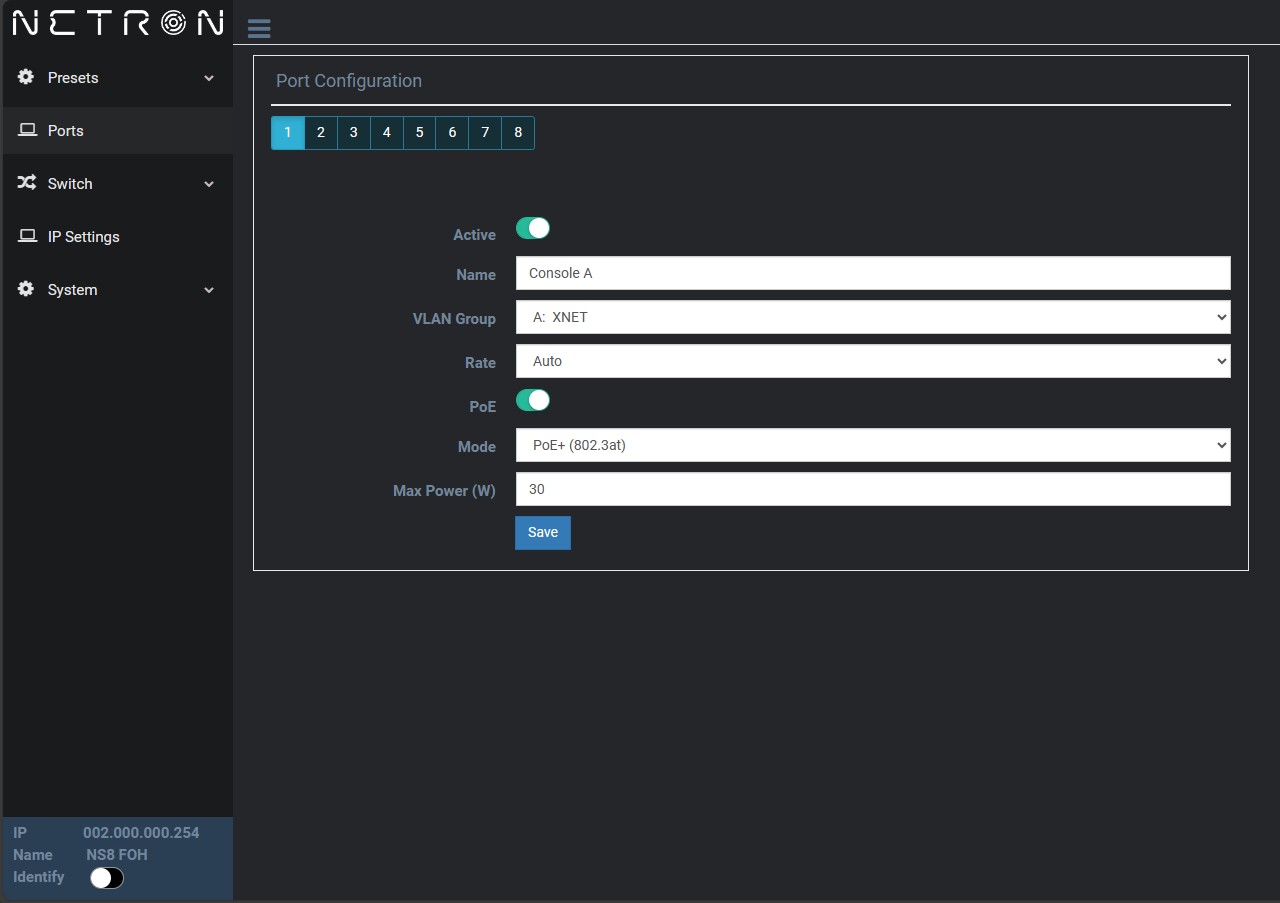

- Remote configuration via internal webpage
- Convection cooled design
- Powder-coated aluminum exterior housing
Specifications
- Standalone

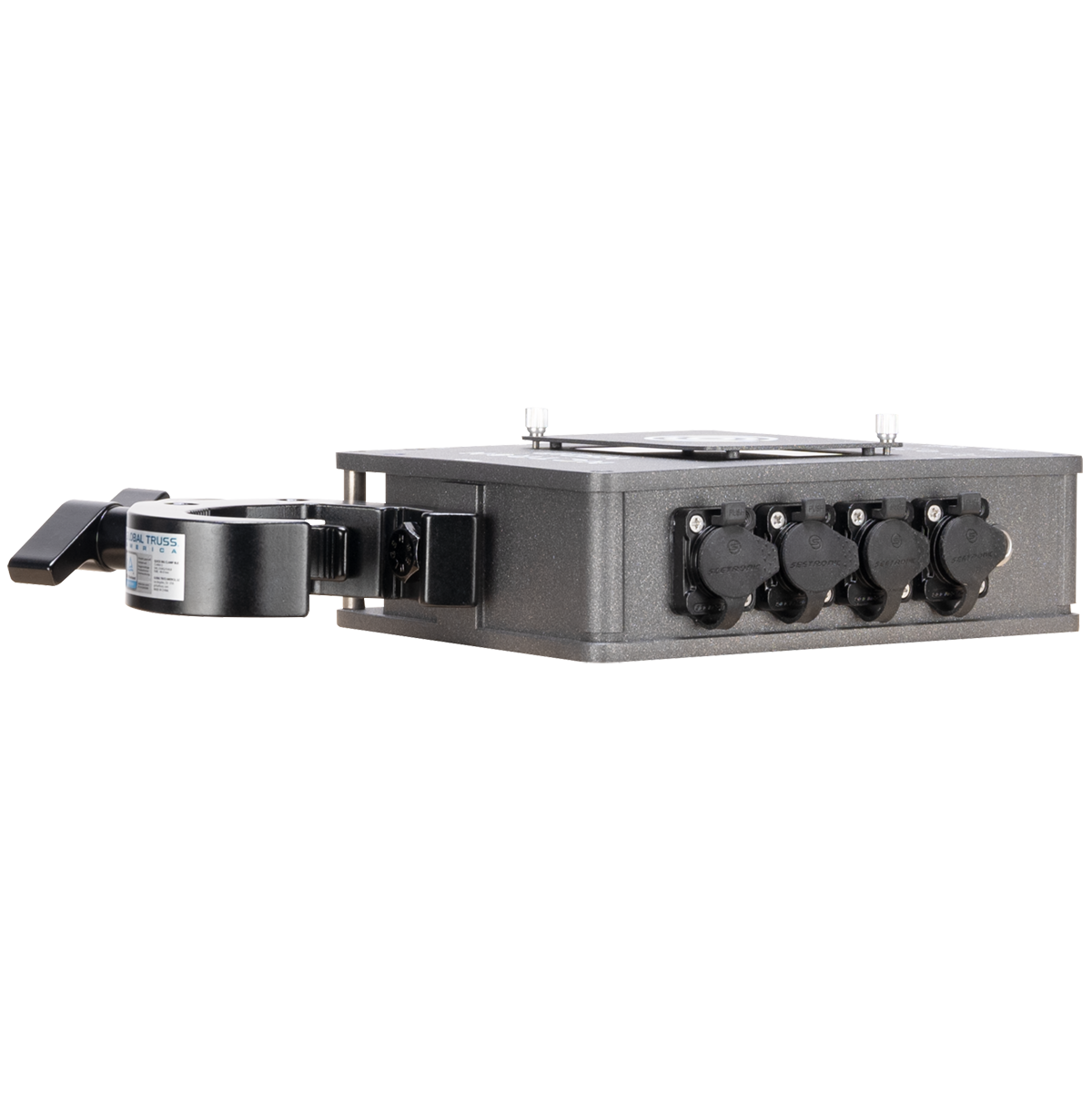

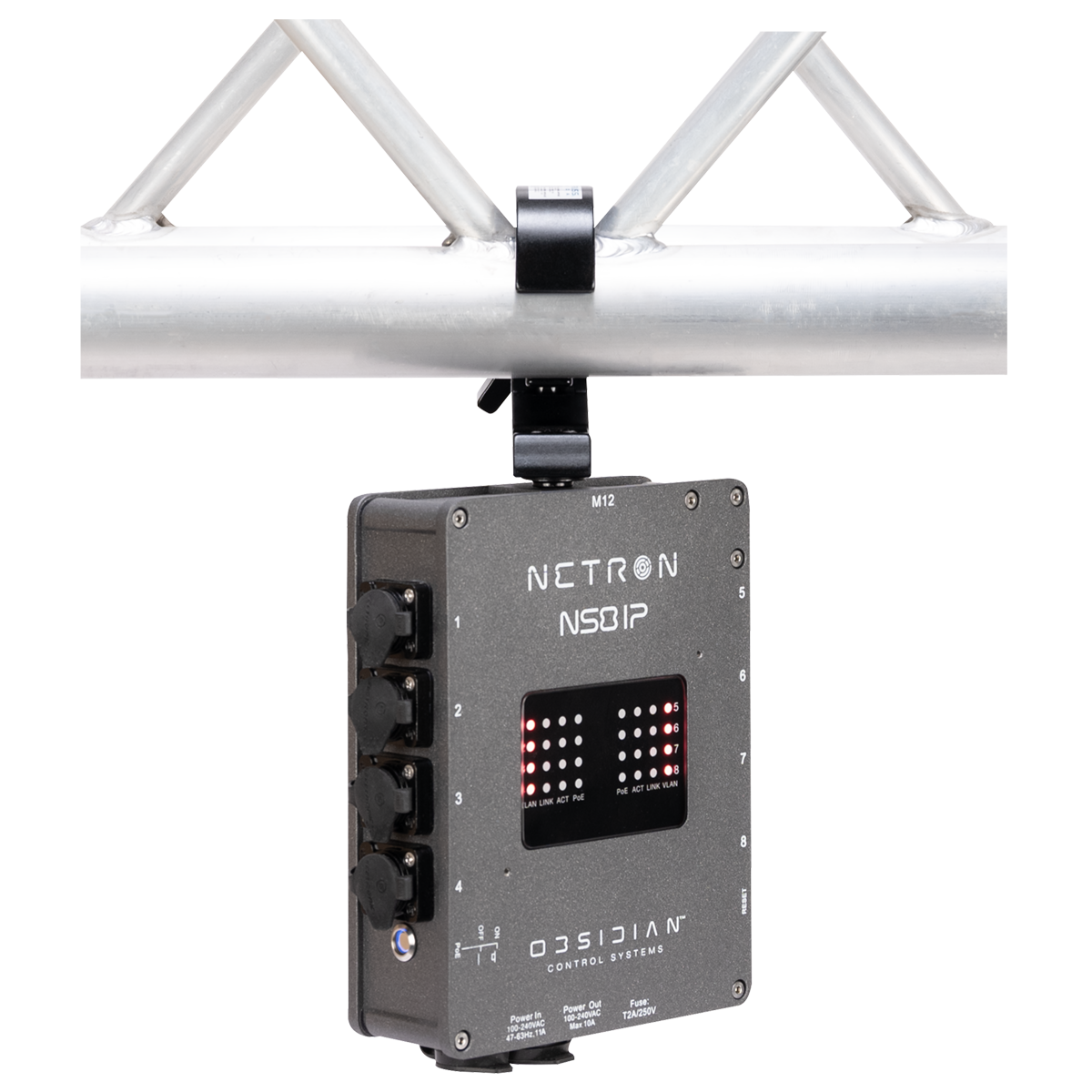

- Truss-mount (M12 mounting hole)
- Wall-mount horizontal or vertical (included)

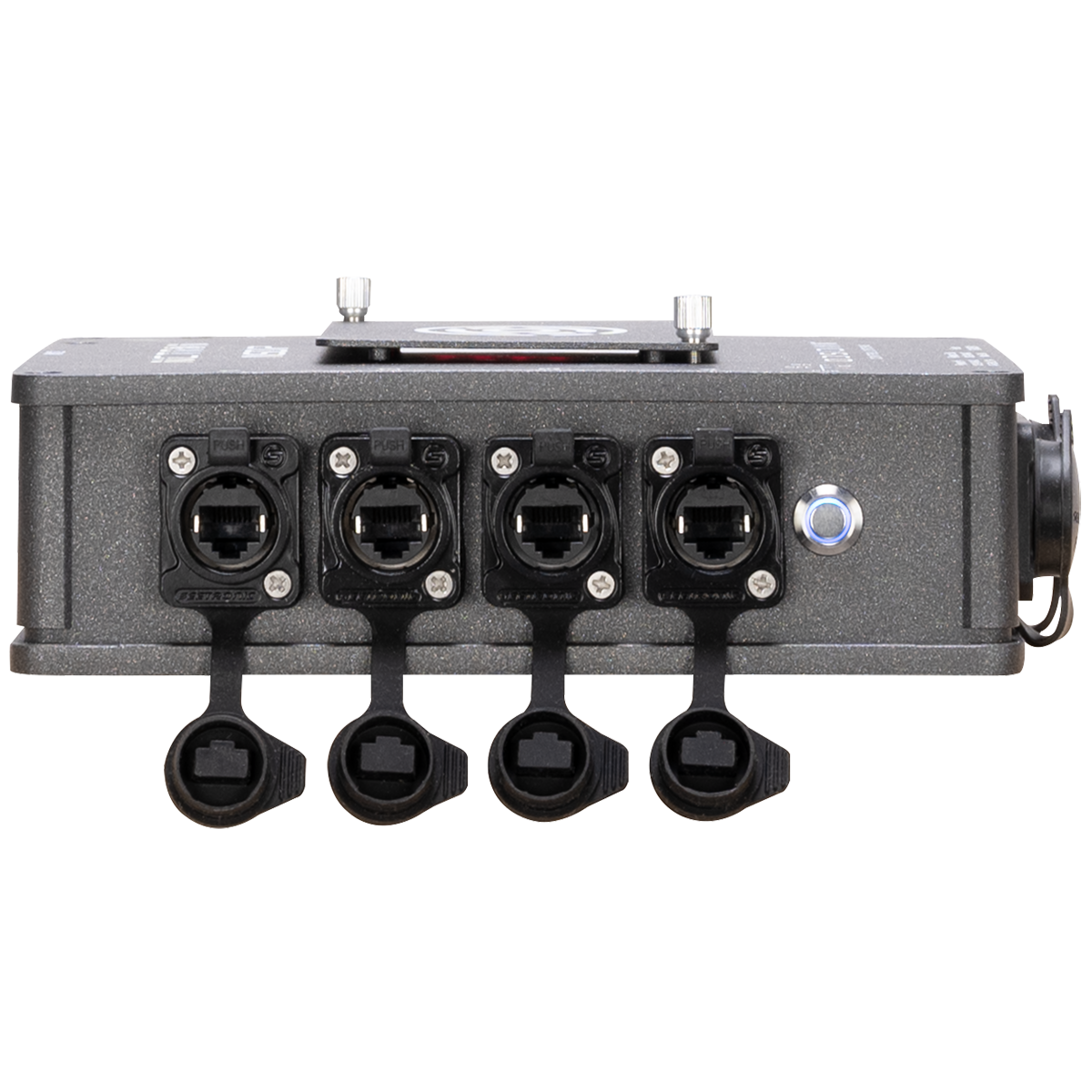

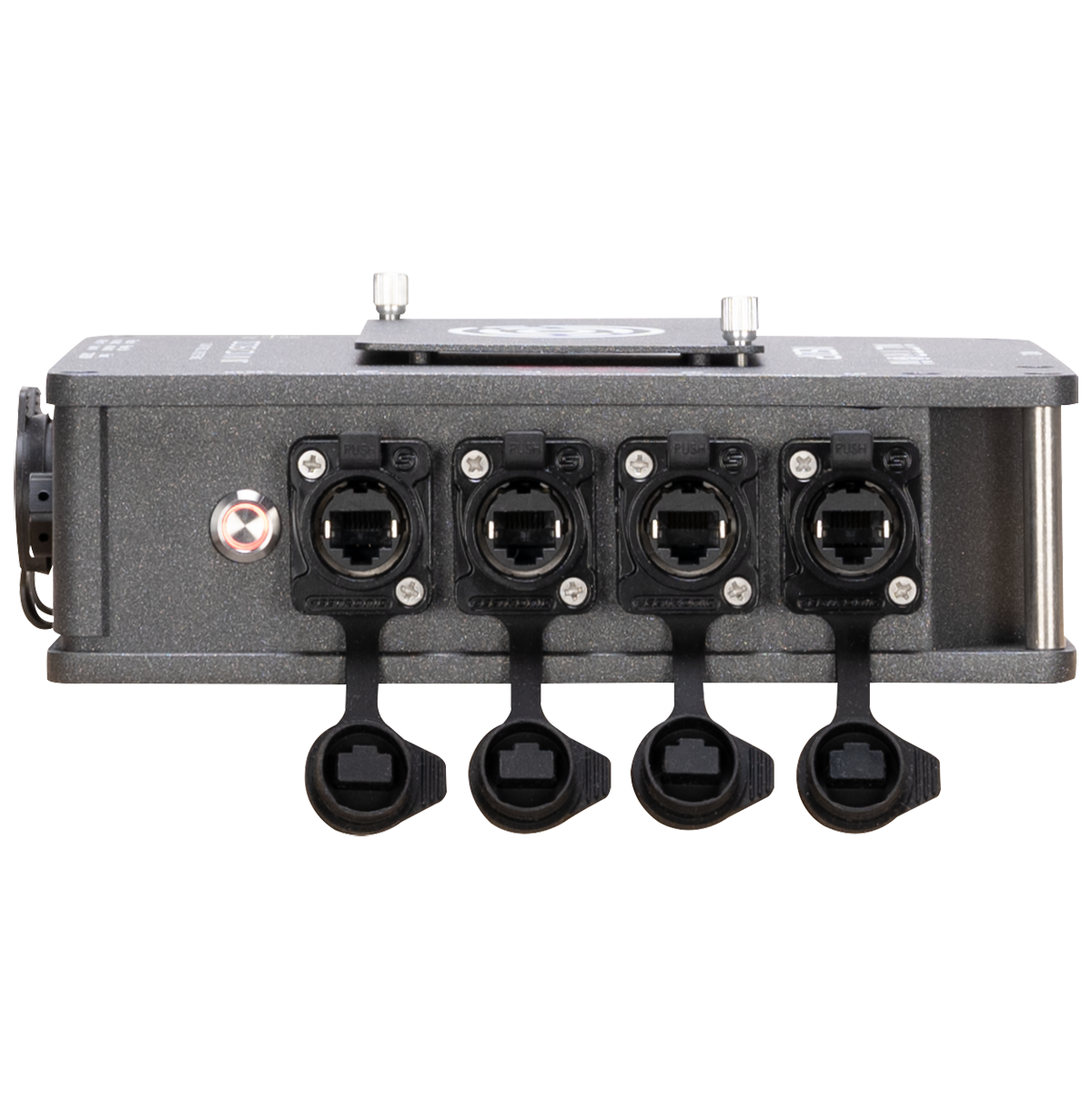

- (8) Locking RJ45 Ethernet network connections

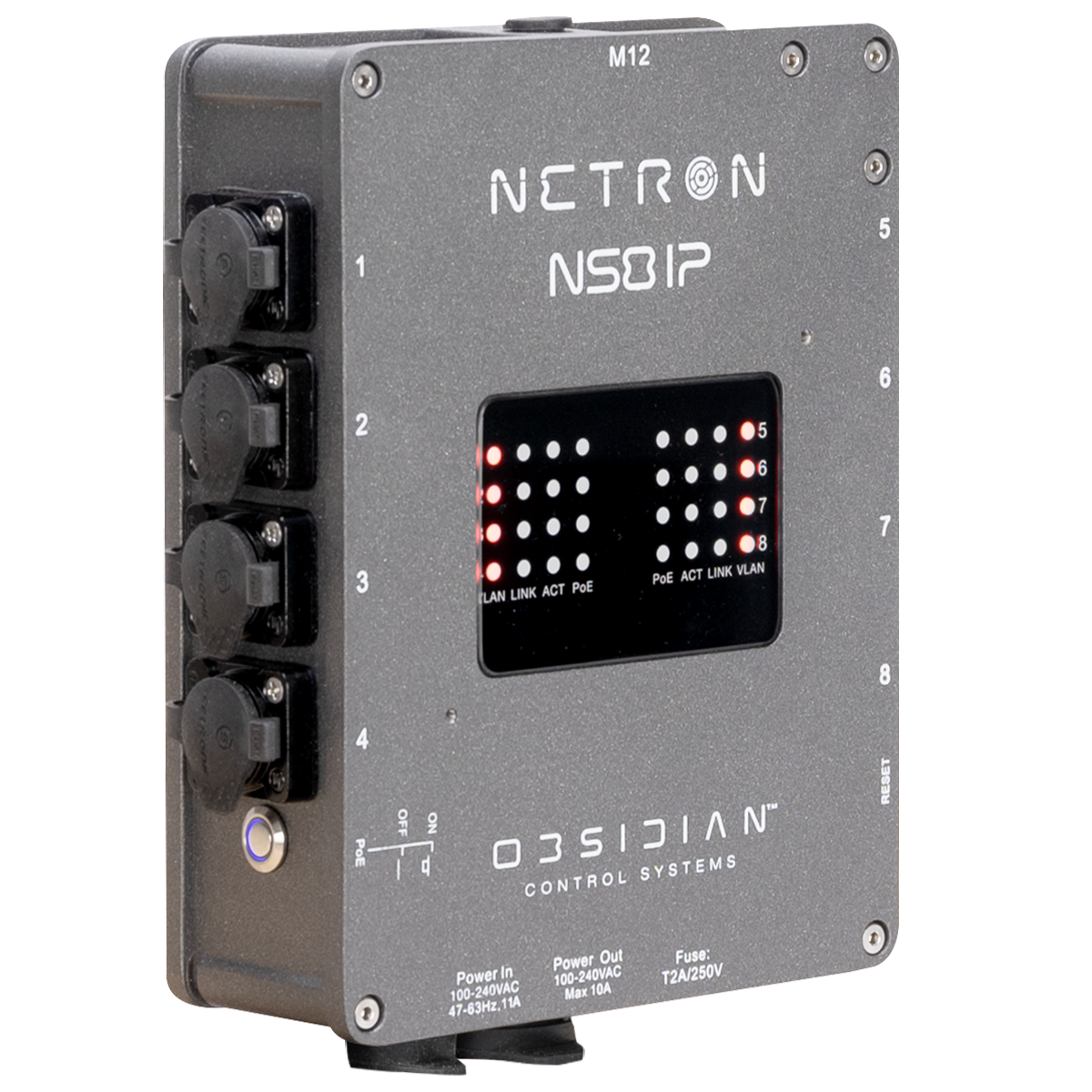

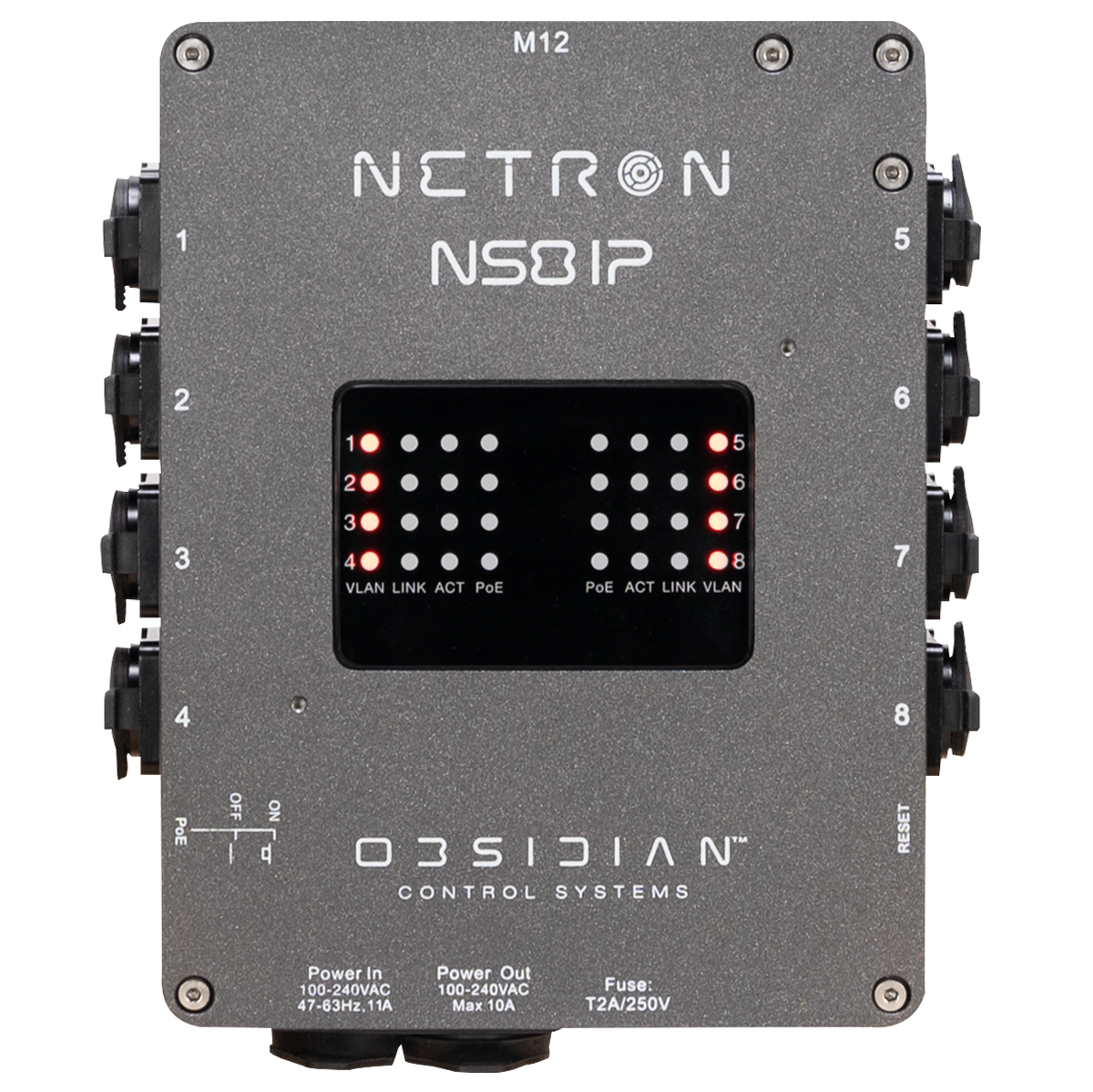

- LED Feedback for Activity and Link

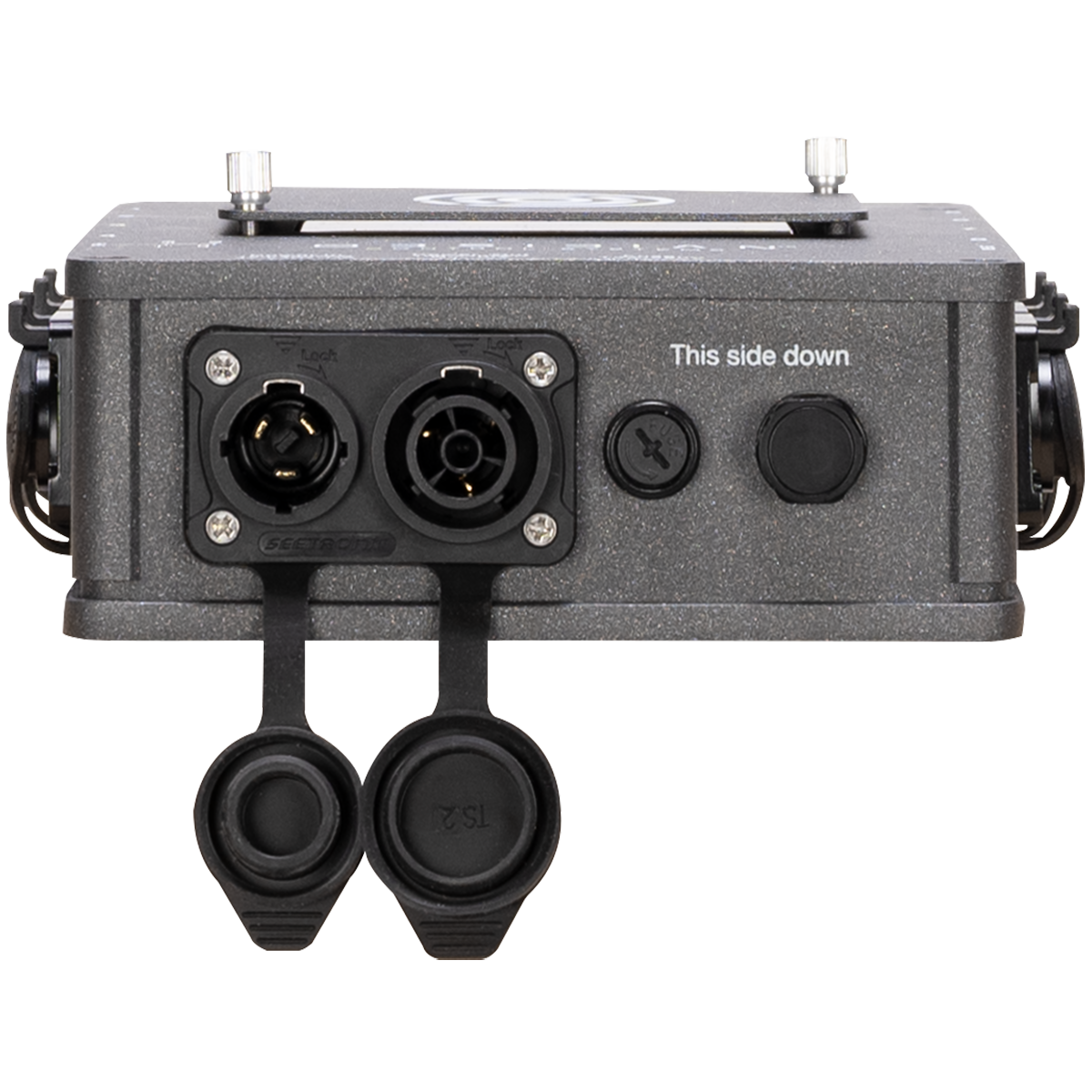

- IP65 Locking Power In/Thru
- POE Power Switch
Physical
- Length: 177mm (6.9 in.)
- Width: 213 mm (8.4 in.)
- Height: 69 mm (2.7 in.)
- Weight:Â kg ( lbs)
Electrical
- 100-240 V nominal, 50/60 Hz, 130W
- POE 802.3at
- 100W Total POE Budget
Approvals / Ratings
Included Items
- 1.5m locking IP65 power cable (EU or US version)
- (2) wall brackets
