- Standalone
- Truss-mount (M10 or M12 mounting hole)

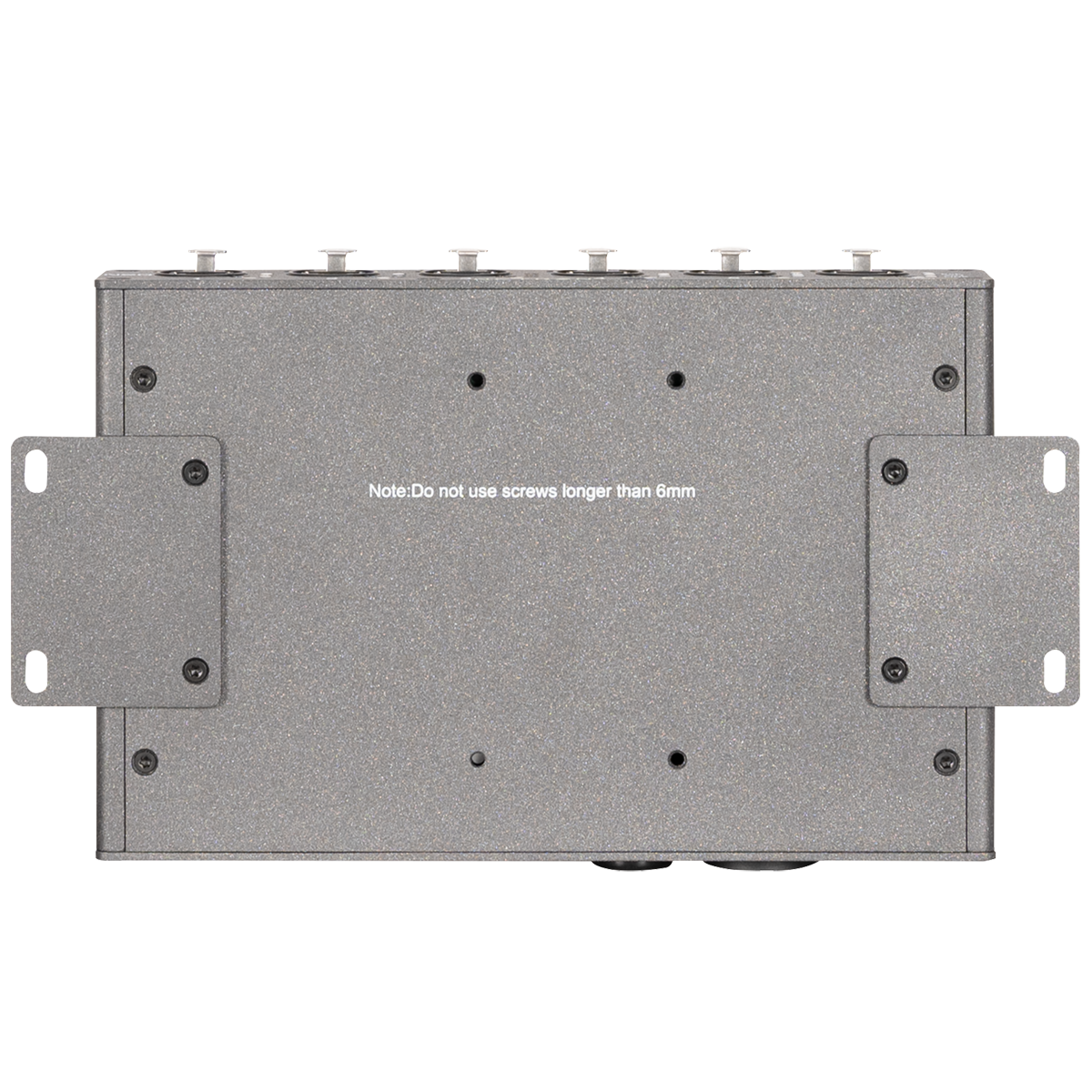

- Wall-mount horizontal or vertical (included)
- DIN Rail horizontal or vertical (included)
- 1/2 Rack-mount option (requires NET Shelf)
Front
- (6) Locking RJ45 Ethernet network connections
- LED Feedback for Activity and Link
Back
- Locking Power In/Thru
- (2) Locking RJ45 Ethernet network connections
- LED Feedback for Activity and Link
- POE Power Switch
Physical
- Length: 139 mm (5.5 in.)
- Width: 215 mm (8.5 in.)
- Height: 42 mm (1.65 in.)
- Weight: 1 kg (2.2 lbs)
Electrical
- 100-240 V nominal, 50/60 Hz, 130W
- POE 802.3at
- 100W Total POE Budget
Approvals / Ratings
- cETLus / CE / IP20
Included Items
- 1.5m Seetronic power cable (EU or US version)
- (2) Wallmount plates
- (2) DIN-Rail clamps
SKU
- US #:Â
- EU #:Â
