EP4

The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection.

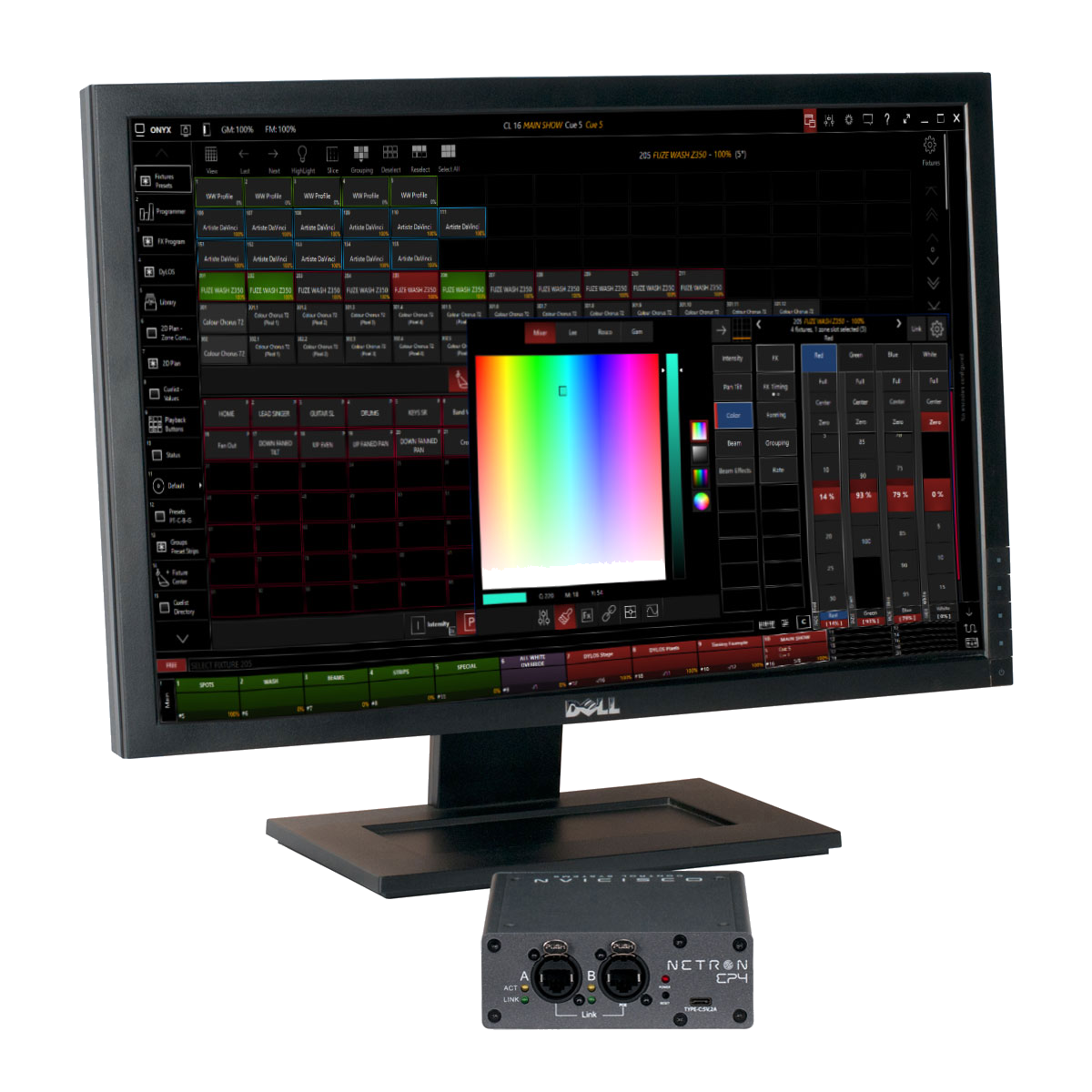

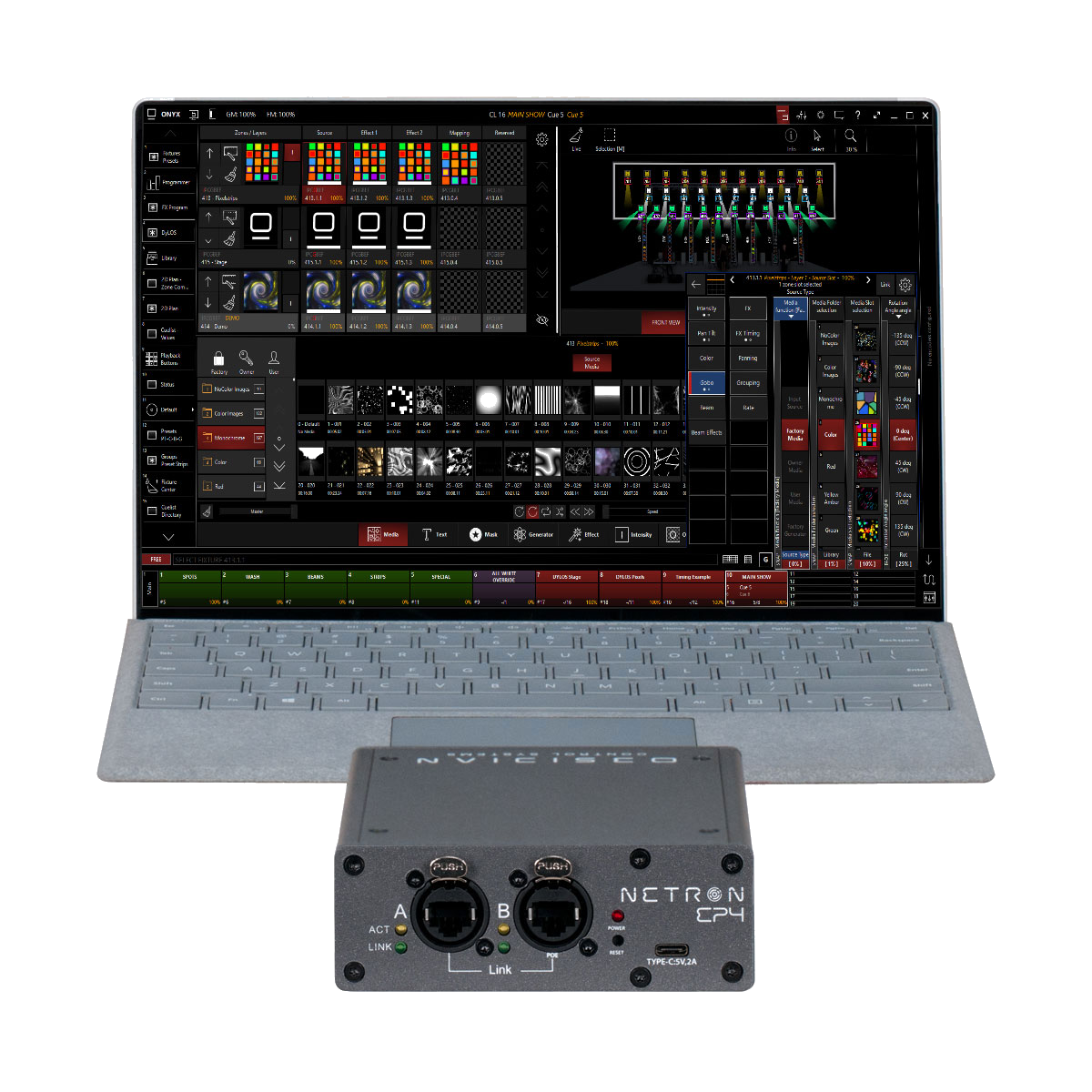

As a four Universe Node the EP4 is ideally suited for the powerful ONYX NOVA Edition.

Key Features
  • RDM, Artnet and sACN support
  • Factory and user presets for plug and play setups
  • POE or USB-C powered
  • 99 Internal cues with fade and delay time
  • Remote configuration via internal webpage
  • Powder-coated compact aluminum housing
  • Unlocks ONYX NOVA 4-Universe License
  • NETRON CLU for remote configuration and firmware updates
Specifications
  • Standalone

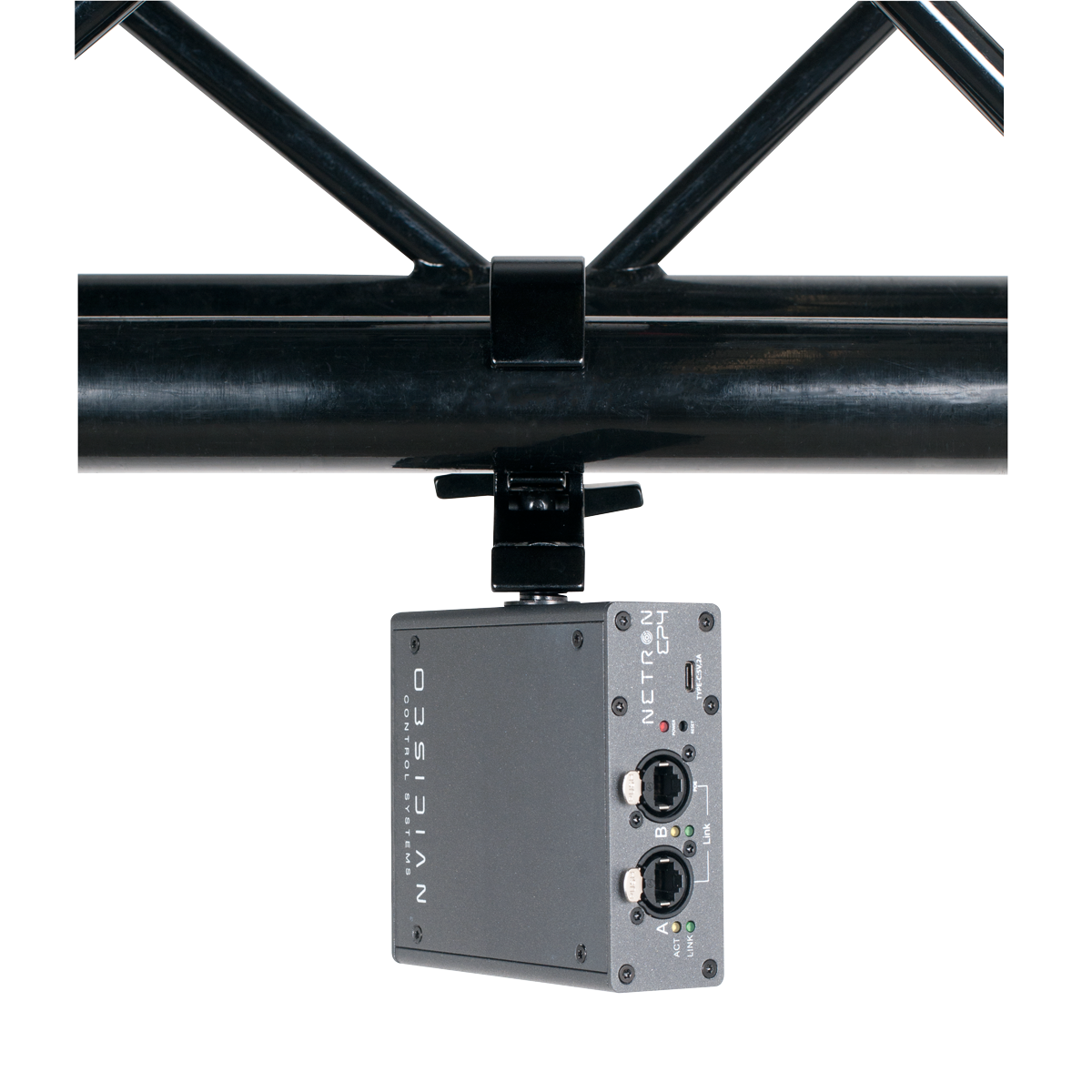

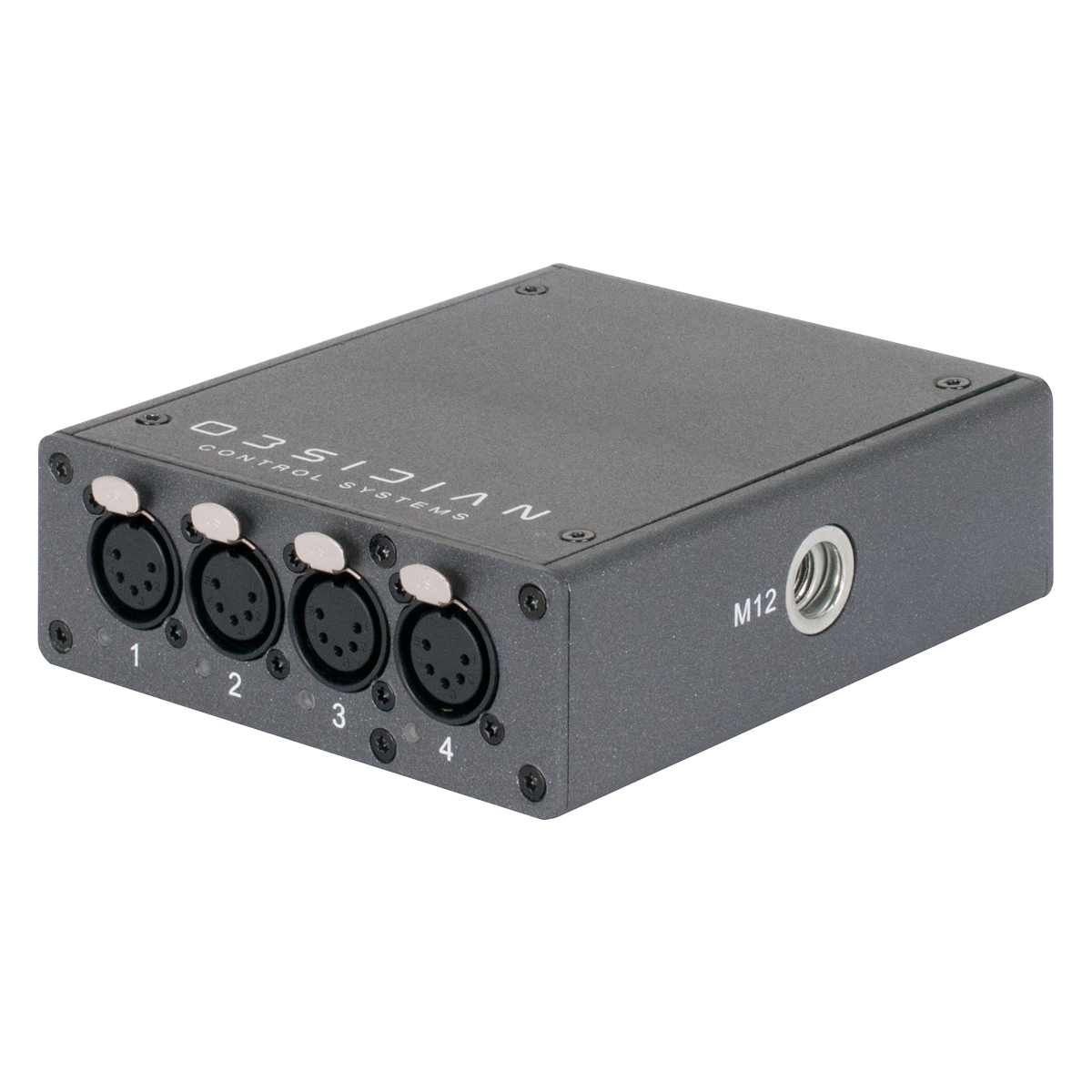

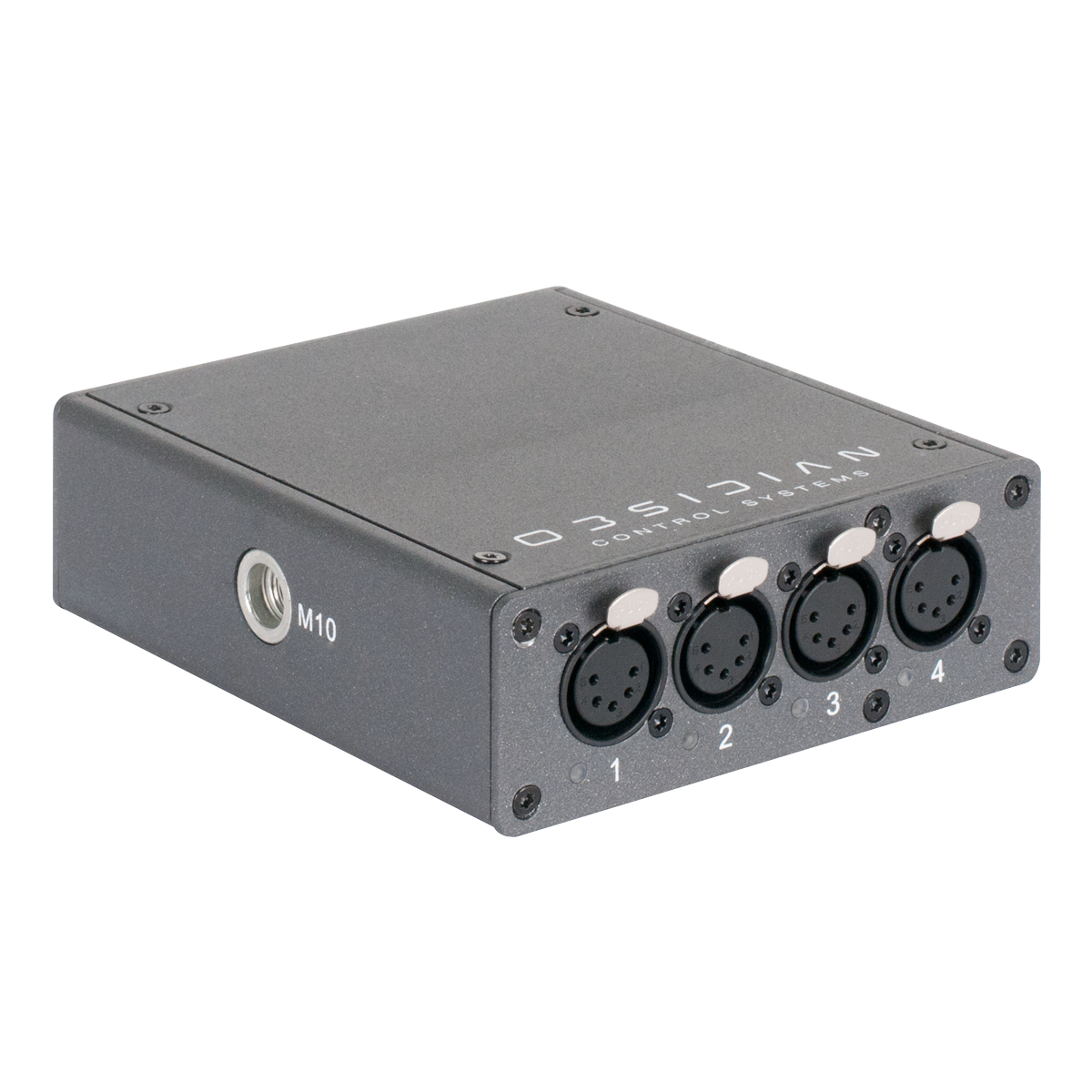

  • Truss-mount (M10 or M12 mounting hole)

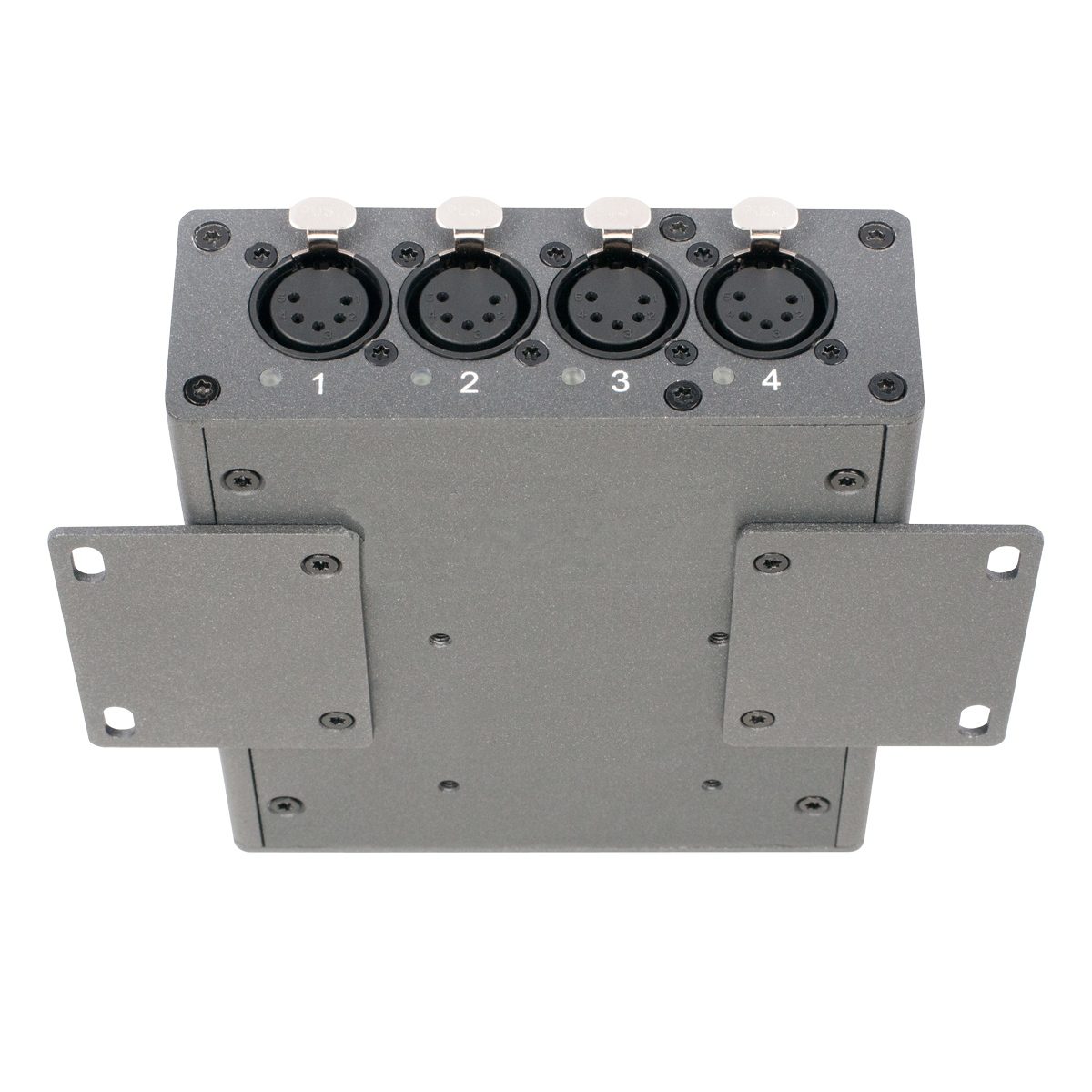

  • Wall-mount horizontal or vertical (included)

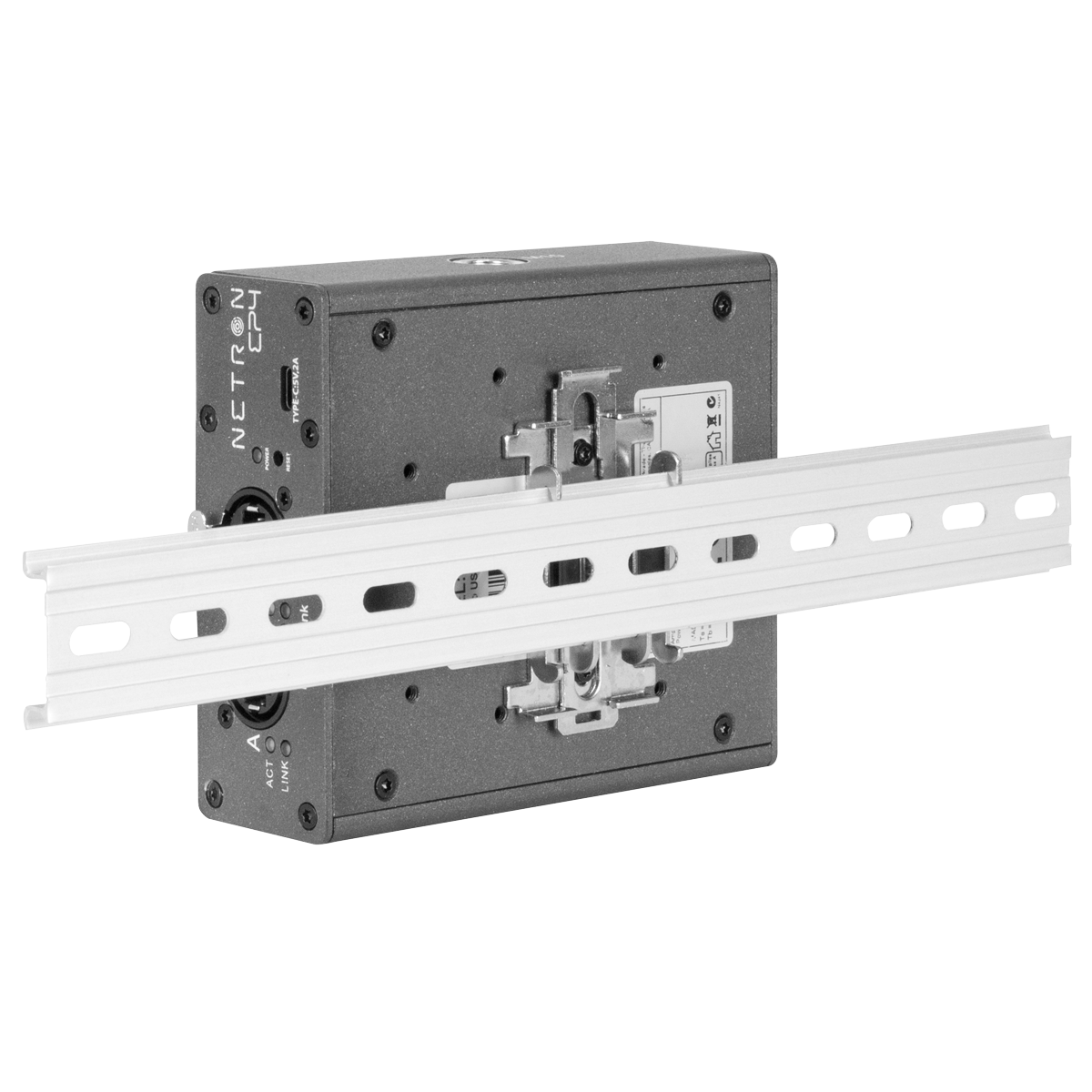

  • DIN Rail horizontal or vertical (included)

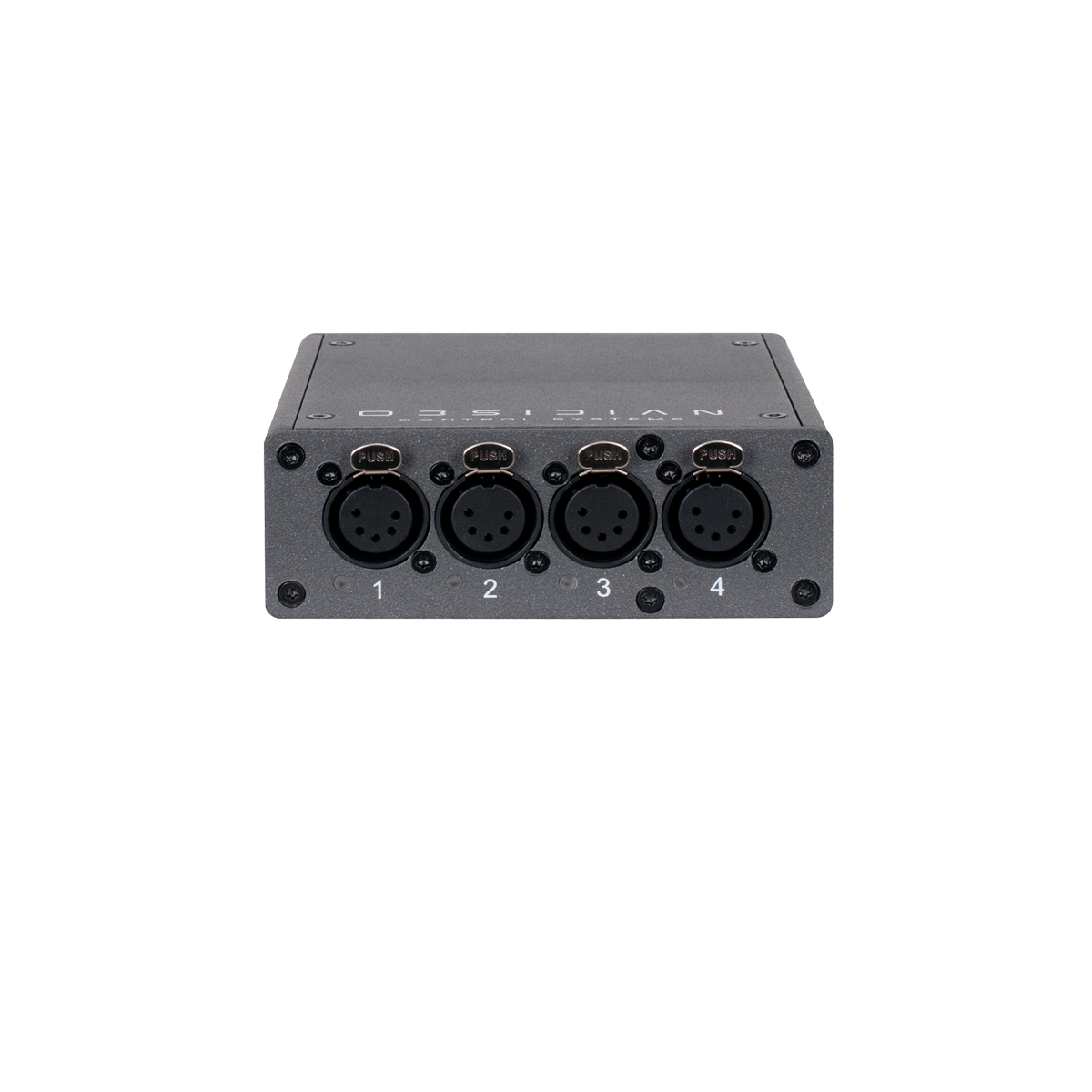

Front

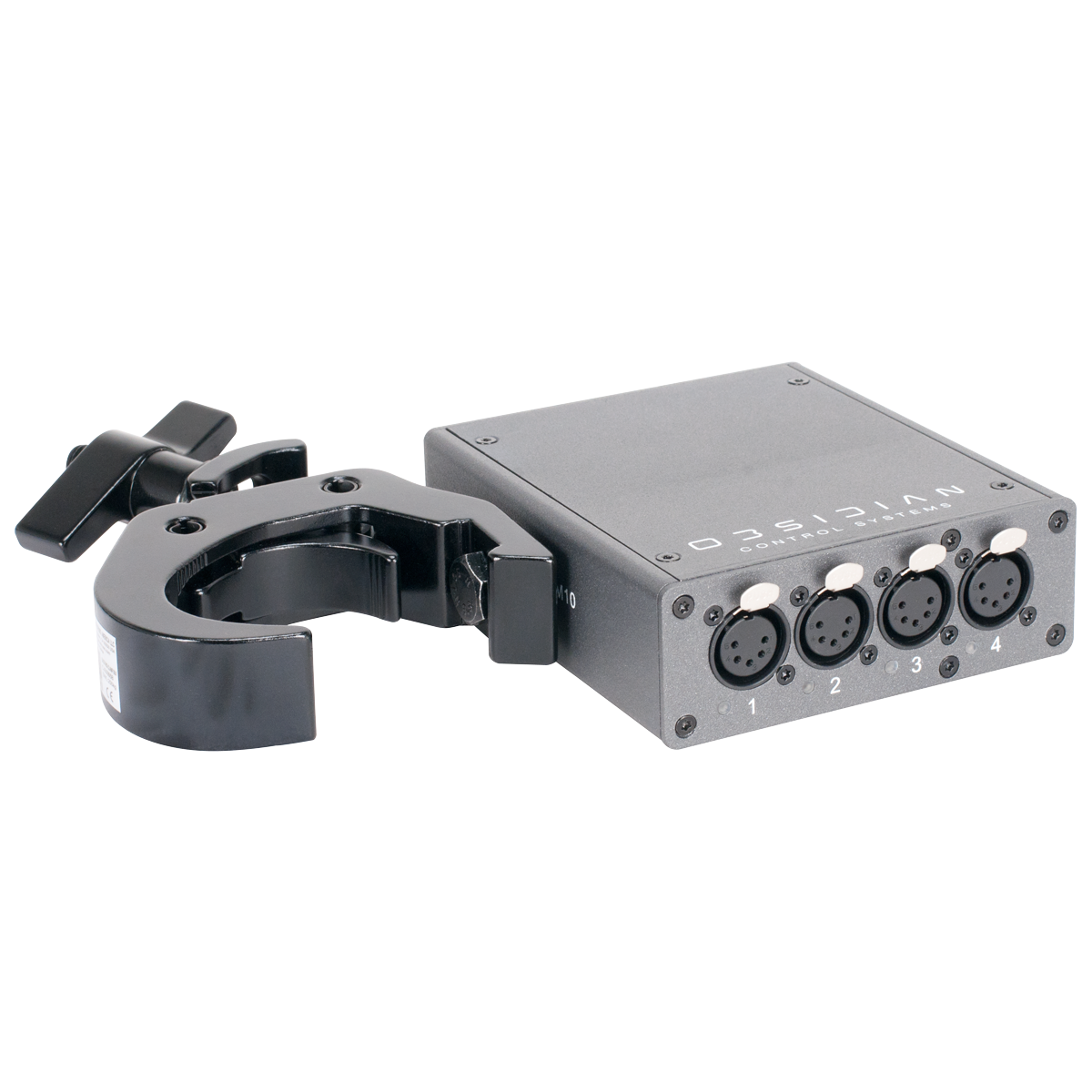

  • (4) 5pin DMX/RDM optically isolated ports
  • Ports are bidirectional for DMX In and Output

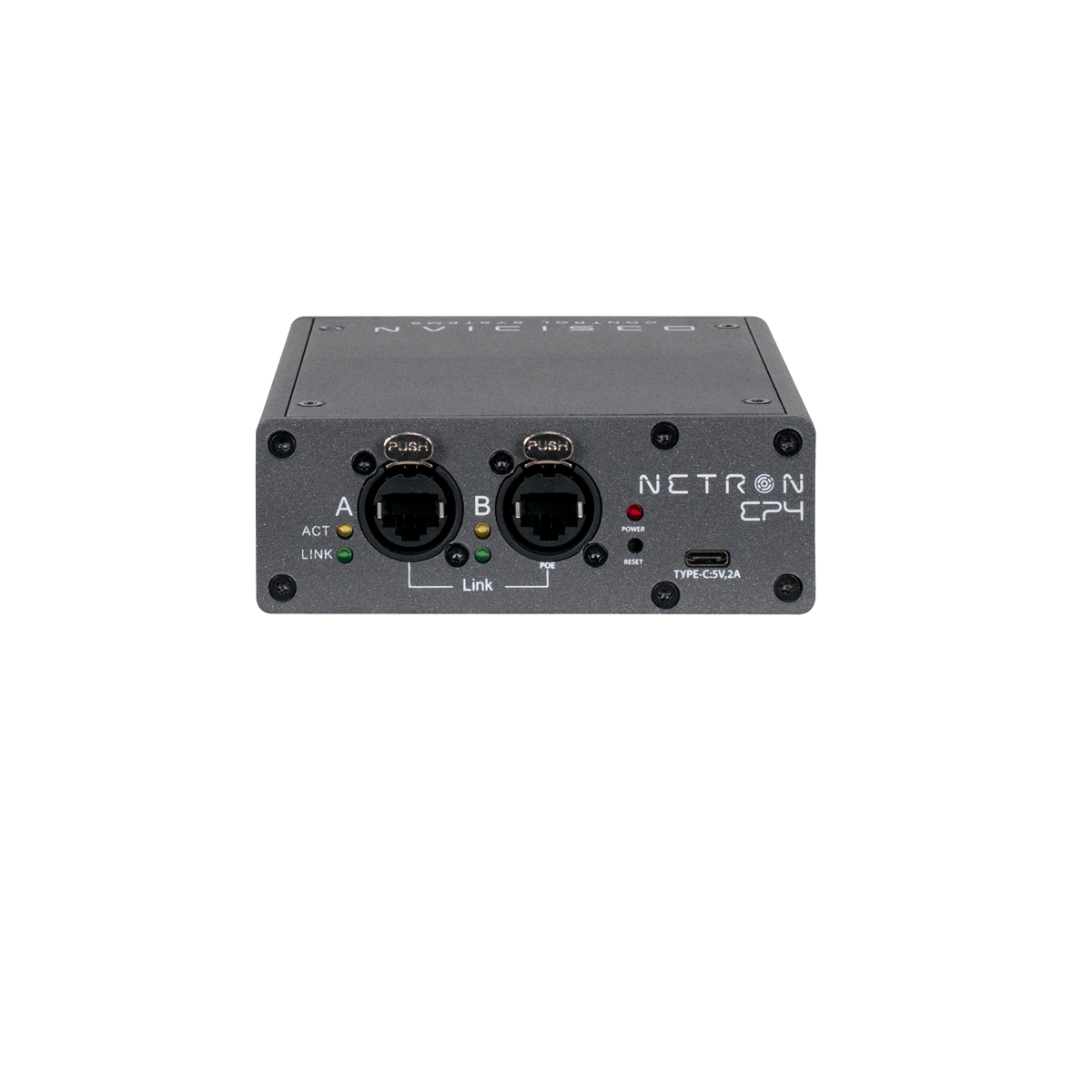

Back

  • (2) Locking RJ45 Ethernet network connections (1x POE)
  • USB-C power option (5V, 2A)
Physical

  • Length: 133.5 mm (5.3 in.)
  • Width: 118 mm (4.6 in.)
  • Height: 42 mm (1.65 in.)
  • Weight: 0.5 kg (1.1 lbs)
Electrical

  • USB-C 5V
  • POE 802.3af
  • Power Consumption: 3.8W
Approvals / Ratings
  • CE / IP20
Included Items

  • Universal 5V/2A USB Power Adapter (UK, US, Europe, & AUS connectors), 100-240V
  • 1.5m Obsidian USB-C cable
  • (2) Wallmount plates
  • DIN-Rail clamp
SKU

  • US #: NRE023
  • EU #: 1330000064
Resources
CAD DRAWING
NETRON EP4 3D.dwg
NETRON EP4 INSTALLATION GUIDE
NETRON EP4 INSTALLATION GUIDE.pdf
NETRON EN4 EP4 EN12 EN12-45 - USER GUIDE 2022-05-25.pdf
EP4 - SPECIFICATION SHEET
Obsidian EP4 - Specification Sheet 2022-05-31.pdf
NETRON CATALOG
NETRON Catalog Vol.1 2021.pdf
NETRON Catalog Vol1 2022.pdf
SOFTWARE
NETRON Firmware V2.8.2.zip
NETRON Release Notes V2.8.txt
NETRON Firmware V2.9.2.txt
NETRON Firmware V2.9.2.zip
NETRON Release Notes V2.9.4.txt
NETRON Version 2.9.4.zip
