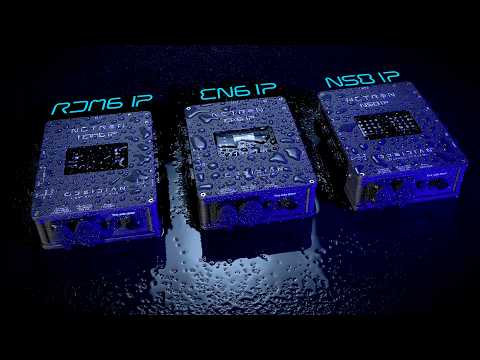

EN6 IP
The Netron EN6 IP is a powerful Ethernet to DMX gateway with six RDM compatible ports in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.
Key Features
IP66 Ethernet to DMX Gateway RDM, Artnet and sACN support Factory and user presets for plug and play setups Line Voltage or POE powered 1.8” OLED Display and waterproof touch buttons 99 Internal cues with fade and delay time Remote configuration via internal webpage Powder-coated aluminum chassis Unlocks ONYX NOVA 4-Universe License
Specifications
Standalone Truss-mount (M10 or M12) Wall-mount
Sides
(6) 5pin IP66 DMX/RDM optically isolated ports Ports are bidirectional for DMX In and Output (2) Locking IP66 RJ45 Ethernet network connections (1x POE)
Bottom
Locking IP66 Power In/Thru
Physical
Length: 204mm (8 in.) Width: 179mm (7.1 in.) Height: 61mm (2.4 in.) Weight: 2 kg (4.41 lbs) Electrical
100-240V nominal, 50/60 Hz POE 802.3af Power Consumption: 6W Approvals / Ratings
cETLus / CE / UKCA / IP66
Included Items
1.5m IP66 locking power cable (EU or US version) (2) Wall Mount brackets M10 to M12 adapter Metal display protection cover SKU
US #: NIP013 EU #: 1330000084
Resources
EN6 IP - INSTALLATION GUIDE
NETRON EN6 IP - INSTALLATION GUIDE.pdf
