EN12

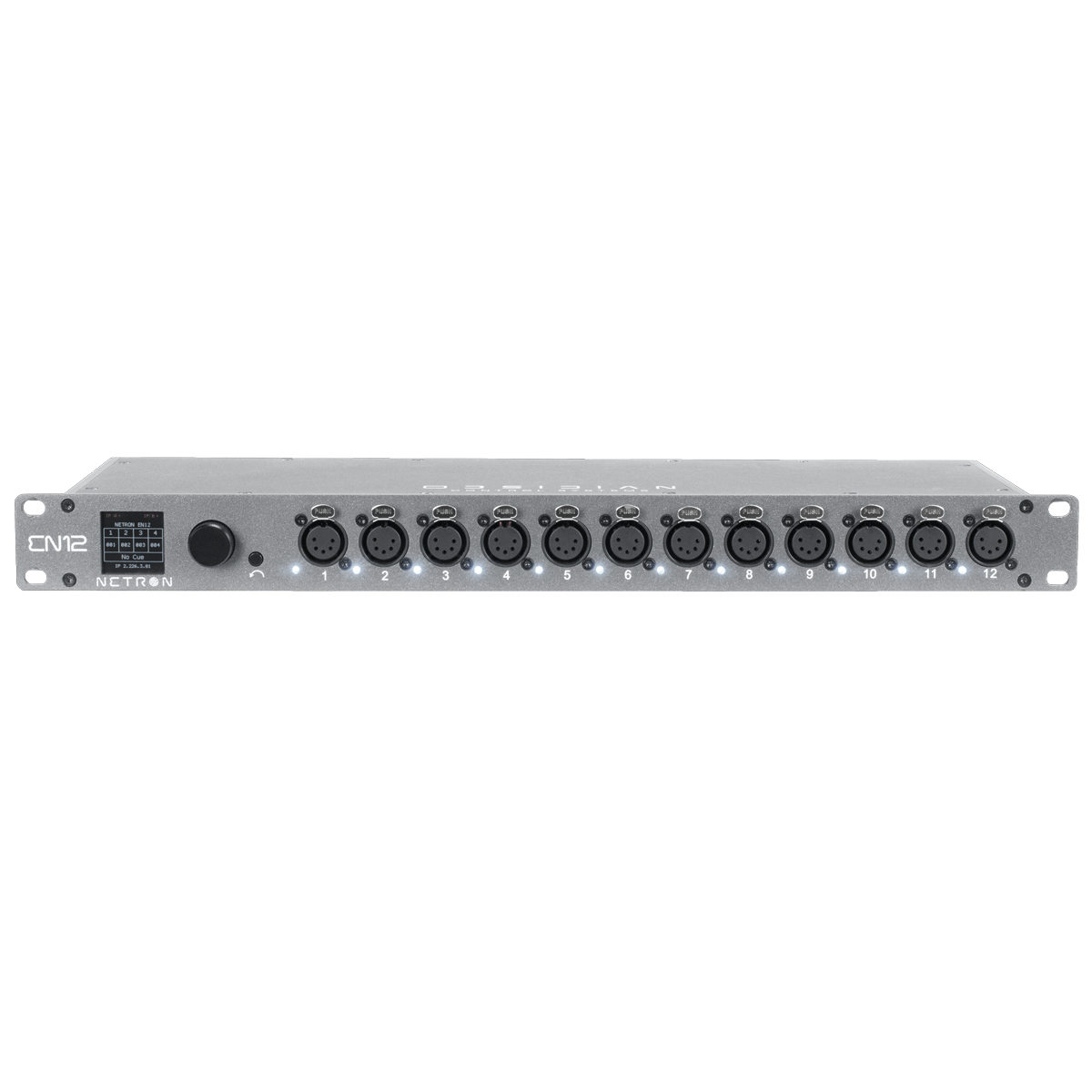

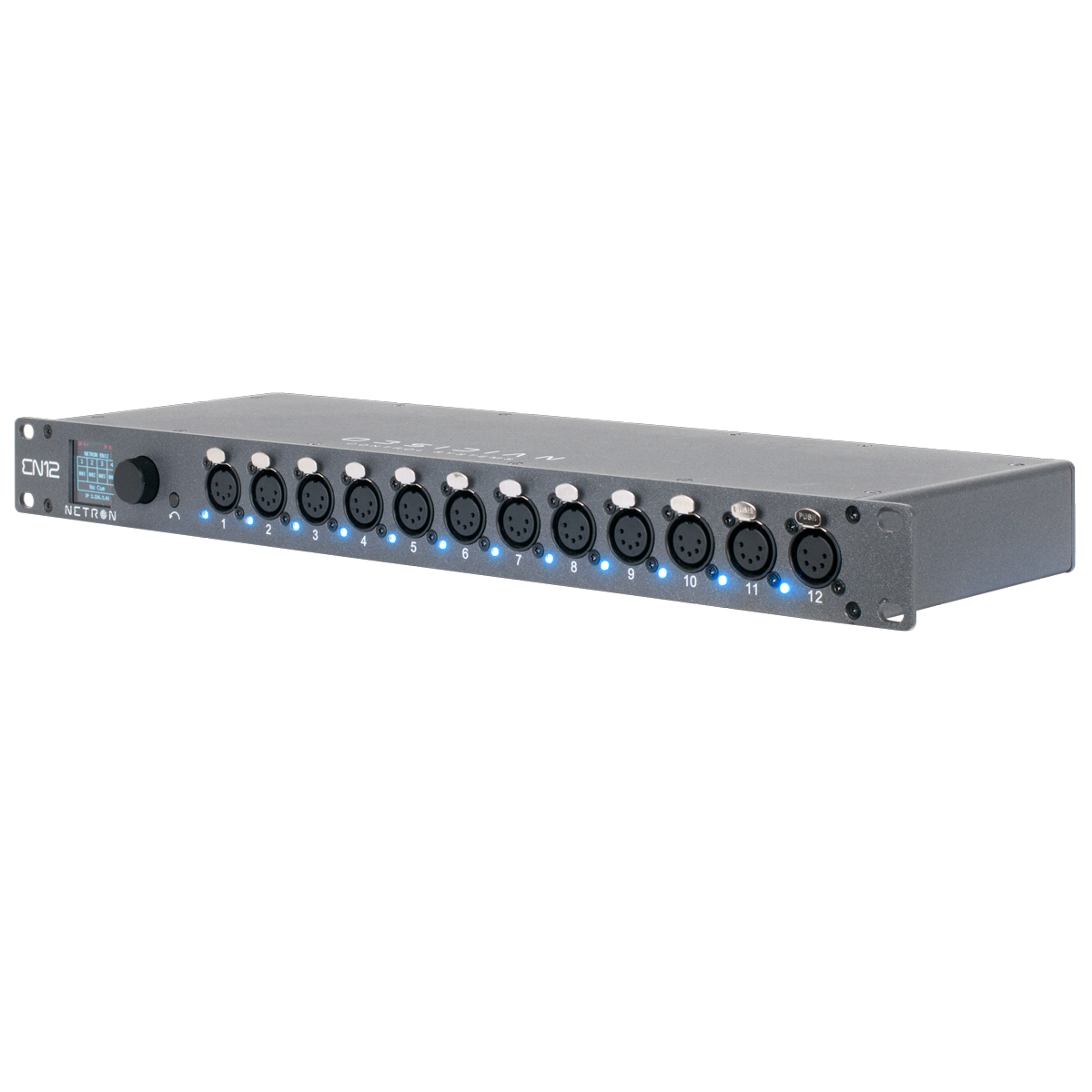

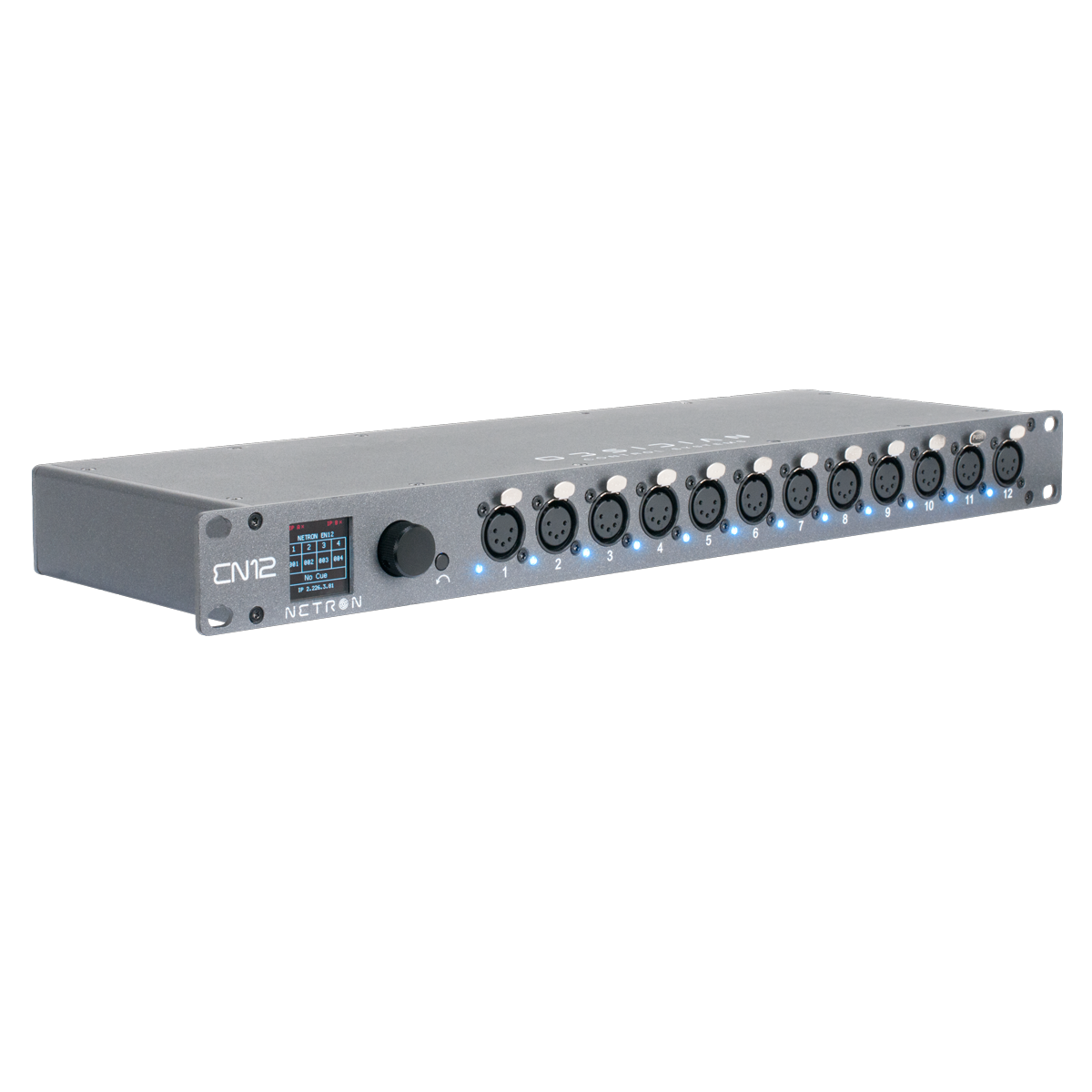

The Netron EN12 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.
EN12
Sale price$0.00
EN12
The Netron EN12 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.
Key Features
Specifications
Mounting
- Rackmount

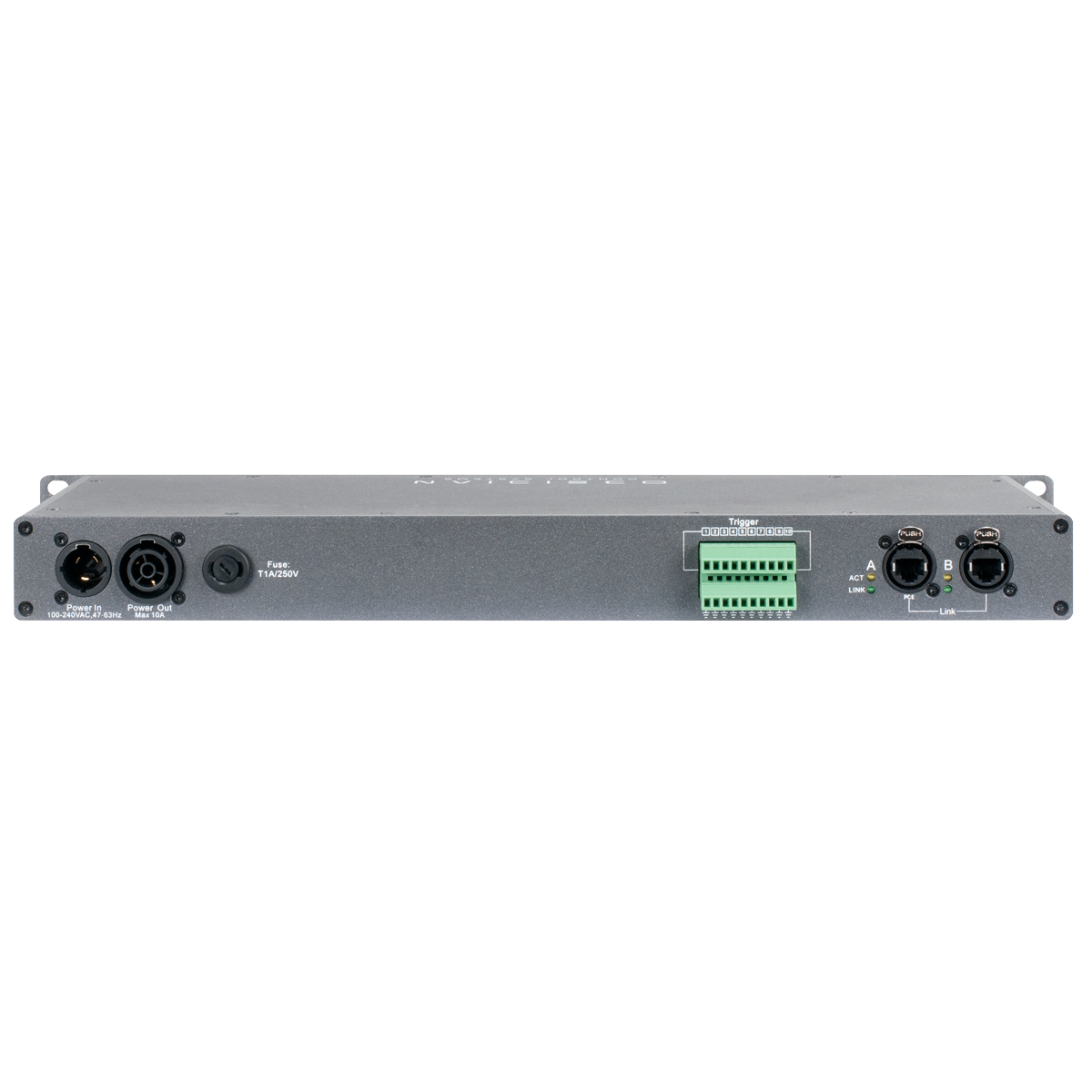

Connections
- (12) 5pin DMX/RDM ports
- Optical and galvanic isolation
- Bidirectional for DMX In and Output
- Full color OLED display
- Encoder w. Push to Select / Exit Button
- (2) Locking RJ45 Ethernet network (Low Latency Switch)
- (10) Contact Closures (2x 10pin Terminal Block)
- IP65 Locking Power In/Thru
Protocols
- sACN E1.31
- Art-Net
- DMX512-A E1.11 (In / Out)
- RDM E1.20
- Ethernet Port Speed 10/100/1000Mbps
- VLAN Group Support
- MDI / MDIX Port Sensing
- HTTP Remote Commands (Post, Get)
- HTML Web Remote
Specifications
- Length: 482.5 mm (19 in.)
- Width: 146 mm (5.7 in.)
- Height: 44 mm (1.7 in.)
- Weight: 1.82 kg (4 lbs)
- AC 100-240V nominal, 50/60 Hz
- PoE 802.3af
- Power Consumption: 9W
- cETLus / CE / FCC / IP20
Ordering
- 1.5m IP65 Locking power cable (EU or US version)
- US #: NRE001
- EU #: 1330000066
- Rackmount
- (12) 5pin DMX/RDM ports
- Optical and galvanic isolation
- Bidirectional for DMX In and Output
- Full color OLED display
- Encoder w. Push to Select / Exit Button
- (2) Locking RJ45 Ethernet network (Low Latency Switch)
- (10) Contact Closures (2x 10pin Terminal Block)
- IP65 Locking Power In/Thru
- sACN E1.31
- Art-Net
- DMX512-A E1.11 (In / Out)
- RDM E1.20
- Ethernet Port Speed 10/100/1000Mbps
- VLAN Group Support
- MDI / MDIX Port Sensing
- HTTP Remote Commands (Post, Get)
- HTML Web Remote
- Length: 482.5 mm (19 in.)
- Width: 146 mm (5.7 in.)
- Height: 44 mm (1.7 in.)
- Weight: 1.82 kg (4 lbs)
- AC 100-240V nominal, 50/60 Hz
- PoE 802.3af
- Power Consumption: 9W
- cETLus / CE / FCC / IP20
- 1.5m IP65 Locking power cable (EU or US version)
- US #: NRE001
- EU #: 1330000066
Downloads
| Filename | Document type | File type |
|---|---|---|
| EN12 Specification Sheet | Specification Sheet | |
| EN12 Installation Guide | Installation Guide | |
| Netron EN Series User Guide | User Manual |
