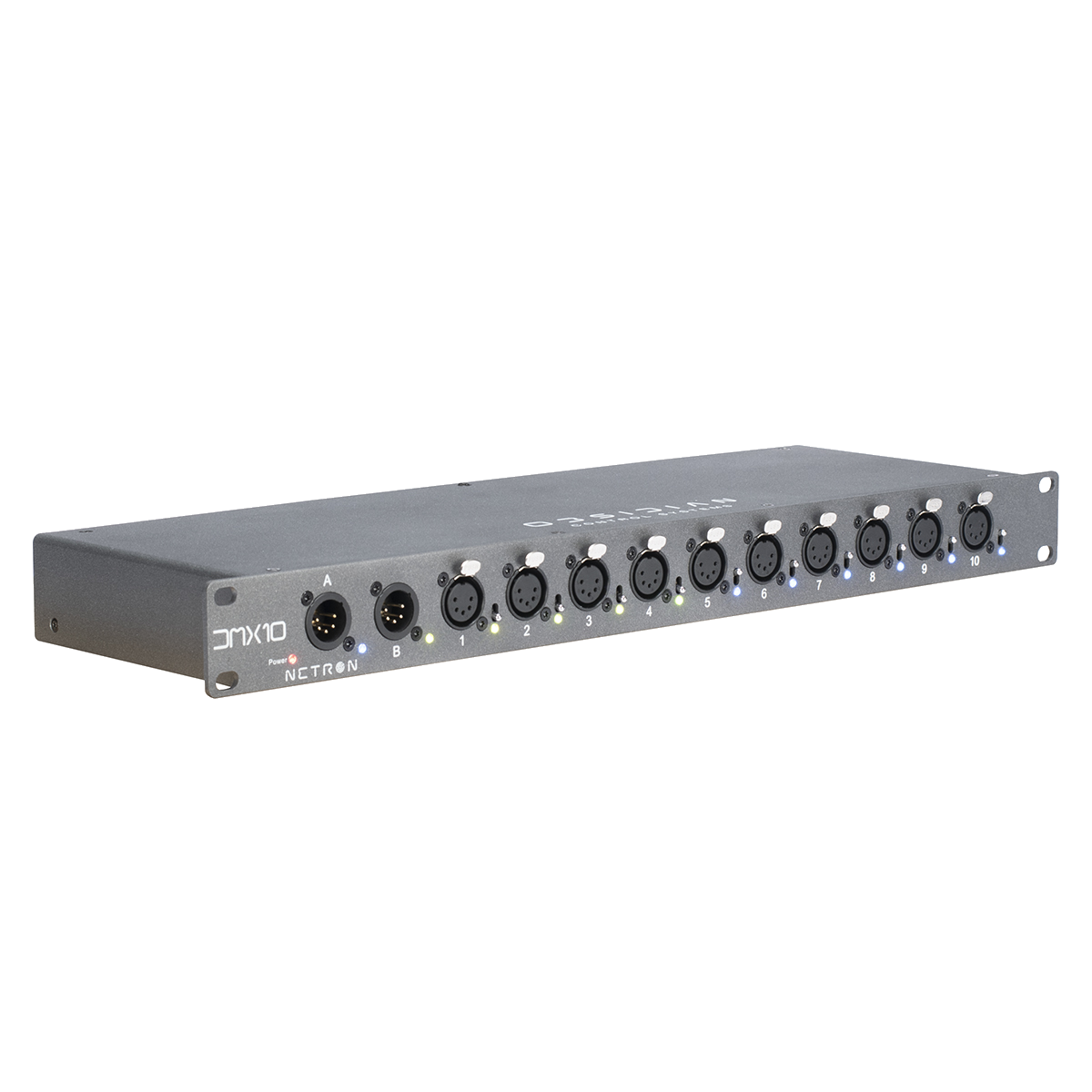

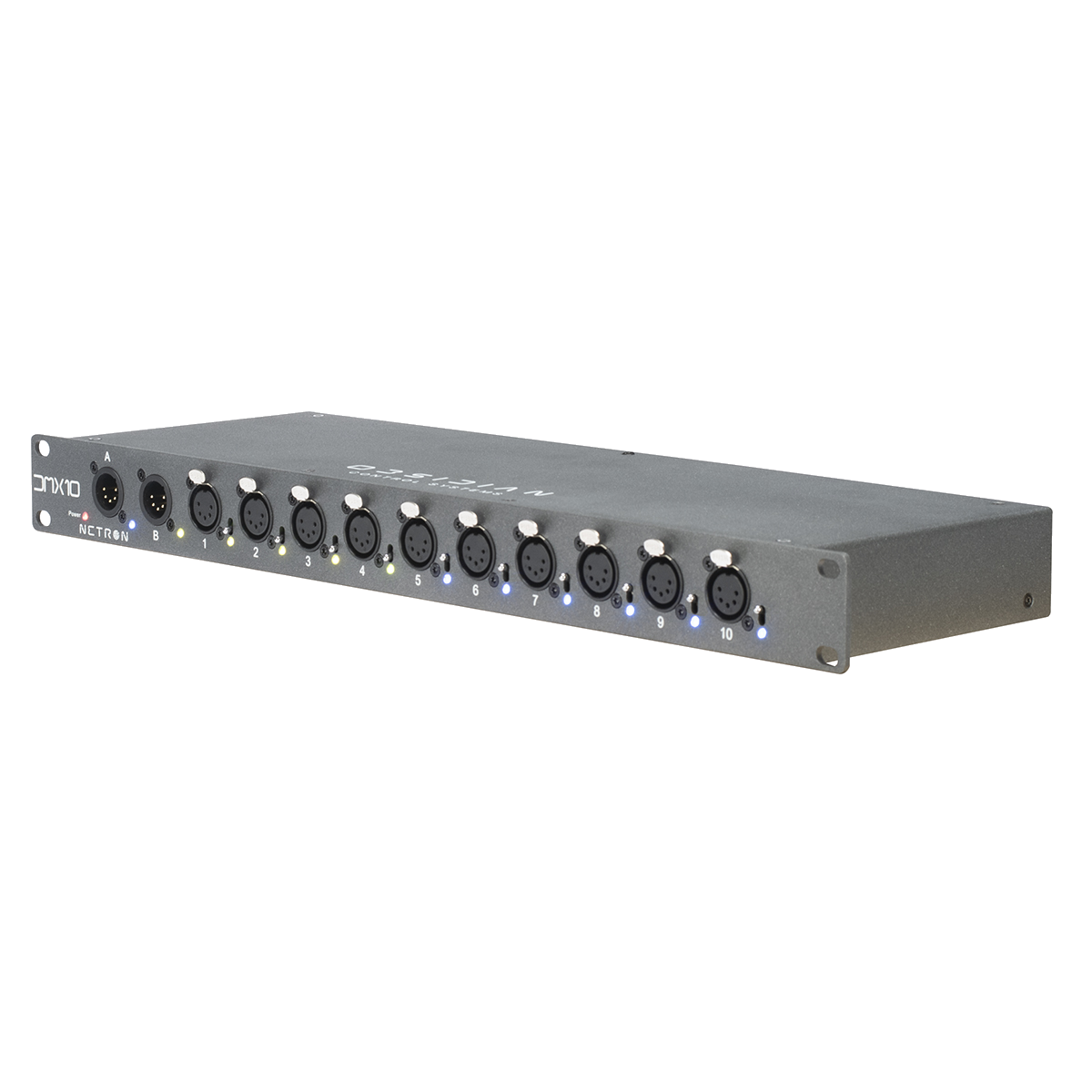

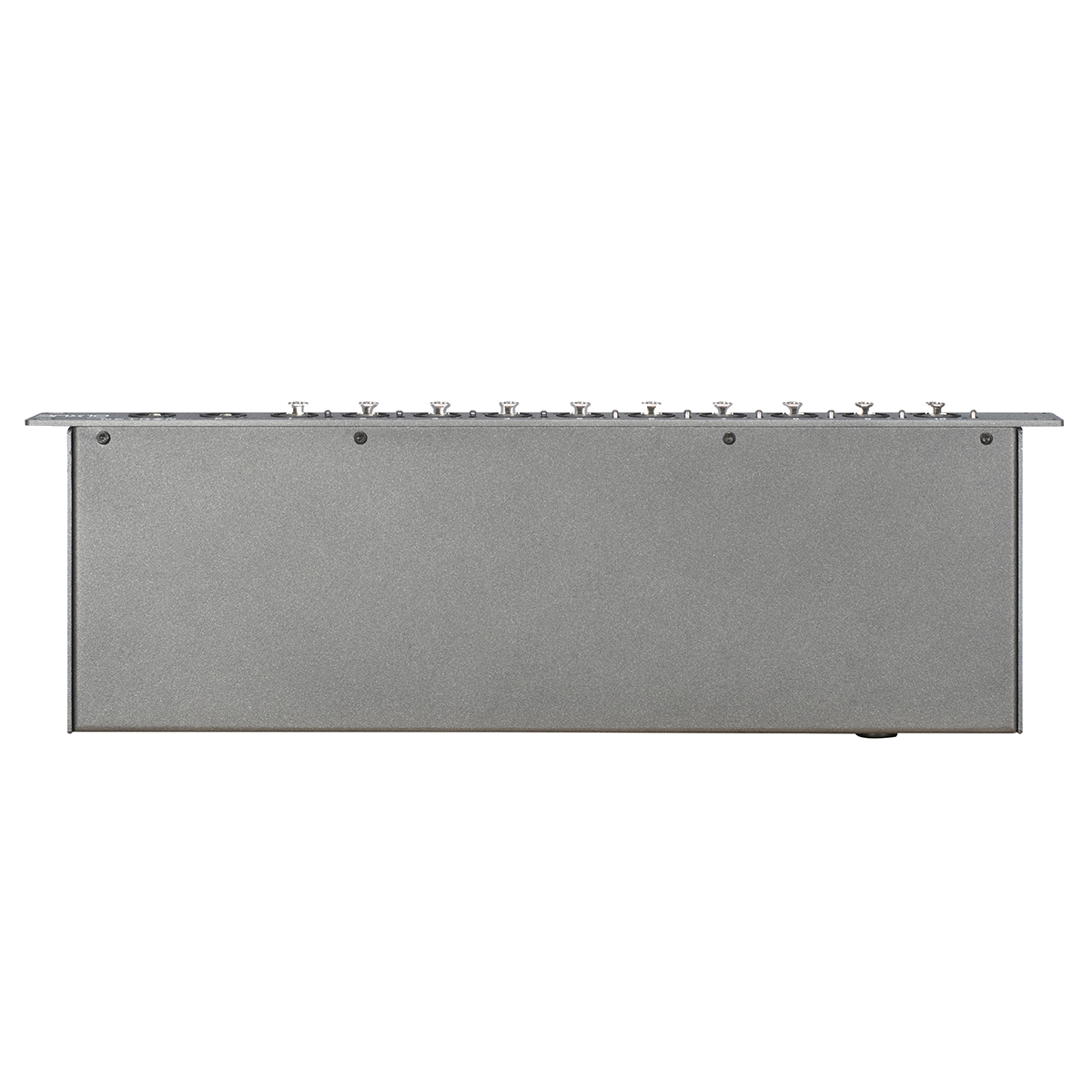

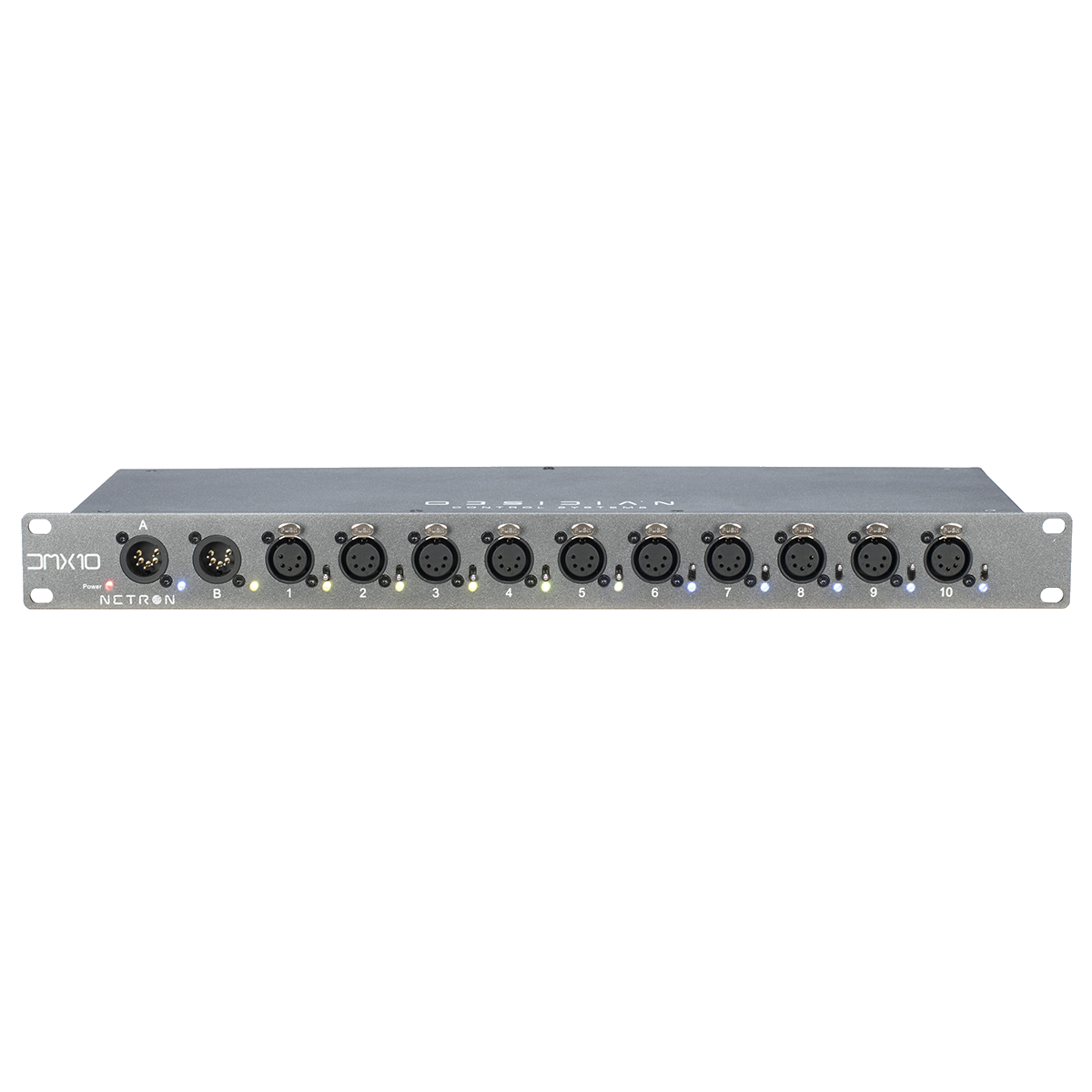

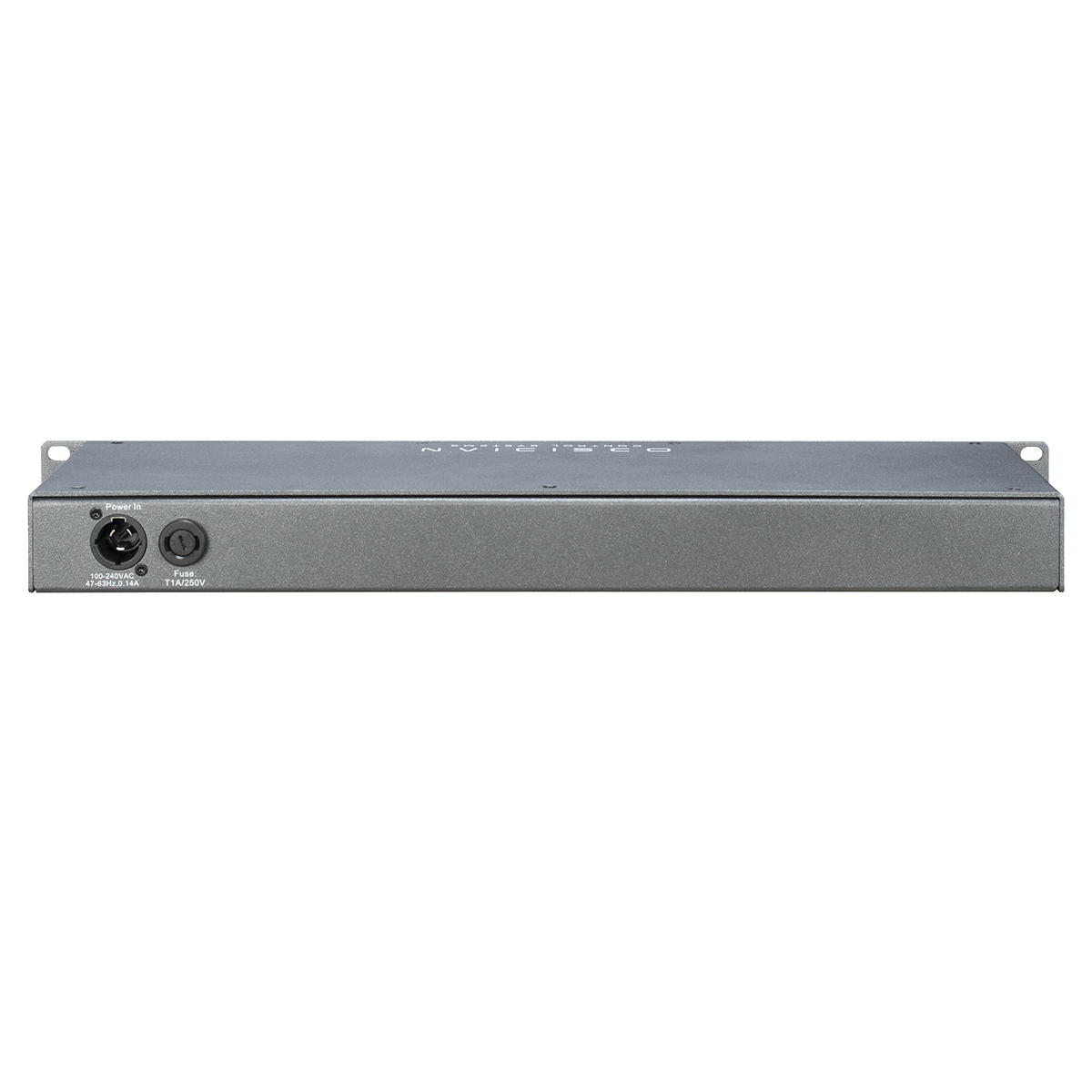

DMX 10-5
The DMX10-5 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5pin XLR DMX outputs.
Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.
The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.
Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.
The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.
DMX 10-5
Sale price$0.00
DMX 10-5
The DMX10-5 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.
Key Features
Specifications
Mounting
- Rackmount
Connections
- (2) 5pin DMX Input
- (10) 5pin Opto-Isolated DMX Outputs
- Locking Power In
Specifications
- Length: 482.0 mm (19 in.)
- Width: 155.9 mm (6.1 in.)
- Height: 44 mm (1.7 in.)
- Weight: 1.50kg ( 3.31 lbs)
- 100-240 V nominal, 50/60 Hz
- cETLus / CE / UKCA / IP20 (pending)
Ordering
- 1.5m Locking power cable (EU or US version)
- US # DMX105
- EU #: 1330000071
- Rackmount
- (2) 5pin DMX Input
- (10) 5pin Opto-Isolated DMX Outputs
- Locking Power In
- Length: 482.0 mm (19 in.)
- Width: 155.9 mm (6.1 in.)
- Height: 44 mm (1.7 in.)
- Weight: 1.50kg ( 3.31 lbs)
- 100-240 V nominal, 50/60 Hz
- cETLus / CE / UKCA / IP20 (pending)
- 1.5m Locking power cable (EU or US version)
- US # DMX105
- EU #: 1330000071
Downloads
| Filename | Document type | File type |
|---|---|---|
| NETRON DMX10 - Installation Guide | User Guide | |
| NETRON DMX10 Specification Sheet | Specification Sheet | |
| DMX10-5 Dimensional Drawing | Dimensional Drawings | |
| DMX10-5 2D Cad Drawing | CAD Drawing | DWG |
