DA2410V

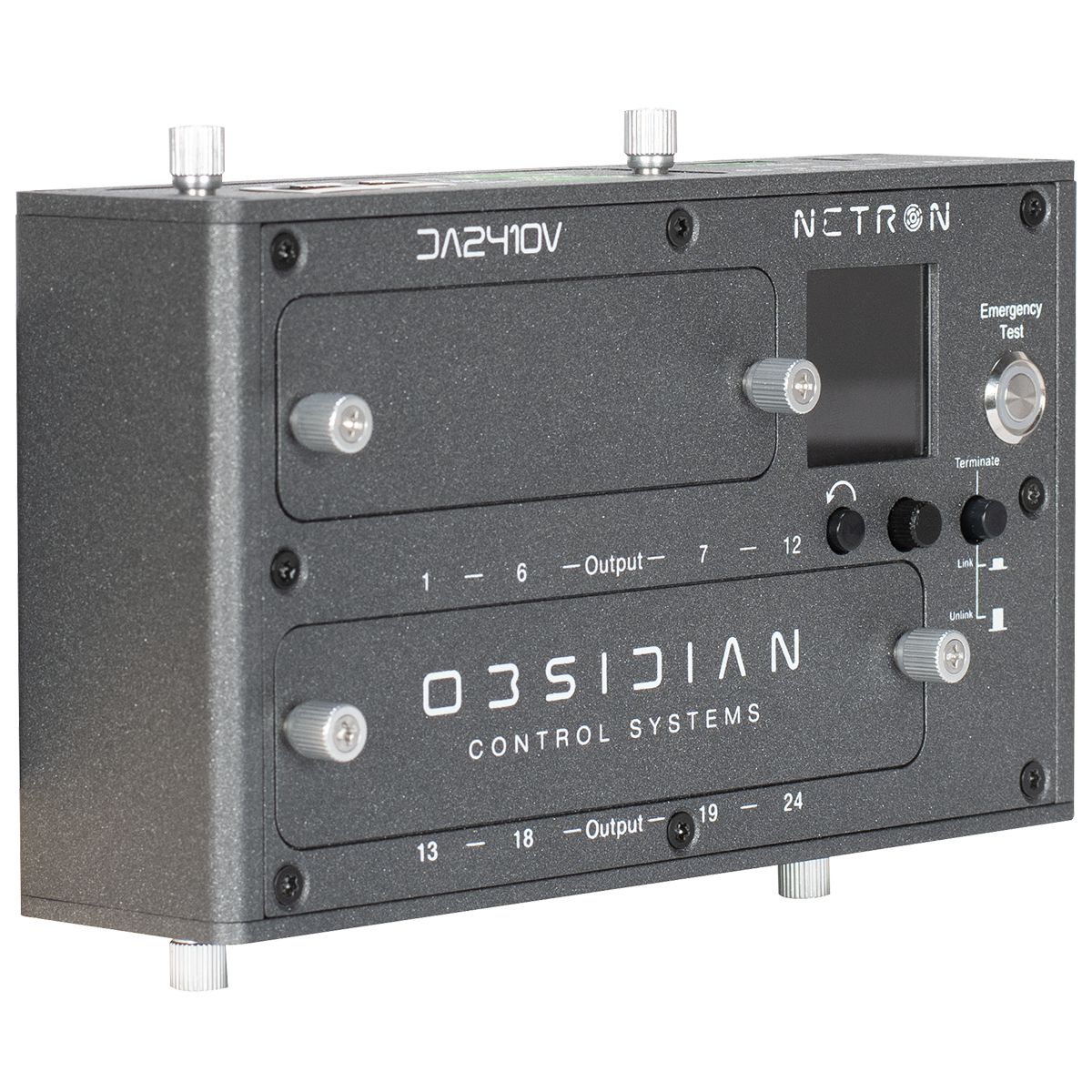

The Netron DA2410V is a compact DIN Rail or Wall Mount Ethernet or DMX gateway with 24x 0-10V analog outputs.
Easy to configure from its OLED display, it suports DMX, Art-Net or sACN as the source.

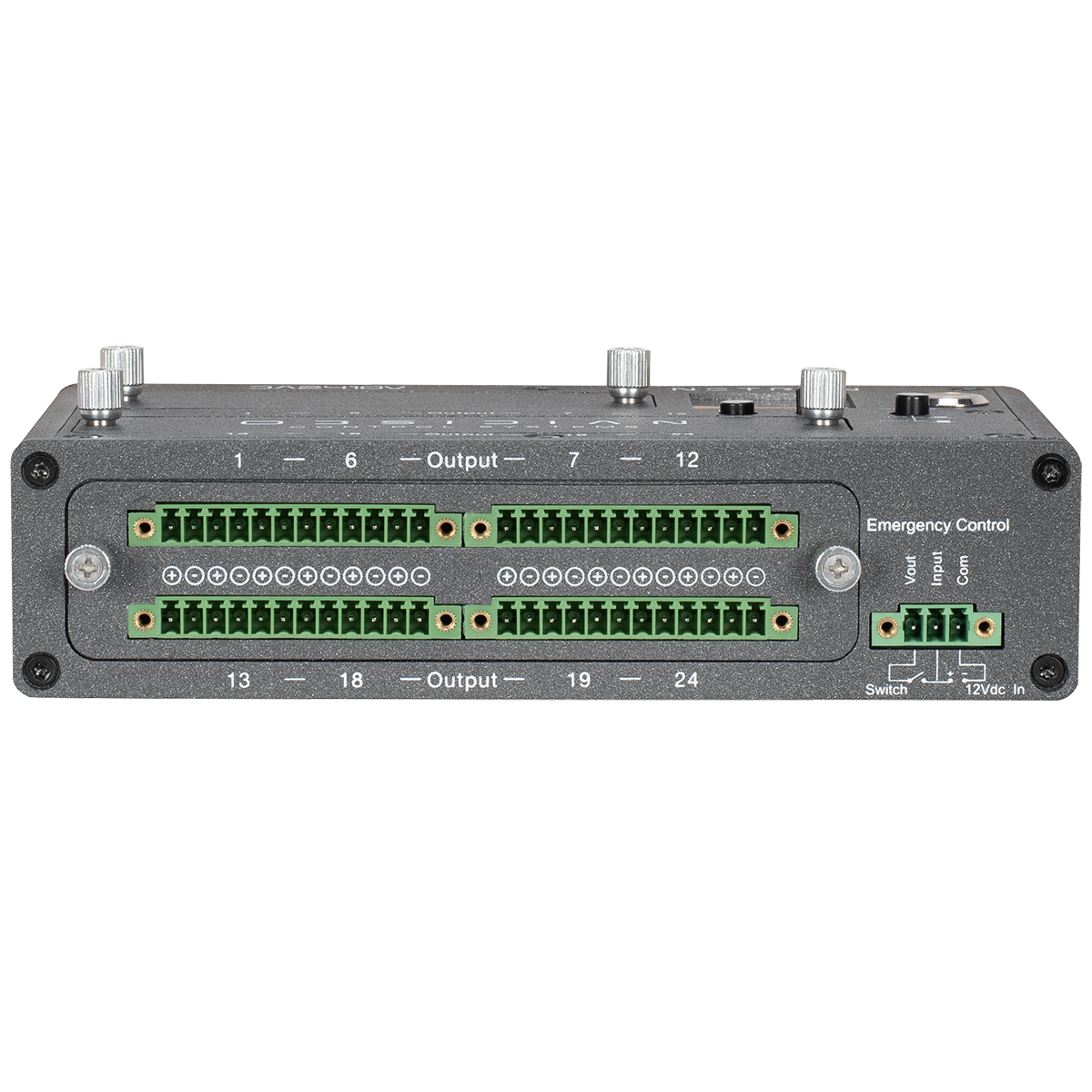

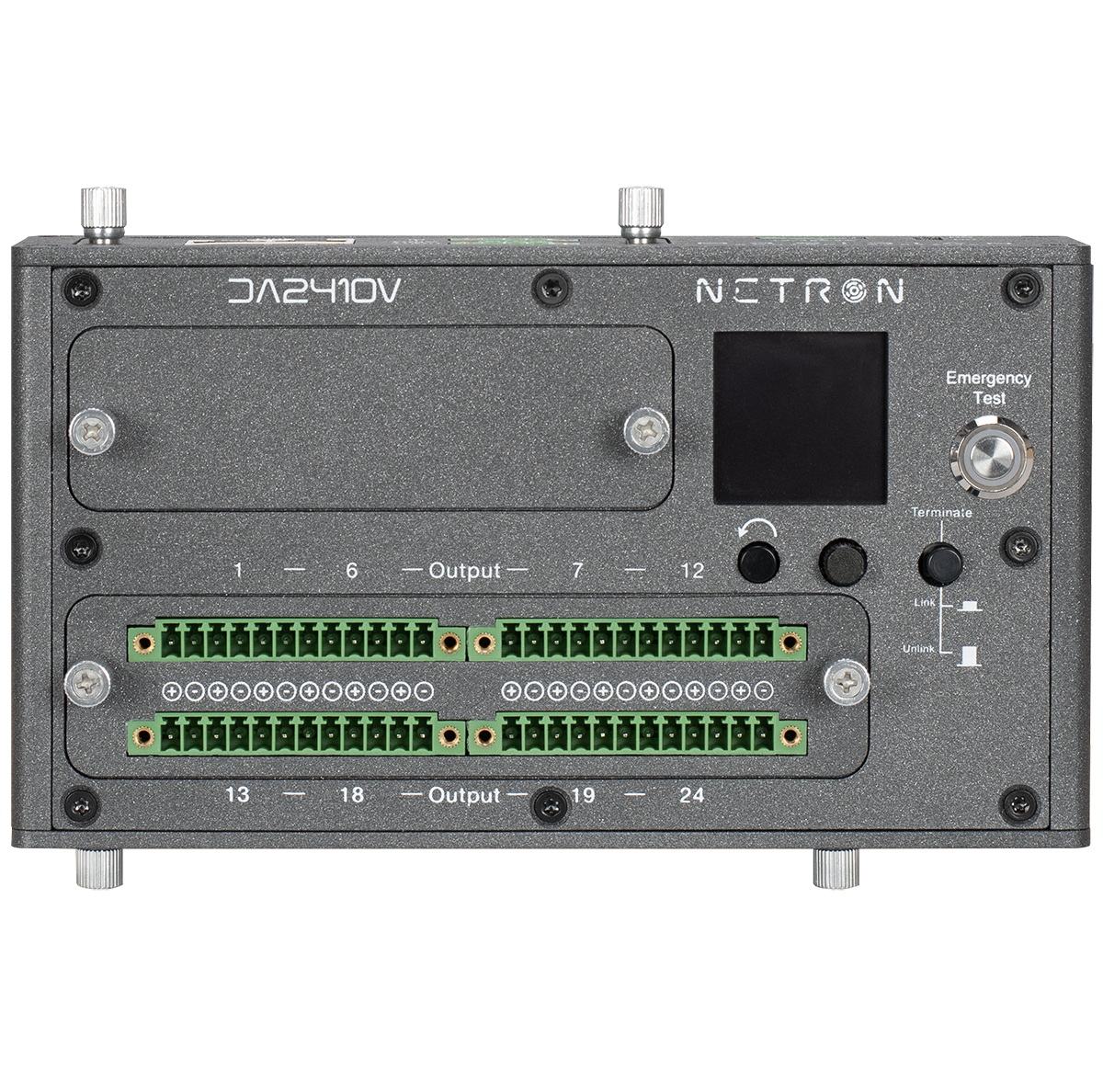

The innovate connector configurations allow the NETRON DA2410V to be configured with screw-terminals or IDC (Insulation displacement connectors). All options are included through exchangeable plates, which can be installed on the top /bottom or front of the device, depending on installer preference or space considerations.
Additionally, the DIN Rail brackets can be exchanged with wall mount brackets for an alternative mounting option.
The NETRON DA2410V supports a wide range DC Input from 12-48V.
The NETRON DA2410V is UL924 compliant with a dedicated emergency cue, wet or dry contact closure and a prominent test button with integrated LED feedback. The device allows to record a custom cue, a unique level per channel or set all analog outputs to 100%. Emergency off timeout can be customized and individual channels excluded from the emergency cue.
The innovate connector configurations allow the NETRON DA2410V to be configured with screw-terminals or IDC (Insulation displacement connectors). All options are included through exchangeable plates, which can be installed on the top /bottom or front of the device, depending on installer preference or space considerations.
Additionally, the DIN Rail brackets can be exchanged with wall mount brackets for an alternative mounting option.
The NETRON DA2410V supports a wide range DC Input from 12-48V.
The NETRON DA2410V is UL924 compliant with a dedicated emergency cue, wet or dry contact closure and a prominent test button with integrated LED feedback. The device allows to record a custom cue, a unique level per channel or set all analog outputs to 100%. Emergency off timeout can be customized and individual channels excluded from the emergency cue.
DA2410V
Sale price$0.00
DA2410V
24x 0-10V 40mA Sink Outputs
Screw terminal or IDC connectivity
Configurable Top, Bottom and Front ports
DMX, RDM, Artnet and sACN support
Factory and user presets for plug and play setup
12-48V DC power

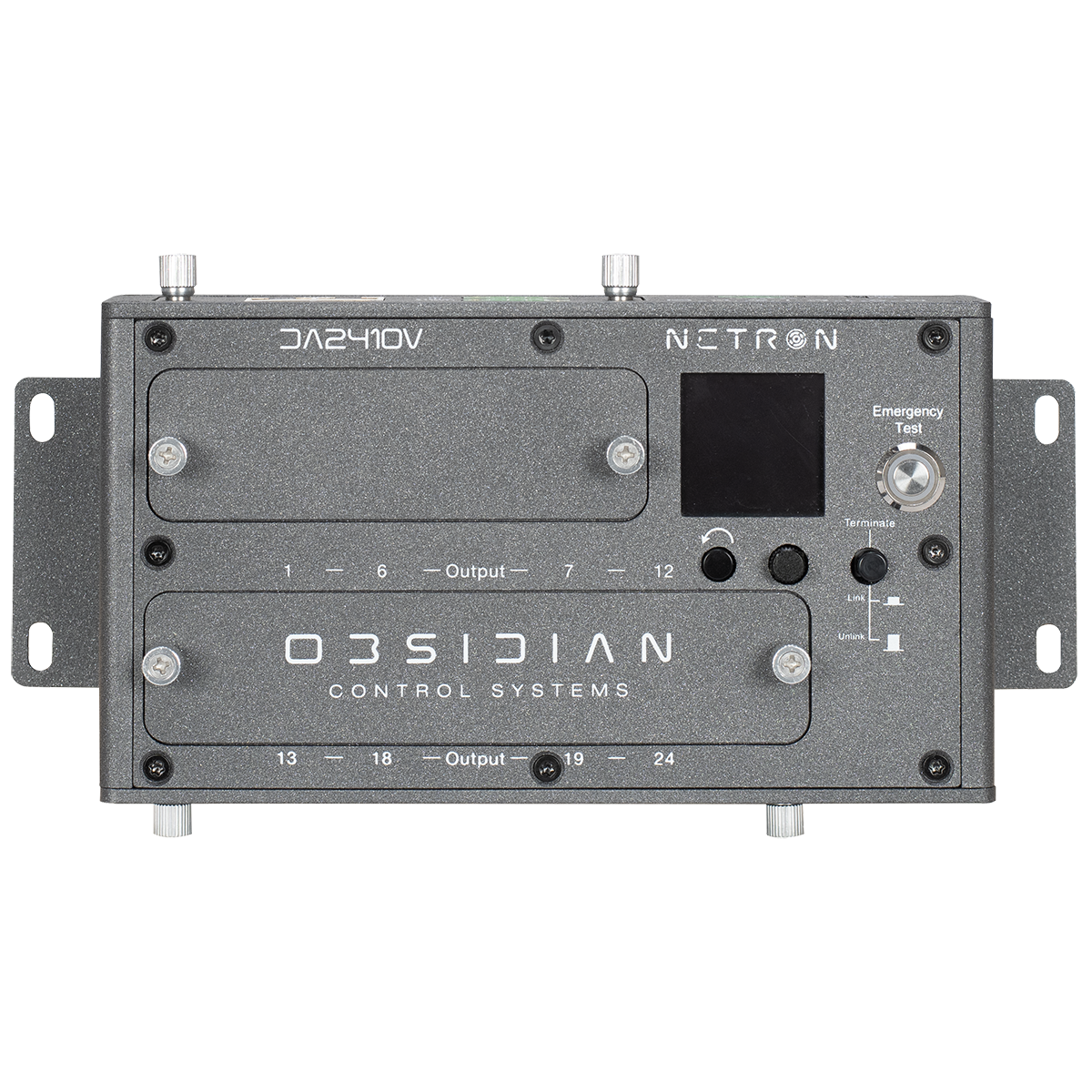

1.3” OLED Display with rotary knob
99 Internal cues with fade and delay time
Emergency Cue System with test button and contact closure
Remote configuration via internal webpage
Powder-coated aluminum DIN Rail housing
For technical details and documentation of NETRON devices please visit
Key Features
Specifications
Mounting
- DIN Rail
- Wall-mount
Connections
- Full color 1.3" OLED display
- Encoder w. Push to Select / Exit Button
- 24-port Analog connection (Terminal Block) or Cover Plate

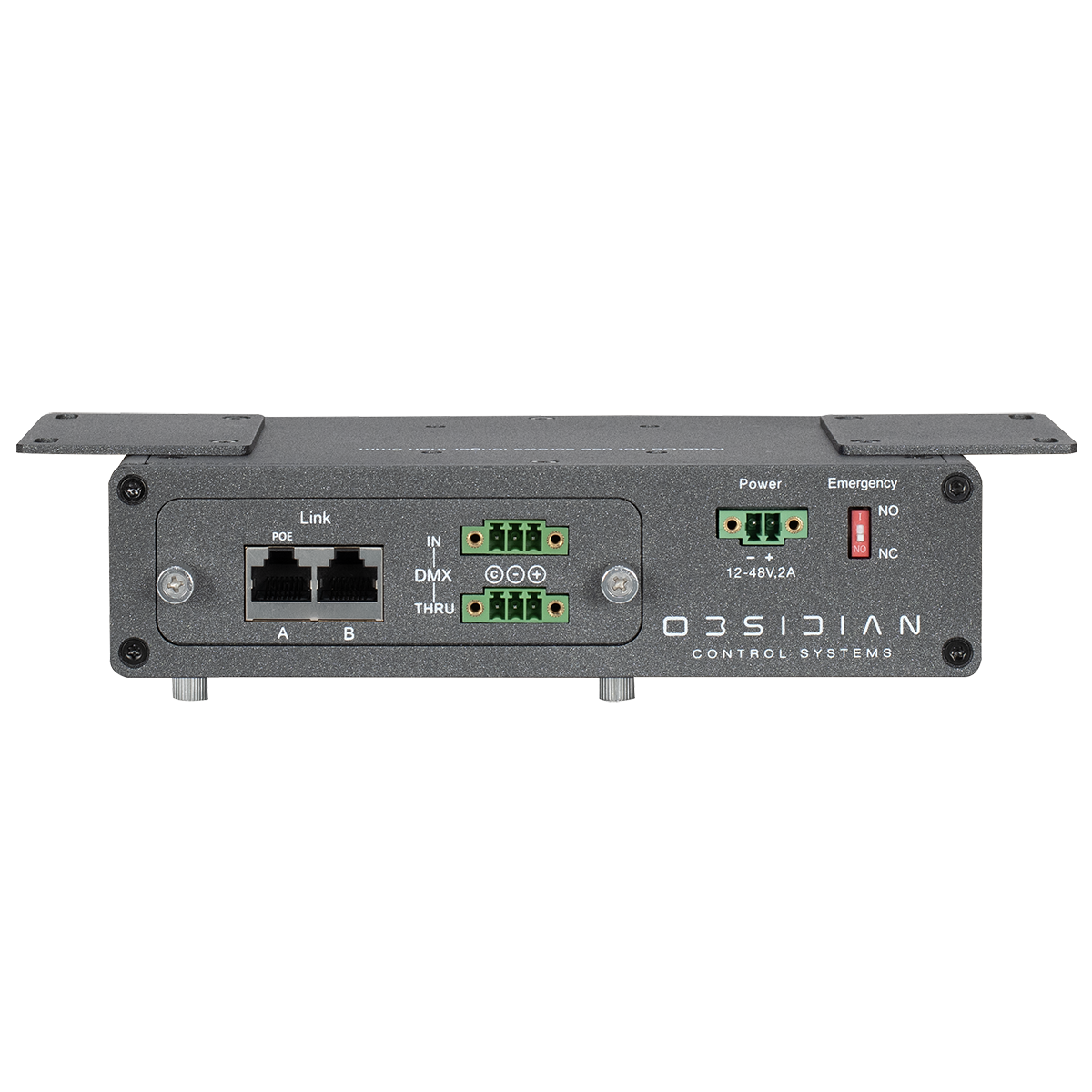

- (2) RJ45 Gigabit Ethernet (1x POE) + DMX In/Thru or Cover Plate
- (2) RJ45 Gigabit Ethernet (1x POE) + DMX In/Thru or Cover Plate
- DC In (2pin Terminal Block)
- 24-port Analog connection (Terminal Block) or Cover Plate

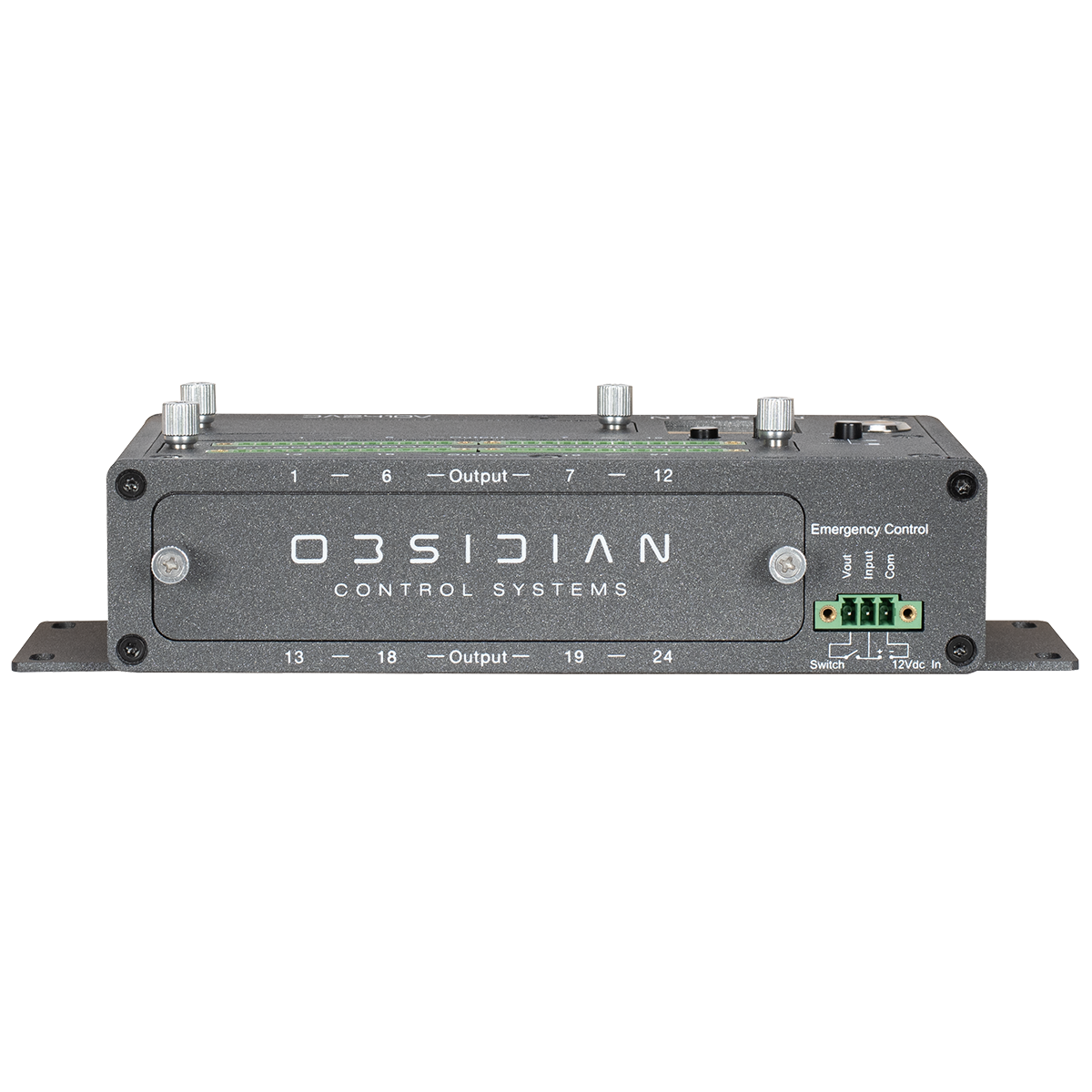

- Emergency Contact (3pin Terminal Block, Dry Contact or 12V)
- Insulation Displacement Connector (IDC) with locking screws, 20-22 AWG
- Terminal Wire Connector with locking screws, 20-22 AWG
Protocols
- 0-10V Sink
- sACN E1.31
- Art-Net
- DMX512-A E1.11
- RDM E1.20
Specifications
- Length: 116 mm (4.7 in.)
- Width: 143mm (5.6 in.)
- Height: 52 mm (2.1 in.)
- Weight: 0.8 kg (1.8 lbs.)
- Maximum Operating Temperature 40C
- 12-48V DC
- POE 802.3af
- Power Consumption: 2.5W
- cETLus / CE / UKCA / FCC / IP20 / UL924
Ordering

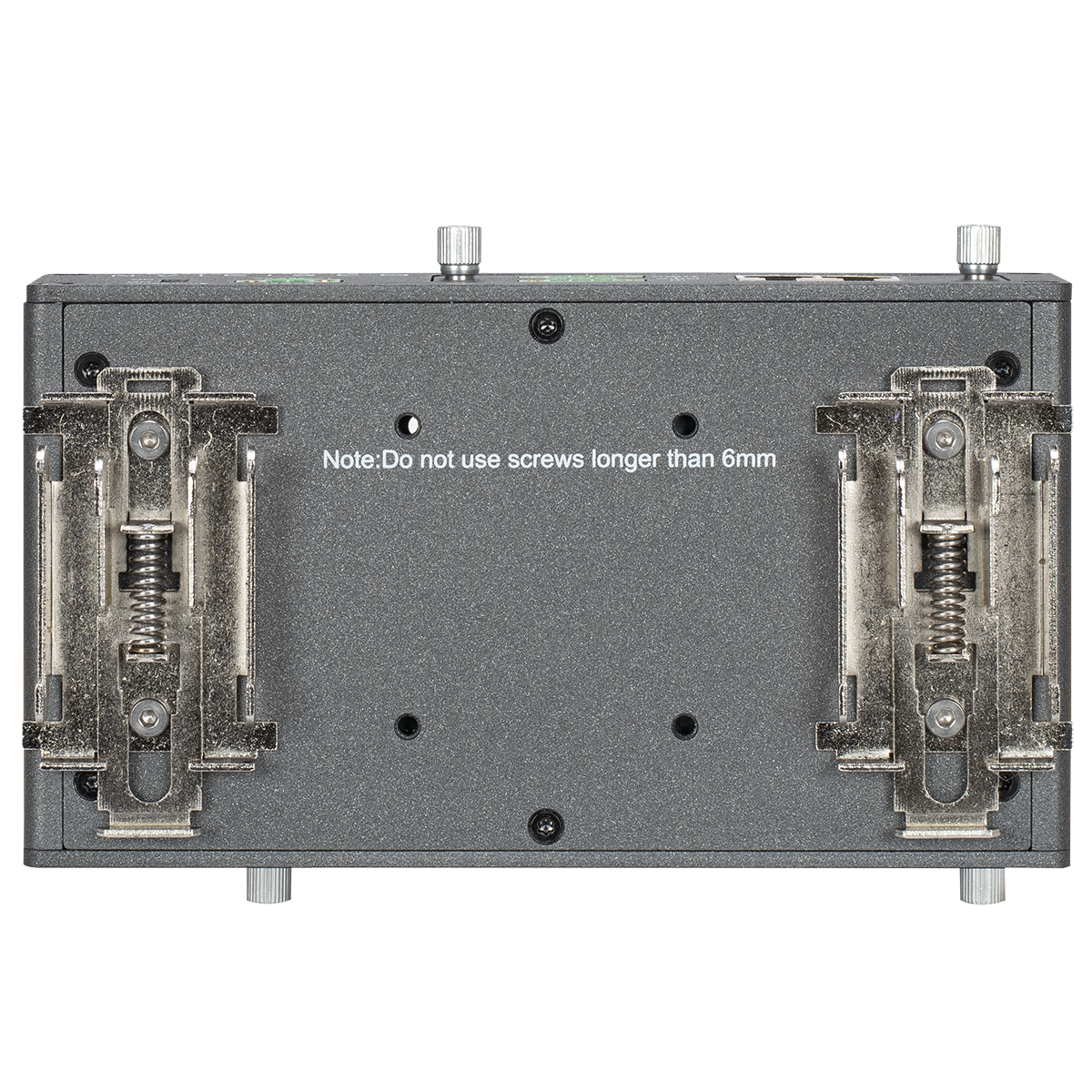

- (2) DIN Rail clamps

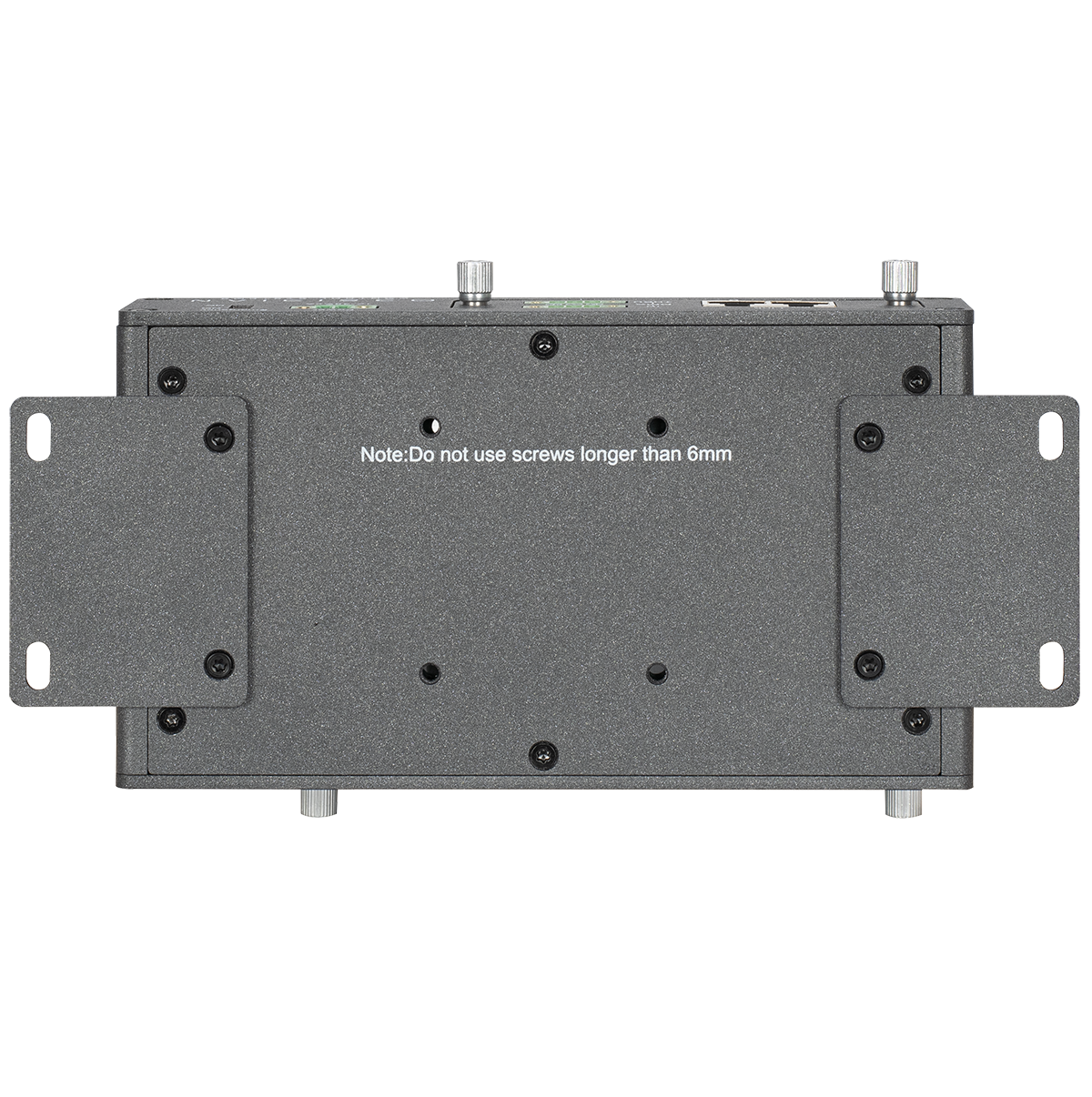

- (2) Wall mount plates
- 24-port Terminal Block Connection plate

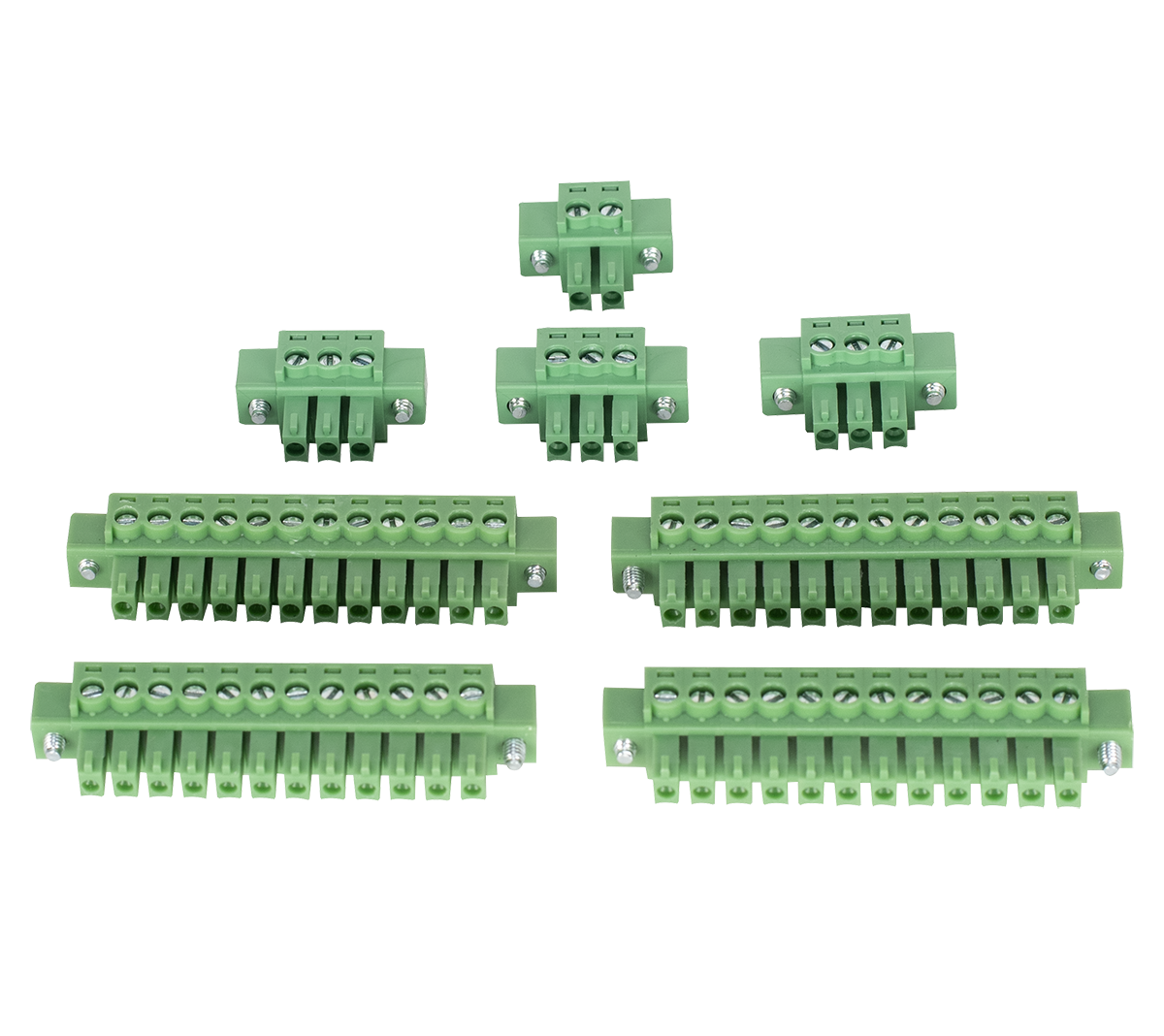

- (3) Screw Terminal with security screws
- (3) IDC Terminal with security screws
- (4) IDC 12 port connector with security screws
- US #: NDR241
- EU#: 1330000096
- DIN Rail
- Wall-mount
- Full color 1.3" OLED display
- Encoder w. Push to Select / Exit Button
- 24-port Analog connection (Terminal Block) or Cover Plate
- (2) RJ45 Gigabit Ethernet (1x POE) + DMX In/Thru or Cover Plate
- (2) RJ45 Gigabit Ethernet (1x POE) + DMX In/Thru or Cover Plate
- DC In (2pin Terminal Block)
- 24-port Analog connection (Terminal Block) or Cover Plate
- Emergency Contact (3pin Terminal Block, Dry Contact or 12V)
- Insulation Displacement Connector (IDC) with locking screws, 20-22 AWG
- Terminal Wire Connector with locking screws, 20-22 AWG
- 0-10V Sink
- sACN E1.31
- Art-Net
- DMX512-A E1.11
- RDM E1.20
- Length: 116 mm (4.7 in.)
- Width: 143mm (5.6 in.)
- Height: 52 mm (2.1 in.)
- Weight: 0.8 kg (1.8 lbs.)
- Maximum Operating Temperature 40C
- 12-48V DC
- POE 802.3af
- Power Consumption: 2.5W
- cETLus / CE / UKCA / FCC / IP20 / UL924
- (2) DIN Rail clamps
- (2) Wall mount plates
- 24-port Terminal Block Connection plate
- (3) Screw Terminal with security screws
- (3) IDC Terminal with security screws
- (4) IDC 12 port connector with security screws
- US #: NDR241
- EU#: 1330000096
Downloads
| Filename | Document type | File type |
|---|---|---|
| DA2410V 2D Cad | CAD Drawing | DWG |
| DA2410V User Manual | User Manual | |
| DA2410V Dimensional Drawing | Dimensional Drawings | |
| DA2410V 3D Cad | CAD Drawing | DWG |
| DA2410V - Specification Sheet | Specification Sheet |
